SKU: N/A Categories: Optics, Rifle Scopes, Vortex Promo Tags: 22x, 4.5 x, First Focal Plane, Red, Vortex

Vortex Razor HD LHT 4.5-22×50 Scope

Name: Vortex Razor HD LHT 4.5-22x50 Scope - Multiple Options
SKU: 871847
Price: 1499.99 USD
Availability: InStock

The Vortex Razor HD LHT 4.5-22×50 was designed with western hunting in mind. It features the core of the Razor HD LHT including a stunning HD optical system and rugged build in a hunting scope that’s among the lightest in its class. The Razor HD LHT 4.5-22×50 distances itself by offering more magnification, and a first focal plane reticle featuring the XLR-2 reticle system. The XLR-2 is intuitive, easy to use, and illuminated. It also features RevStop Zero System for a reliable return to zero after dialing in the field, and a locking elevation turret keeps your zero safe.

Vortex Razor HD LHT 4.5-22×50 Scope Features

First Focal Plane Reticle

The first focal plane XLR-2 reticle is optimized for long range hunting and shooting. The scale of the reticle remains in proportion to the zoomed image making for accurate holdovers and ranging at all magnifications.

HD Optical System

Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge to edge sharpness and light transmission.

Locking Elevation Turret

Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending.

RevStop Zero System

Patented streamlined design offers an easy to set, rock solid return to zero after turret adjustments.

XR Plus Fully Multi-Coated

Ultimate anti-reflective coatings on all air to glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low light performance.

APO System

Index matched lenses correct color across the entire visual spectrum.

Single Piece Tube

Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.

Aircraft Grade Aluminum

Constructed from a solid block of aircraft grade aluminum for strength and rigidity.

ArmorTek

Ultra hard, scratch resistant coating protects exterior lenses from scratches, oil and dirt.

Waterproof

O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

Shockproof

Rugged construction withstands recoil and impact.

Fogproof

Argon gas purging prevents internal fogging over a wide range of temperatures.

Low Glare Matte Black Anodized

Corrosion and wear resistant anodization provides low glare matte surface and helps camouflage the shooter’s position.

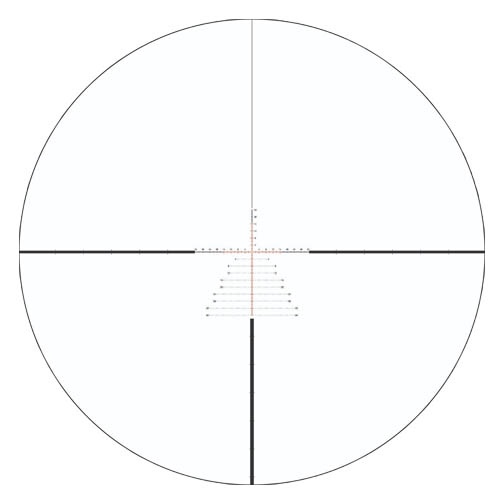

XLR-2 (MOA) Reticle

The XLR-2 reticle is an illuminated, long range reticle with elevation and windage reference subtensions. Great for long range shooters and hunters who prefer to hold for bullet drop and wind at distance.

Subtension detail for Razor HD LHT 4.5-22×50 FFP riflescope with XLR-2 MOA reticle.

Reticle Manual

Product Manual

Specifications
Magnification	4.5-22x
Objective Lens Diameter	50 mm
Eye Relief	4.0 inches
Field of View	23.5-4.7 ft/100yds
Tube Size	30 mm
Elevation Turret Style	Locking – Exposed
Windage Turret Style	Capped
Elevation Adjustment Graduation	1/4 MOA
Windage Adjustment Graduation	1/4 MOA
Elevation Travel Per Rotation	15 MOA
Windage Travel Per Rotation	15 MOA
Max Elevation Adjustment	75 MOA
Max Windage Adjustment	45 MOA
Parallax Setting	25 yards to infinity
Length	13.3 inches
Weight	21.7 oz
