Vortex Razor HD 13-39×56 Angled Spotting Scope & Radian Carbon Fiber Tripod + Ball Head Bundle

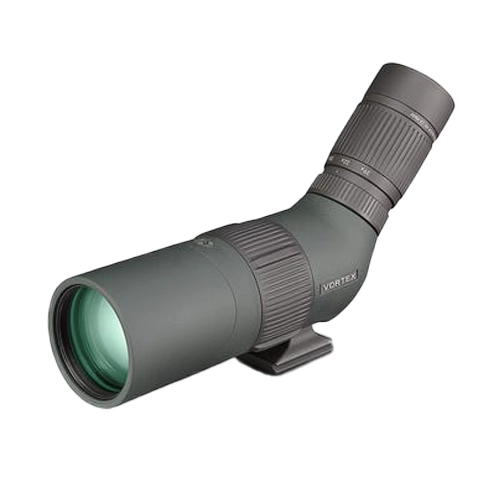

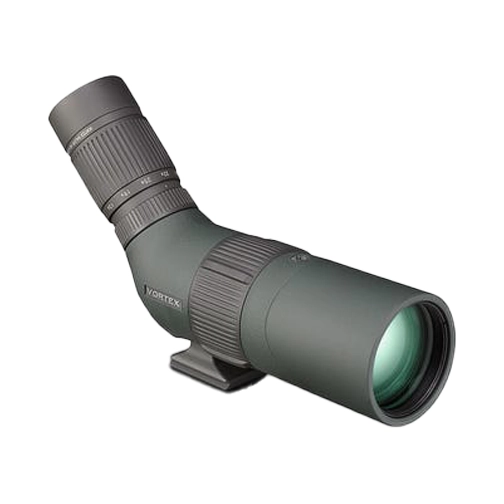

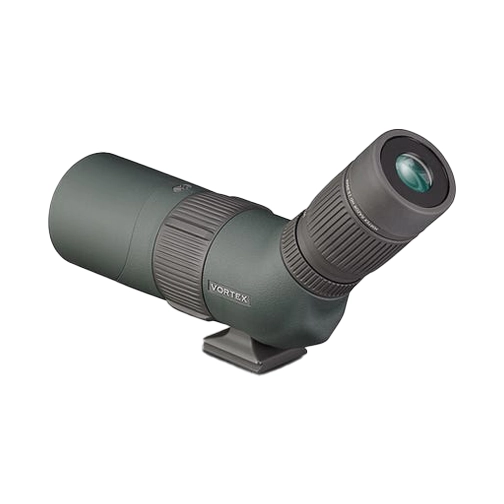

Vortex Razor HD 13-39×56 Angled Spotting Scope
The Vortex Razor HD 13-39×56 Angled Spotting Scope was built to seamlessly fit the packs of today’s weight wary, backcountry hunters. It perfectly balances premium optics and an incredibly compact package.
Vortex Razor HD 13-39×56 Features
HD Optical System
Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration, and provide outstanding color fidelity, edge-to-edge sharpness, and light transmission.
XR Plus Lens Coatings
Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance.
Dielectric Prism Coatings
Multi-layer prism coatings provide bright, clear, color-accurate images.
Phase Correction
Coating on roof prism enhances resolution and contrast.
Apochromatic
Index-matched lenses correct color across the entire visual spectrum
Armortek
Ultra-hard exterior lens coatings defend against scratches, oil, and dirt.
Helical Focus
Focus mechanism type
Rubber Armor
Provides a secure, non-slip grip, and durable external protection.
Plasma Tech
Cutting edge application process provides unparalleled coating durability and performance.
Argon Gas Purged
Gas purged and O-ring sealed for superior fogproof and waterproof performance in the most extreme conditions.
Waterproof
Designed to withstand harsh weather conditions.
Fogproof
Designed to withstand a wide range of temperatures.
Shockproof
Designed to withstand impact.
Tripod Adaptable
Allowing use on a tripod or car window mount. Arca-Swiss compatible.
Included in the Box
Lens covers
Neoprene case
Lens Cloth
Specifications |
||||||
Magnification | 13-39x | |||||
---|---|---|---|---|---|---|
Objective Lens Diameter | 56 mm | |||||
Linear Field of View | 168′ – 89′ | |||||
Angular Field of View | 3.2° – 1.7° | |||||
Eye Relief | 15.0mm – 17.8mm | |||||
Length | 10.4″ | |||||
Weight | 28.6 oz. | |||||
Close Focus | 9.2′ |
Vortex Radian Carbon Tripod Kit
The Vortex Radian Carbon Tripod Kit features a carbon fiber tripod and a ball head, head style. It anchors your precision rifle and your long range glass with an incredible strength to weight ratio. The Tripod kit has a max load of 55 lbs with the Ball Head and 44 lbs with the leveling head. This makes it perfect for large binoculars, spotting scopes and rifles. The carbon fiber leg construction is the perfect combination of strength and lightweight build. The fours legs of the tripod extend for a maximum height of 67.3 inches for the Ball Head and 64.3 inches for the leveling head, and have a 3 angle pivot lock that allows the user to position each leg for a secure set up.
Vortex Radian Carbon Tripod and Ball Head Features
Max Load
55 lbs for the Ball Head
44 lbs for the Leveling Head
Perfect for large binoculars, spotting scopes and rifles.
Carbon Fiber Leg Construction
Perfect combination of strength and lightweight build.
Arca Swiss Head Mount
Compatibility across a broad range of mounting options.
Four Leg Sections
Extend for maximum height.
3 Angle Leg Pivot Locks
Position each leg individually for multiple heights and easy, secure set up.
Counterweight Hook
Holds extra weight on the bottom of the center column for greater stability in windy conditions.
Twist Leg Locks
Valued for rapid adjustment of leg height and reduced bulk.
Rubber Feet
Provide solid footing on slick surfaces.
Spiked
Feet Included spiked feet ensure a non-slip grip.
Included in the Box
Ball Head or Leveling Head
Detachable Counterweight Hook
Stainless Steel Spiked Feet
Multi-tool
Carry Case
Quick-Release Plate with 1/4″-20 Thread
5mm Hex Wrench
4mm Hex Wrench
3mm Hex Wrench
Specifications |
||||||
Head Style | Ball | |||||
Weight | 7.3 pounds | |||||
Max Load | 55 pounds | |||||
Min Height | 8.3 inches | |||||
Max Height | 67.3 inches | |||||
Folded Dimensions (HxW) | 28.0 x 6.0 | |||||
Leg Material | Carbon Fiber | |||||
Leg Sections | 4 | |||||
Leg Angles | 3 | |||||
Leg Locks | Twist | |||||
Head Mount | Arca Swiss |
