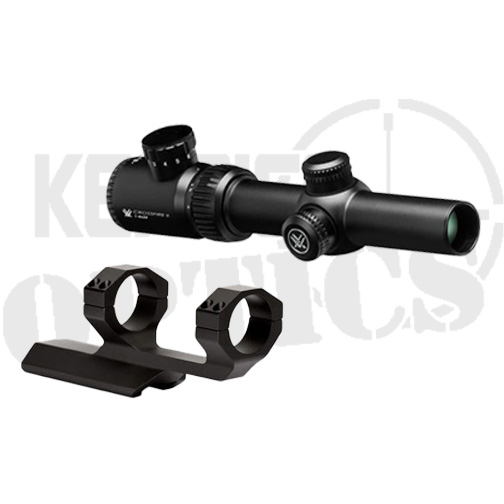

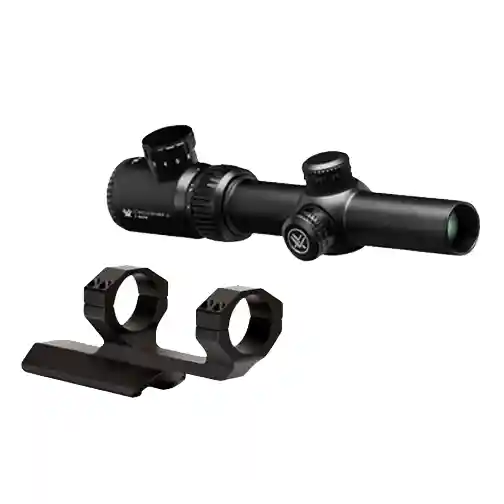

Vortex Crossfire II 1-4x24mm Scope w/ V-Brite Reticle & Cantilever Scope Mount-30mm w/ 2 Inch Offset Bundle
Vortex Crossfire II 1-4x24mm Scope
The Vortex Crossfire II 1-4x24mm features a 30mm diameter,4x zoom, and a versatile top end magnification making it the perfect choice for rifle topping tasks. It has a clear fully multi coated optic, a superior aluminum build with a hard anodized finish. The scope is waterproof, fog proof, and shockproof, for use in all conditions.
Crossfire II 1-4x24mm Features
Fully Multi-Coated
Second Focal Plane Reticle
30 mm Diameter Tube
Single Piece Tube
Constructed of Aircraft Grade Aluminum
Waterproof, Fog Proof, Shockproof
Hard Anodized Finish
Capped Reset Turrets
Fast Focus Eyepiece
Specifications |
||||||
| L1 | 9.61 | |||||
| L2 | 2.78 | |||||
| L3 | 1.90 | |||||
| L4 | 6.17 | |||||
| L6 | 3.44 | |||||
| H1 | 1.18 | |||||
| H2 | 1.73 | |||||
Specifications |
||||||
| Magnification | 1-4x | |||||
| Objective Lens Diameter | 24 mm | |||||
| Eye Relief | 4.0 inches | |||||
| Field of View | 96.1-24.1 ft/100 yds | |||||
| Tube Size | 30 mm | |||||
| Turret Style | Capped | |||||
| Adjustment Graduation | 1/2 MOA | |||||
| Travel Per Rotation | 30 MOA | |||||
| Max Elevation Adjustment | 100 MOA | |||||
| Max Windage Adjustment | 100 MOA | |||||
| Parallax Setting | 100 yards | |||||
| Length | 9.61 inches | |||||
| Weight | 14.8 oz | |||||
Vortex Cantilever Scope Mount
Vortex cantilever ring mounts provide the correct height and forward placement for proper scope mounting on flattop ARs. Available for 30 mm tubes in 2 inch or 3 inch offset.
Specifications |
||||||
| Base Clamp Screws | 30 in/lbs | |||||
| Ring Screws | 18 in/lbs | |||||
| Center Scope Height | 1.59 inches (40.39 mm) | |||||
| Weight | 6.7 oz | |||||
| Weight (per ring) | 37 grams (1.3 oz) | |||||
| Mount Compatibility | Picatinny and Weaver | |||||
