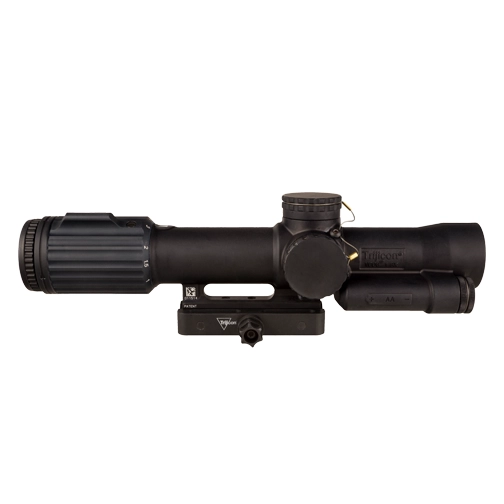

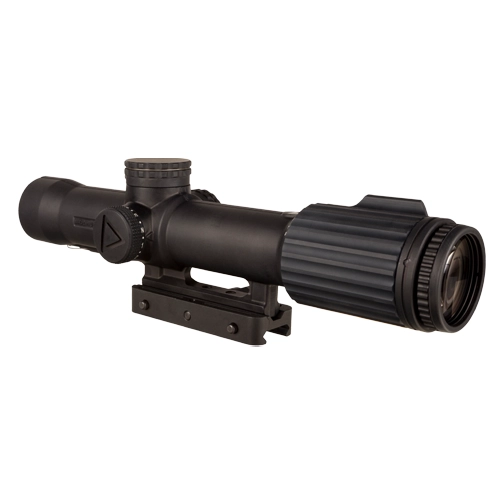

Trijicon VCOG 1-8×28 Scope
The Trijicon VCOG 1-8 is an extremely rugged, variable magnification scope designed for close quarter battle and long distance shooting. With a forged aircraft grade 7075-T6 aluminum housing, the VCOG is nearly indestructible. Amazing glass gives you great clarity and color with zero distortion. The universal segmented circle MOA or MRAD crosshair dot reticle is designed for multi platform use, accommodating multiple calibers, ammunition weights, and barrel lengths.
The first focal plane reticle allows subtensions and drops to remain true at any magnification, letting the user to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery, the 1-8 x 28 VCOG gives a battery life of over 600 hours at setting 6. Choose from 11 different brightness options, 2 night vision settings, 8 day settings, and 1 super bright setting. An integrated dial fin helps for easy rotation through the magnification range, and a near constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters.
Trijicon VCOG 1-8 Features
Superior Quality Glass
Multi coated lenses bring great clarity and light gathering capabilities with zero distortion
Bright, Crisp Illumination
Brilliantly illuminated reticle is powered by a single AA battery.
No Rings Needed
The need for ring mounts is gone with the integrated mounting adapter that helps with quick and easy mounting to any rail system. Compatible with many rails in the marketplace made to fit the ACOG.
Virtually Indestructible
Tested to MIL STD 810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field.
Quick, Accurate Ranging Reticle
1-8 x 28 offers Universal MRAD and MOA reticles
Adjustable Brightness Settings
Rapid Target Acquisition
First focal plane reticle lets you rapidly acquire target and apply correct hold throughout magnification range.
Easy to Set Adjusters
Lets you to easily adjust windage and elevation.
Quick Magnification Adjustments
Integrated dial fin helps for easy rotation through magnification settings.
Specifications |
|
Length x Width x Height | 10.8 in x 2.8 in x 2.8 in |
Magnification | 1 to 8 x |
Objective Size | 28 mm |
Reticle Pattern | Segmented Circle / Crosshair |
Day Reticle Color | Red |
Night Reticle Color | Red |
Focal Plane | First |
Bullet Drop Compensating (BDC) | No |
Caliber | MOA or MRAD |
Bindon Aiming Concept (BAC) | Yes |
Illumination Source | LED |
Illumination Settings | 11 Total Settings: 2 Night Vision, 8 Day, and 1 Super Bright Setting |
Power Source | AA Lithium or Alkaline Battery |
Battery Life | 633 hours at setting 6 |
Adjustment | 1/4 MOA Per Click or .1 MRAD |
Adjustment Range | 120 MOA or 35 MRAD Total Travel |
Eye Relief | 4 in to 3.9 in |
Exit Pupil | 0.40 in. to 0.14 in |
Field of View (degrees) | 20° to 2.5° |
Field of View (feet) | 109.2 ft. to 13.1 ft. @ 100 yards |
Mount | Flattop Thumbscrew Mount
Q-LOC Technology Mount |
Housing Material | 7075-T6 forged aluminum |
Finish | Matte Black |
Submersion Depth | 66 ft. |
Weight | 31.5 oz |
