Trijicon RM09-C-700743 Adjustable LED RMR Type 2 & C&H Precision Glock MOS V4 MIL/LEO Adapter Plate Bundle

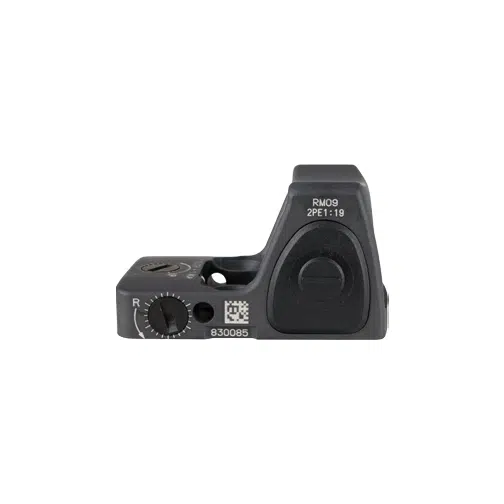

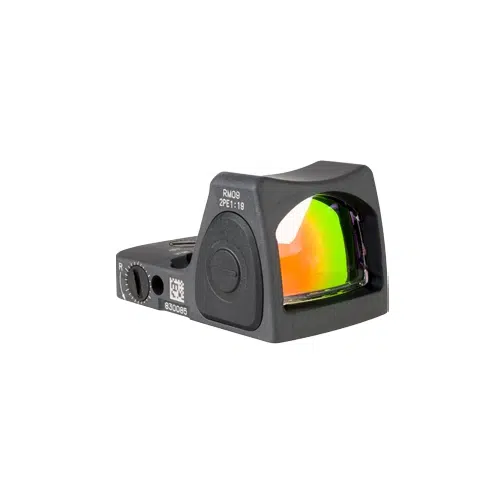

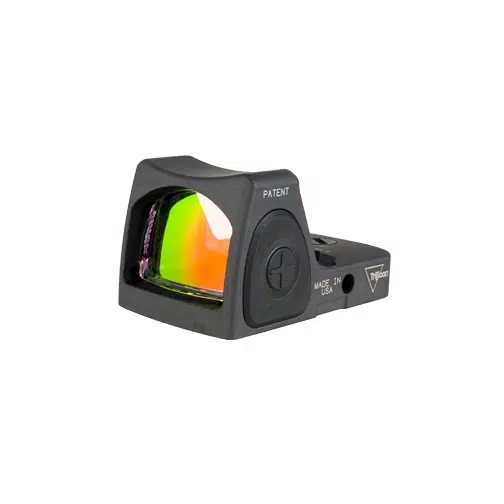

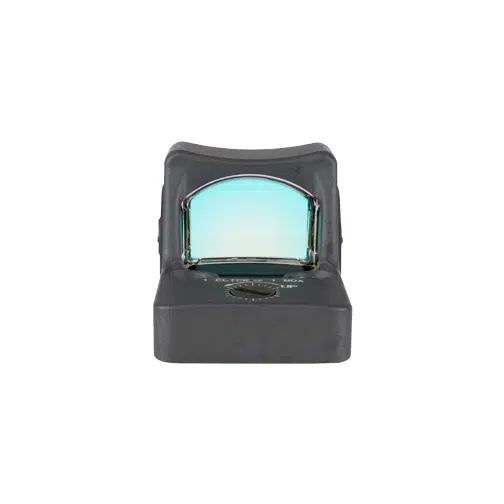

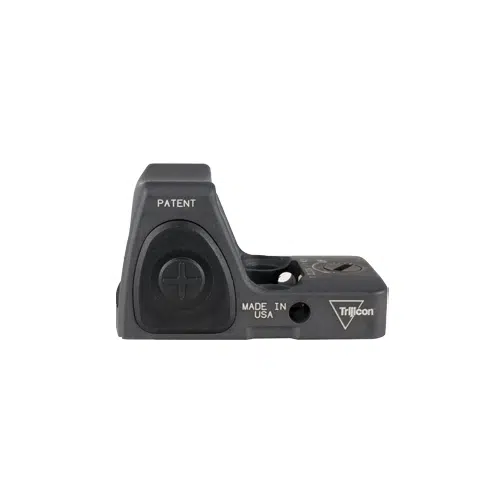

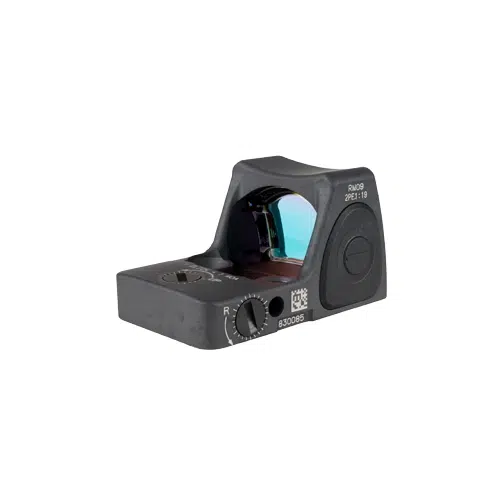

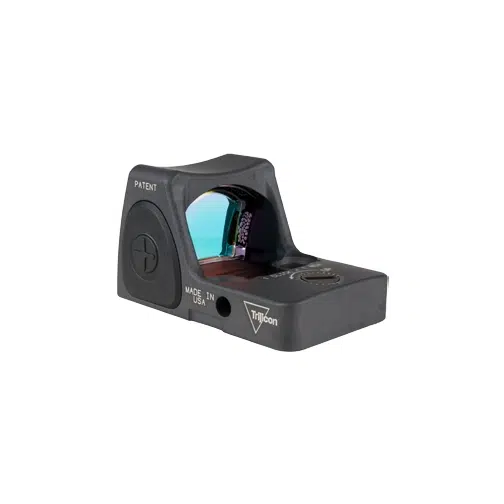

Trijicon RM09 RMR Type 2 1.0 MOA
The Trijicon RM09 RMR Type 2 1.0 MOA red dot features a patented housing shape that absorbs impacts and diverts stresses away from the lens to increase durability. It also offers redesigned and upgraded electronics that have been proven to perform when mounted on slide ride pistols and other small arms. The RMR Type 2 Adjustable LED sight puts the illumination controls in the user’s hands.
Easy to use buttons on the sides of the optic allow the user to adjust the illumination brightness, toggle between manual and automatic modes, and power down the RMR for storage. The automatic mode functions the same as the LED RMR version. If a manual mode has been chosen, the RMR will remain in manual mode for 16.5 hours following the last push of a button. After 16.5 hours, the optic will default back to the automatic mode so that the RMR will be ready for your next mission or task.
All RMR Type 2 Adjustable LED sights are compatible with night vision devices, with the 3.25 dot size being the most popular. The user can also lock out the buttons so that the RMR functions in automatic mode only. This ensures that inadvertent button pushes do not cause a loss of aiming solution. The 1.0 MOA dot in the RM09 gives the user our smallest dot available in our Adjustable LED models. The fine dot allows for shooting more accurately at greater distances and is a great solution for long range pistols, rifle, and carbine applications. It’s suitable for military, law enforcement, concealed carry self-defense, target shooting, and hunting applications.
NOTE: The RMR Type 2 has identical physical dimensions and mounting footprint to that of the original RMR Type 1. If selecting an RMR for mounting on the Glock MOS system or Springfield OSP pistol, a Trijicon RMR mounting kit (AC32064) is required.
Trijicon RM09 RMR Type 2 1.0 MOA Features
Outstanding Durability
Unique, patented housing shape diverts the force of an impact away from the lens, greatly increasing durability.
True Color, Multi Coated Lens
Creates a wide band light transmission for minimal change in target area color.
Easily Adjustable Windage/Elevation
No need for special tools. 1 MOA per click.
Dual Illuminated Option
Tritium phosphor lamp illuminates reticle in low light conditions and fiber optics automatically adjust the brightness level and contrast to available light conditions.
Adjustable LED Option
Easy to use buttons on the sides of the optic allow the user to adjust the illumination brightness, toggle between manual and automatic modes, and power down the RMR for storage.
Multi Platform Friendly
Multiple primary applications including rifle, pistol, shotgun and carbine, or use as a secondary sight with a magnified optic.
Built to Handle the Worst
Designed to be waterproof to 20 meters (66 ft.)
Limited Lifetime Warranty
Tritium lamp is warrantied by Trijicon to illuminate for 15 years from date of original manufacture (Dual Illuminated RMR). Electronics are warrantied for 5 years from date of original manufacture (LED & Adjustable LED RMR).
Upgraded Electronics
Ruggedized battery contacts and electronics ensure performance and survivability in harsh environments (LED & Adjustable LED RMR only).
Battery Conservation Mode
Automatically adjusts aiming dot to ambient lighting conditions after 16.5 hours (LED & Adjustable LED RMR only).
Specifications |
||||||
Length x Width x Height | 1.8 in x 1.1 in x 1 in
(45.72 mm x 27.94 mm x 25.4 mm) |
|||||
Weight | 1.2 oz. (34.02 g) | |||||
Magnification | 1x | |||||

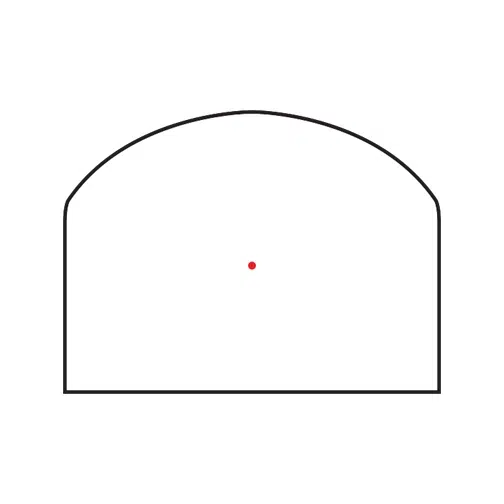

Reticle Pattern | 1.0 MOA Dot | |||||
Day Reticle Color | Red | |||||
Night Reticle Color | Red | |||||
Bullet Drop Compensating (BDC) | No | |||||
Bindon Aiming Concept™ (BAC) | No | |||||
Illumination Source | LED | |||||
Illumination Settings | Automatic & 8 Adjustable Settings | |||||
Power Source | 1 CR2032 Lithium Battery | |||||
Battery Life | Over 4 years of continuous use (when used at 70ºF / 21ºC) at brightness setting 4 of 8. | |||||
Adjustment | 1 MOA Per Click | |||||
Mount | No Mount | |||||
Housing Material | Forged Aluminum | |||||
Finish | Sniper Grey |
C&H Precision Glock MOS V4 MIL/LEO Adapter Plate – Trijicon RMR/SRO & Holosun 407C/507C/508T
The C&H Precision Glock MOS V4 MIL/LEO Adapter Plate was designed to be one of the most modular, rugged, durable and reliable mounting plate on the market. Each plate is precision machined to the tightest tolerances on HAAS CNC machines and each plate goes through multiple quality checks. All adapter plates are designed and manufactured in the USA.
Specifications |
||||||
Thickness | V4 MIL / LEO Plates are .095″ to .099″ thick | |||||
Material | Plates are made from 6061 aluminum. All mounting hardware is Stainless Steel | |||||
Finish | Plates are MIL-SPEC Type III Hard Anodized – Black | |||||
Brownells RMR CUT SLIDE | 6-32 x 1/4, 6-32 x 3/8, 6-32 x 5/8 | |||||
Manufacturer | GLOCK MOS | |||||
Model | 43x & 48 | |||||
Red Dot | Trijicon RMR and SRO & Holosun 407C, 507C and 508T |
