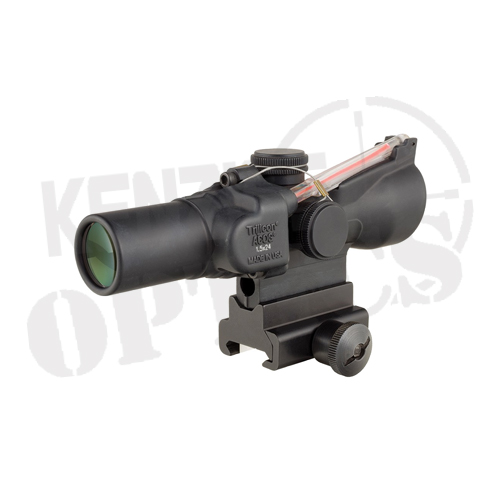

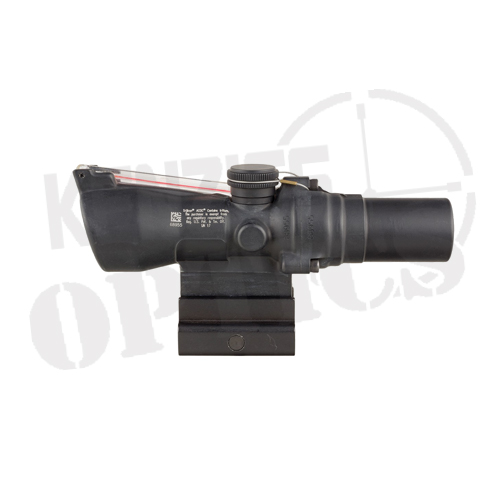

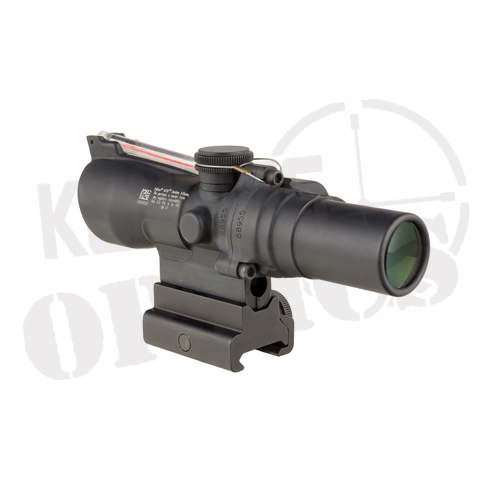

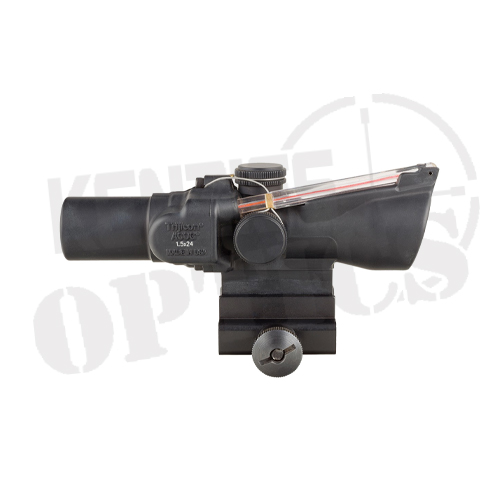

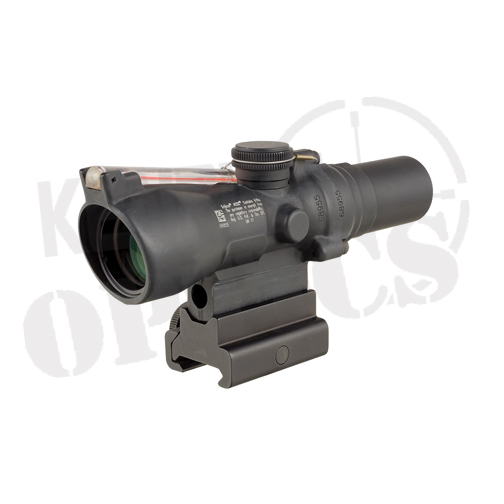

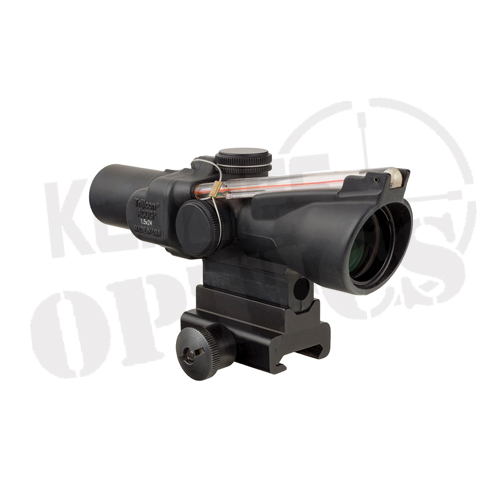

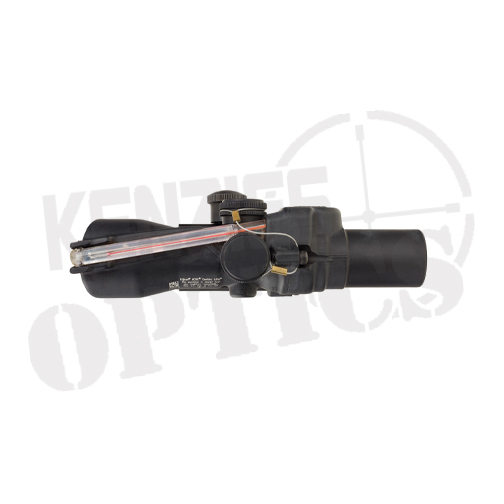

Trijicon ACOG 1.5×24
The Trijicon ACOG 1.5×24 is designed to survive the harshest environments and continuously hold a zero. This mini ACOG provides a large exit pupil and long eye relief allowing for great freedom in eye position. This makes it extremely fast acquiring targets at very close range while maintaining the added precision possible with 1.5x magnification. It is also battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light. Making it always on, always ready.
ACOG 1.5×24 BAC Features
Tritium/fiber optic illuminated reticle
Fixed power design allows for minimal moving parts to create a nearly indestructible sighting system.
“Both eyes open” shooting using The Bindon Aiming Concept (BAC) allows for improved situational awareness.
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
No other magnified optic has been used more in combat than the ACOG.
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Exceptional waterproof performance that exceeds military standards. Dry nitrogen filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry nitrogen filled housing that mitigates fogging.
Specifications |
||||||
Length x Width x Height | 5.8 in x 1.6 in x 2.1 in | |||||
Weight | 6.3 oz.
(178.6g) |
|||||
Magnification | 1.5x | |||||
Objective Size | 24mm | |||||

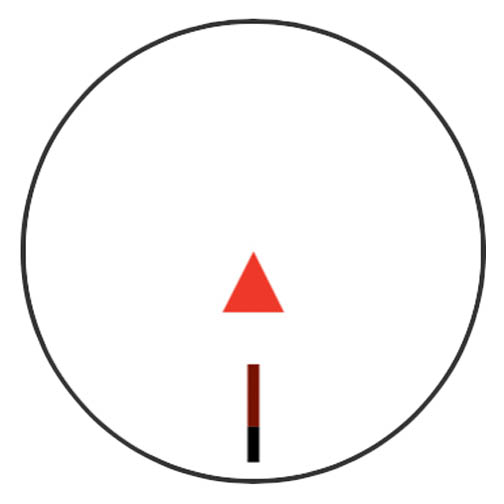

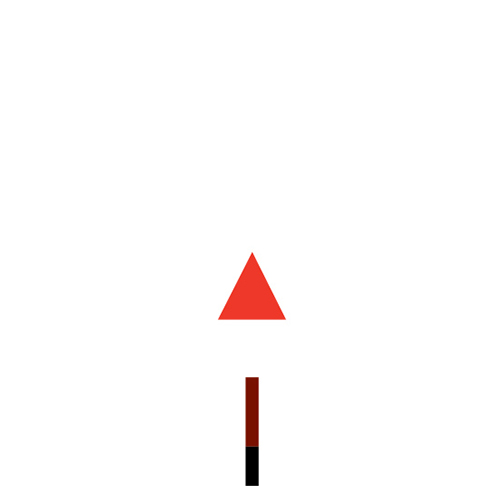

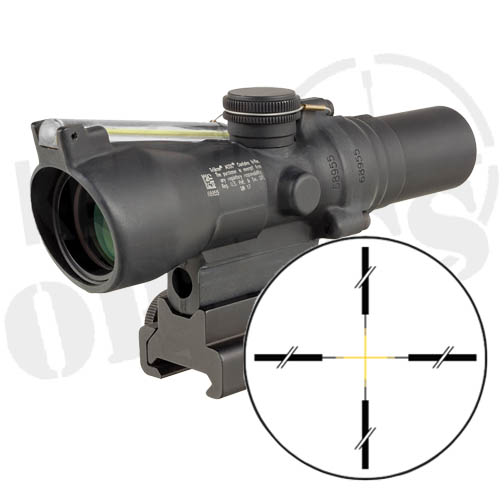

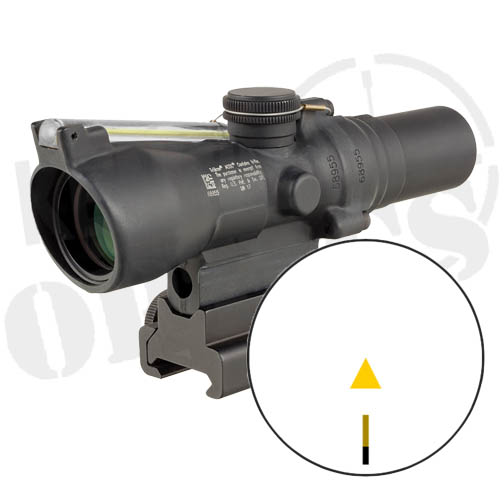

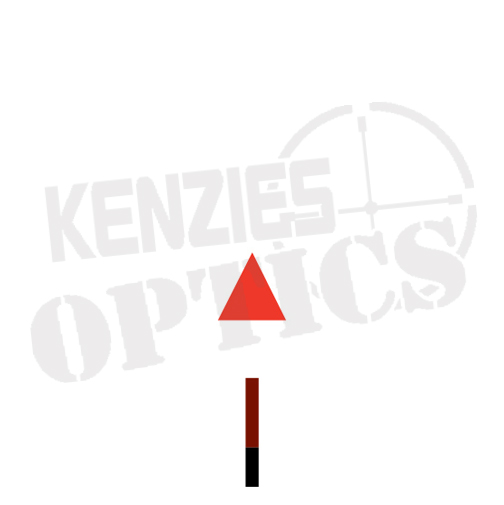

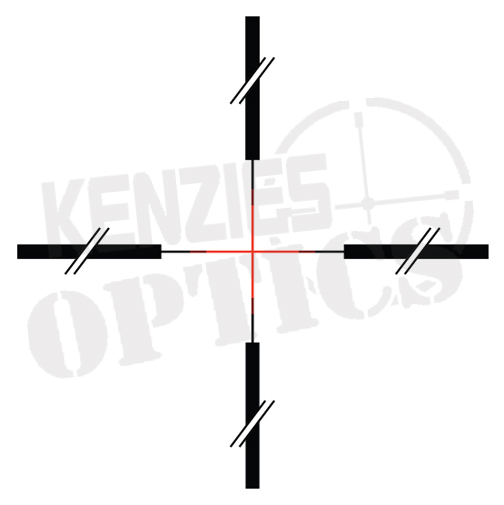

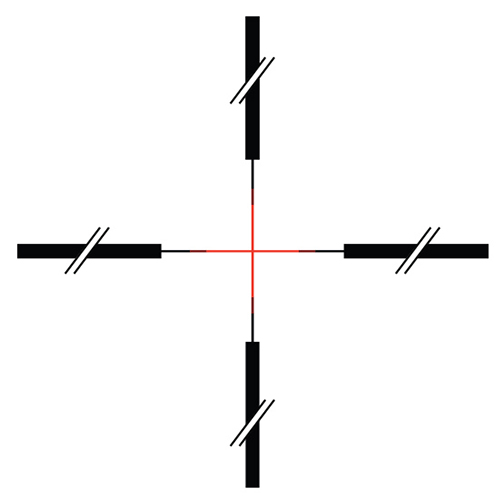

Reticle Pattern | 8 MOA Triangle
Crosshair |
|||||
Day Reticle Color | Red
Amber |
|||||
Night Reticle Color | Red
Amber |
|||||
Bullet Drop Compensating (BDC) | No | |||||
Bindon Aiming Concept (BAC) | Yes | |||||
Illumination Source | Fiber Optics & Tritium | |||||
Power Source | Fiber Optics & Tritium | |||||
Adjustment | 2 clicks per in. @100 yards | |||||
Eye Relief | 3.6 in.
(91.44mm) |
|||||
Exit Pupil | 0.63 in.
(16mm) |
|||||
Field of View (degrees) | 4.9° | |||||
Field of View (feet) | 25.6 ft. @ 100 yds.
(8.53m @ 100m) |
|||||

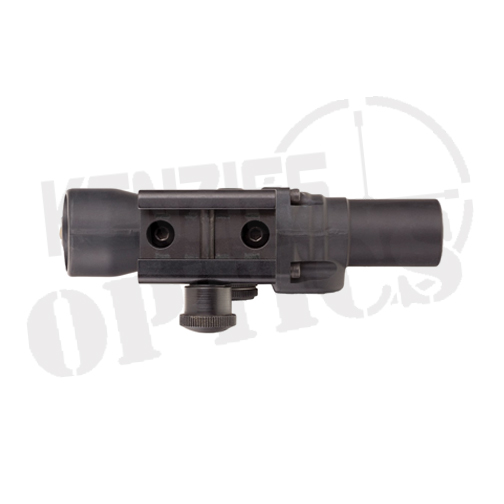

Mount | M16 Carry Handle Base (TA60)
Q-LOC Technology Mount |
|||||
Housing Material | Forged Aluminum | |||||
Finish | Matte Black |
