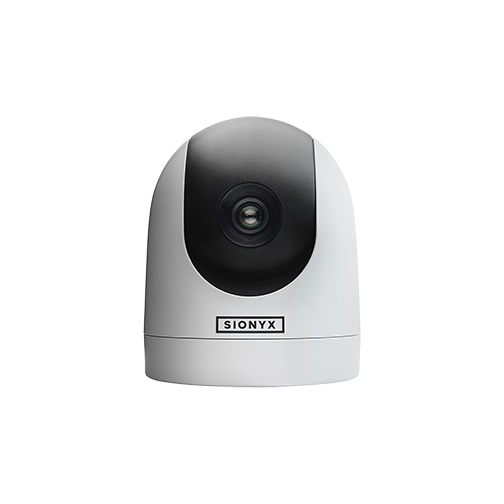

Sionyx Nightwave Marine Night Vision Camera – White

$1,895.00

Backorder this item now

Want to be notified when this product is back in stock?

Sionyx Nightwave Marine Night Vision Camera – White

The Sionyx Nightwave is a marine night vision camera that was built around Sionyx’s patented Black Silicon CMOS sensor. It allows mariners of all levels to easily spot obstacles and debris in moonless starlight without white lights or expensive thermal cameras – navigating safely, avoiding collisions, and maximizing time on the water. IP67 rated, it’s built to operate in the toughest marine environments.

Nightwave’s flexible mounting and video streaming setups allow both seamless integration with major brand MFDs and the option to view live video on your mobile device – so you can navigate confidently in the dark from any vessel with clear color digital night vision.

Sionyx Nightwave Features

Capable

< 1 mlx moonless starlight sensitivity allows you to see well beyond human eyesight.

Aware

Stable 44° field of view increases situational awareness to spot unexpected obstacles, debris, markers, vessels, and more.

Rugged

IP67 rating protects against water, sand, salt, and dust. Dry nitrogen purged to prevent lens fogging. Safely use Nightwave in inclement weather conditions.

Connected

Flexible installation options allow seamless integration with major brand MFDs and WiFi video streaming to the new Sionyx mobile app.

Mounting Options

Permanently mount to a flat surface, ball up or down, using the included mounting template and hardware

Bulkhead Mount: 4 X M6 Blind Holes

Top-Down Mounting Holes

Temporarily mount via the single 1/4” 20 center mount

Once mounted, camera features manual vertical tilt adjustment

Power and Video Output Options

The preferred video output must be selected using the SIONYX App.

WiFi communication and command and control options are available via the SIONYX App using either power source.

Powering the camera with 12V DC and using the analog video output is the preferred method for integration with onboard electronics [MFD].

A user may want to use USB power as a convenient option if a 12V DC battery is not available. While using USB as a power option, the analog video output will not be available.

Powering the camera with the USB is the preferred method when connecting to a host device [PC/Laptop].

When the camera is powered with 12V DC using the factory-installed cable:

WiFi live video streaming is available via the SIONYX App

USB video output is not available

Analog video output is available via the SMA-BNC-RCA connector on the factory-installed cable.

When the camera is powered with USB [5V DC] using the provided USB cable:

WiFi live video streaming is available when selected in the SIONYX App

Note: If WiFi video is selected via the App, USB video will NOT be available.

USB video out can be used when the camera is plugged into a host device [PC/Laptop]

Note: If USB video is selected via the App, WiFi video streaming will NOT be available.

Analog video output is not available.

Included in the Box

Sionyx Nightwave Ultra Low Light Marine Camera (CRV-500C)

Analog Video Cable (5M)

SMA to BNC adapter

BNC to RCA adapter

Power Fuse & Fuse Holder

Digital Video Cable USB (3M)

Base Gasket

Mounting Hardware

User Manual

Intall Template

Specifications

Sensor Type XQE1350 BSI CMOS
Resolution 1280 X 1024
Frame Rate 30 HZ
Horizontal Field of View 44°
Visible Spectrum 400-1200NM
Focus Range 10M TO INFINITY
Lens 16MM F/1.4
Video Out Analog Video [NTSC]
Analog Video Connection SMA / BNC/ RCA
Wireless Communications WiFi + Bluetooth
Power In 12Vdc / 5Vdc[USB]
Power Connection Tinned Copper Wire / USB [with provided optional cable]
Ingress Protection IP67 Water / Dust – Resistant
Shock & Vibration IEC60945 [V15G | H:9G] | IK08
Operating Temperature -20°C To +50°C
Storage Temperature -20°C To +80°C
Detect Man-Sized Object 150 M
Weight 870 G [1.9 LBS]
Dimensions 127 X 127 X 152 MM [5 X 5 X6 IN]
Material UV Resistant Polycarbonate
