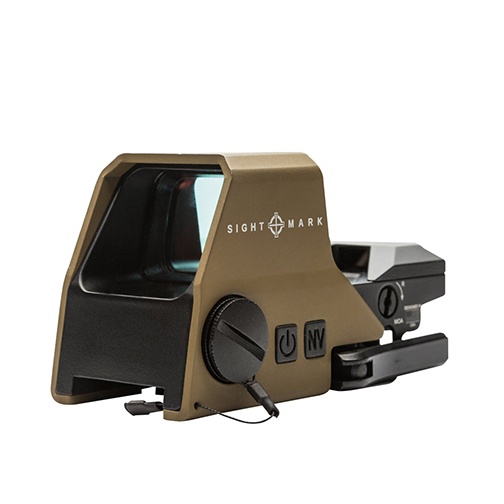

Sightmark Ultra Shot A-Spec Reflex Sight
Built tough, the Sightmark Ultra Shot A-Spec Reflex Sight is shock proof, IP55 weather resistant, recoil rated up to .338 and constructed of a rugged, lightweight 6061-T6 aluminum body and protective shield. 1 MOA windage and elevation adjustments, up to 120 MOA of travel, get you on target quickly while the Interlock internal locking adjustment system and a single CR123A battery keeps you there with a battery life of 200 – 2,000 hours. The Ultra Shot A-Spec Reflex Sight also features a low battery indicator, digital switch controls, 1 hour auto shut off, quick detach picatinny mount and Sightmark’s lifetime warranty. The Ultra Shot A-Spec Reflex Sight is also perfectly compatible with the Sightmark XT-3 Tactical Magnifier (SM19062). Includes adjustment tools, CR123A battery, operation manual and neoprene cover.
Ultra Shot A-Spec Features
Rugged, lightweight aluminum alloy housing
Protective aluminum shield
Quick detach picatinny mount
Advanced, parallax free lens design
Wide lens provides quick target acquisition
Slotted windage and elevation adjustments
Red reticle illumination
Low battery indication
Digital switch controls
10 reticle brightness levels
Night vision brightness modes
1 hour auto shutoff
Multiple reticle options
Scratch resistant lens coating
Interlok internal locking adjustment system
Available in Black or Dark Earth finish
Specifications |
|
| Reticle Color | Red |
| Reticle Type | 5 MOA dot 3 MOA dot with 50 MOA circle 3 MOA dot with 50 MOA crosshair 3 MOA dot with 30 MOA circle/crosshair |
| Reticle Brightness Setting | Off 1-10 NV |
| Magnification | 1 |
| Objective Overall Dimension | 33 x 24 mm |
| Eye Relief (in/mm) | Unlimited |
| Adjustment Value | 1 MOA |
| Elevation Range of Adjustment | 120 MOA |
| Windage Range of Adjustment | 120 MOA |
| Parallax Setting | 10/9.1 yd/m |
| Finish Color | Matte black |
| Body Material | Aluminum 6061-T6 |
| Maximum Recoil | .50 BMG Max Caliber |
| IP Rating | IP55 water resistant |
| Nitrogen Filled | No |
| Fog Proof | No |
| Shockproof | Yes 8 ft (2.4 m) |
| Lens Coating | AR Red |
| Mount Type | Picatinny |
| Battery Type | CR123A |
| Battery Life | 200-2,000 Hours |
| Battery Voltage | 3V |
| Operating Temperature F/C | -22 to 160F (-30 to 71C) |
| Length (in/mm) | 4.33 in (110 mm) |
| Width (in/mm) | 1.96 in (50 mm) |
| Height (in/mm) | 2.28 in (58 mm) |
| Weight | 10.8 oz |
