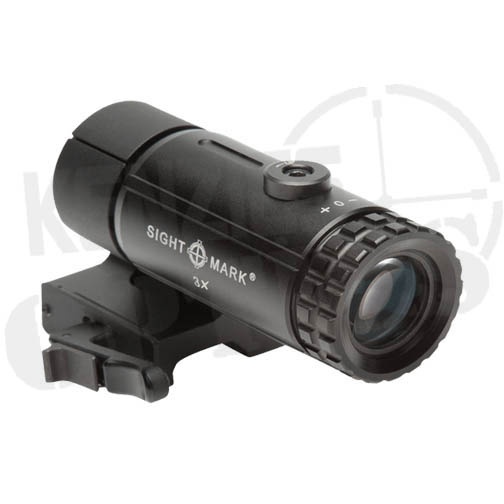

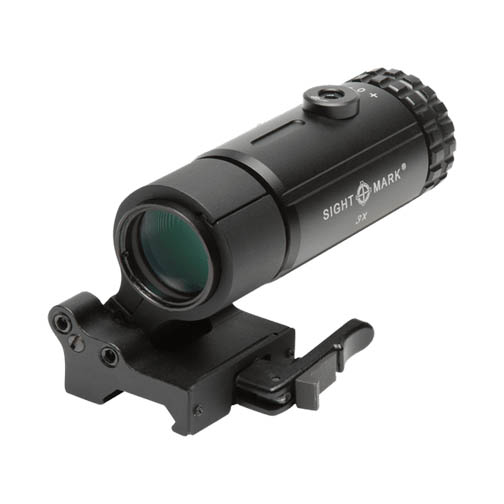

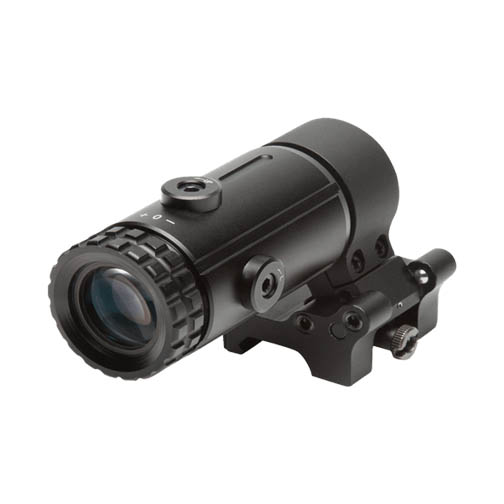

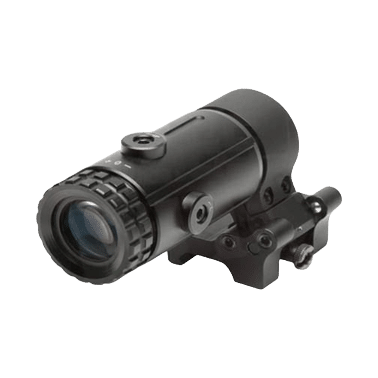

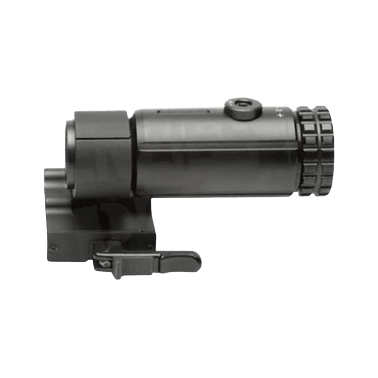

Sightmark T-3 Magnifier
Designed to mount directly behind a reflex sight or red dot, the versatile Sightmark T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close range shooting scenario calls for no magnification, simply use the T-3’s flip to side mount to rapidly transition between the optic systems.
This durable magnifier is constructed of aluminum and provides improved brightness and resolution from fully multi coated optics. External windage and elevation adjustments align the reticle to the center of the T-3’s point of view. EOTech and Aimpoint compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip to side LQD mount, adjustment tools and manual.
Sightmark T-3 Magnifier Features
Locking, quick detach mount for quick and easy removal
Flip to side mount provides rapid transition between optical systems
Fully multi coated, scratch resistant
External windage/elevation adjustment for reticle alignment
Increases magnification of accompanying sights for greater engagement range
EOTech and Aimpoint compatible
Specifications |
||||||
Magnification | 3x | |||||
Diameter, Objective Lens | 23 mm | |||||
Diameter, Eyepiece | 1.26 in
(32mm) |
|||||
Diameter, Exit Pupil | 7.6 mm | |||||
Eye Relief (in/mm) | 2.25 in
(57mm) |
|||||
Field of View, m@100m | 14.43 | |||||
Field of View, ft@100yd | 43.3 | |||||
Diopter Adjustment | +3 to -3 | |||||
Diameter, Tube | 30 mm | |||||
Maximum Recoil | .308 Caliber | |||||
Shockproof | Yes | |||||
Fog Proof | No | |||||
IP Rating (waterproof) | IP55 – water resistant | |||||
Finish/Color | Matte black | |||||
Body Material | Aluminum | |||||
Lens Coating | Full Multi-coated | |||||
Mount Type | Picatinny | |||||
Operating Temperature, F/C | -22 to 160F
(-30 to 71C) |
|||||
Length (in/mm) | 4 in
(103 mm) |
|||||
Width (in/mm) | 2.6 in
(66.2 mm) |
|||||
Height (in/mm) | 1.67 in
(42.5 mm) |
|||||
Weight, oz | 10.6 oz. |
