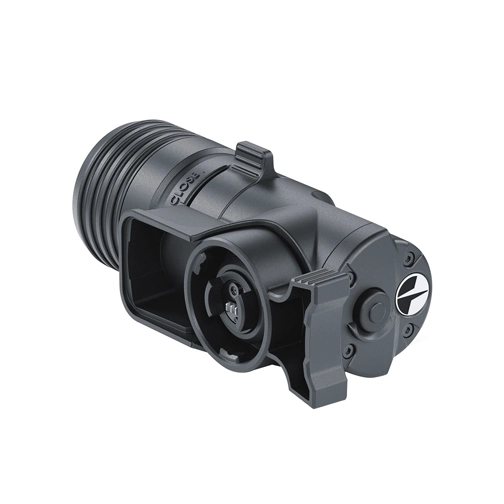

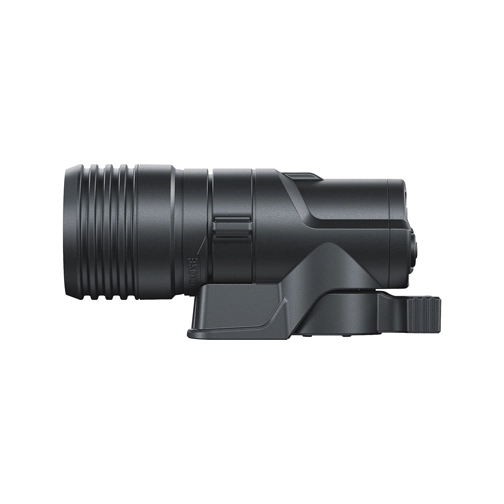

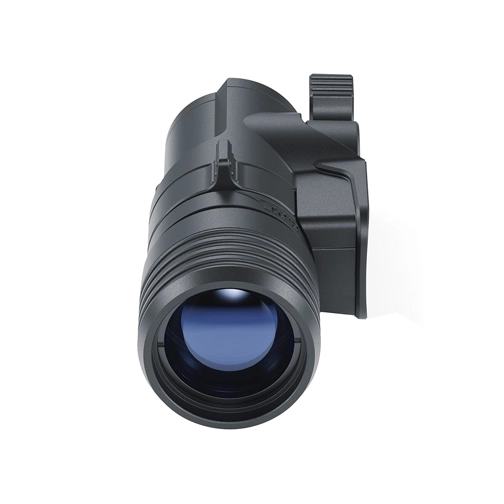

Pulsar Ultra X-850A Illuminator
The Pulsar Ultra X-850A Illuminator was designed to be an Interchangeable infrared flashlights for digital night vision riflescopes Digisight Ultra N450/N455, Digisight Ultra N450/N455 LRF, digital NV attachments Forward F455 with adjustable power and precise setting of spot position in the field of view.
Pulsar Ultra X-850A Features
Increased Range
Wavelength of IR-illuminator Pulsar Ultra X-850A is 850 nm. Sensors of digital night vision devices have the best sensitivity in this range and due to this fact, illuminator is effective for viewing remote objects.
Adjustable IR Spot Position
Design of Pulsar IR Flashlights allows spot position to be corrected in the field of view horizontally and vertically. To do this, turn the lever to loosen the ring fixing the optical assembly, adjust the IR spot in the center of the field of view (the NV unit should be on) and pull the lever to tighten the ring again.
Power Adjustment
3-step power setting helps to achieve optimal intensity of illumination in specific observation conditions. Power is adjusted by sequential press of the button on the body on of IR flashlight.
Mounting
Mounting Pulsar Ultra-X850 /X940A on the riflescope and taking it off can be done in seconds. With the help of bayonet mount the process is easy and reliable.
Power supply
IR Illuminator connects to digital night vision attachments Forward F455 and riflescopes Digisight Ultra N455/ Digisight Ultra N455 LRF by means of special socket connector and receives power from digital night vision unit. The data about illumination power is shown in the status bar of night vision unit.
Specifications |
||||||
| Emitter | LED | |||||
| IR Wavelength, nm | 850, long range | |||||
| IR Optical Power, mW | Up to 300 | |||||
| IR Spot Position Adjustment | Yes | |||||
| Degree of protection, IP code (IEC60529) | IPX7 | |||||
| Operating temperature range, °С | -25 to +50 | |||||
| Max. recoil power on rifled weapon (Eo), Joules | 6000 | |||||
| Shock resistance on the smooth-bore rifles, caliber | 12 | |||||
| Related Products | Digisight Ultra N450/ 455, Digisight Ultra N450/455 LRF, Forward F455/455S, Forward FN455/455S | |||||
| Mount, type | NV Device IR Illuminator mounting port | |||||
| Body material | Metal & Plastic | |||||
| Dimensions, mm | 108x45x54 | |||||
| Weight, kg | 0.142 | |||||
