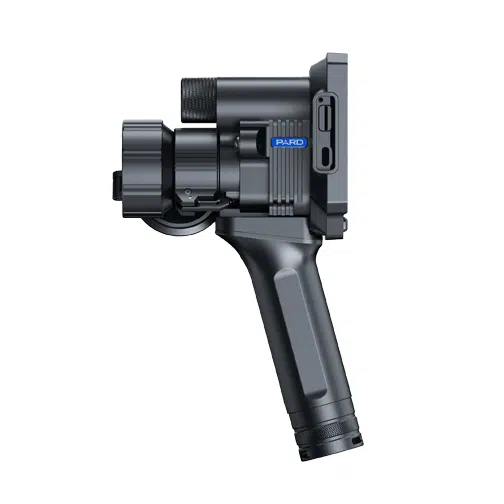

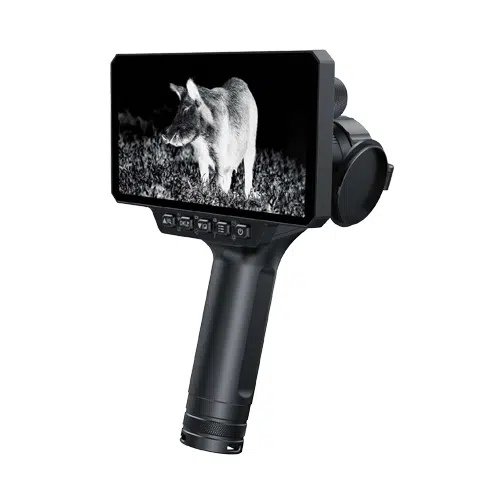

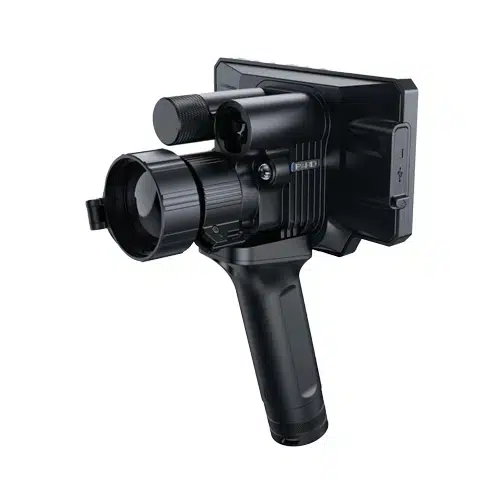

PARD SP3 Sphinx 384×288 Thermal Riflescope w/ Laser Rangefinder
Far from the tiny displays of most thermal riflescopes, the PARD SP3 Sphinx 35mm 384 x 288 Thermal Riflescope with Laser Rangefinder shows imagery on a 5″ screen, which has a handle for holding it and a mount for using it on a rifle. The handle also serves as a backup battery or power bank with its own 21700 battery, separate from the 18650 battery that powers the thermal scope. The imager can detect a human-sized heat signature more than 1500 yards away, while the rangefinder measures distances to 1200 yards and uses them to inform its ballistic calculator, which stores up to five profiles. The 3.5x optical magnification can be digitally amplified up to 8x to see distant details. You can record video and photos and share them via Wi-Fi, and the aluminum housing is IP67 waterproof.
PARD SP3 Sphinx Features
384 x 288 Thermal Sensor
5″ 1280 x 720 Monitor
Use Weapon-Mounted or Handheld
1531-Yard Imager Range (Human Size)
1200-Yard Rangefinder Range
Ballistic Calculator with 5 Profiles
3.5x Optical Magnification, 2-8x Digital
Captures Video and Photos
Uses 18650 Battery, 6 Hours Runtime
Handle is Power Bank with 21700 Battery
Specifications |
||||||
| Classification | Multi-Purpose Thermal Imaging Handheld Camera | |||||
| Type | Uncooled VOx(vanadium oxide) | |||||
| Resolution(px) | 384*288 | |||||
| Pixel Size(µm) | 12*12 | |||||
| NETD | ≤35mK（0.035℃） | |||||
| Frame Rate(Hz) | 50 | |||||
| Human Detection Distance(m) | 1400 | |||||
| Vehicle Detection Distance(m) | 2600 | |||||
| Objective Lens(mm) | 35 | |||||
| Optical Magnification(x) | 3.5 | |||||
| Digital Zoom(x) | 2002/4/8 | |||||
| Field of view (HxV) | Horizontal 7.6°
Vertical 5.7° Diagonal 9.5° |
|||||
| Type | LCD | |||||
| Resolution(px) | 1280*720 | |||||
| Reticle Style | 6 | |||||
| Reticle Color | Red / White / Yellow / Green | |||||
| Scene Mode | City / Rain / Forest | |||||
| Image Mode | White Hot / Black Hot / Red Hot / Fusion1 / Fusion 2 / Iron Red 1 / Iron Red 2 | |||||
| Photo Resolution(px) | 2592*1944 | |||||
| Photo Format | .JPG | |||||
| Video Resolution(px) | 1280*720 | |||||
| Video Format | .mp4 | |||||
| Storage | Micro SD card (128 GB,Max) | |||||
| Image Engine | Pard IREA | |||||
| LRF Detection Range | 1000m/1200yd | |||||
| Ballistic Calculator | Yes | |||||
| PIP | Yes | |||||
| Self-motivated Recording | Yes | |||||
| Loop Recording | Yes | |||||
| Shutter | Mechanical Shutter | |||||
| Microphone | Yes | |||||
| Firmware Upgrade | Yes | |||||
| USB Tpye-C | Yes | |||||
| WiFi | Yes | |||||
| Supported Apps | PardVision | |||||
| Main Device Battery Type | Lithium-Ion 18650 | |||||
| Handle Battery Type | Lithium-Ion 26650/21700 | |||||
| Output Voltage(V) | 3.7 | |||||
| Operating Time(h) | ≤6 | |||||
| External Power Supply | USB Type-C | |||||
| Protective Class | IP67 | |||||
| Operating Temp(℃/℉) | -20~50/-4~122 | |||||
| Recoil Resistance(J) | 6000 | |||||
| Housing | Aluminum Alloy | |||||
