PARD FT34-LRF Thermal Imaging Clip On System

$3,299.00

Backorder this item now

Want to be notified when this product is back in stock?

SKU: FT34-35/F Categories: , , Tags: , , , ,

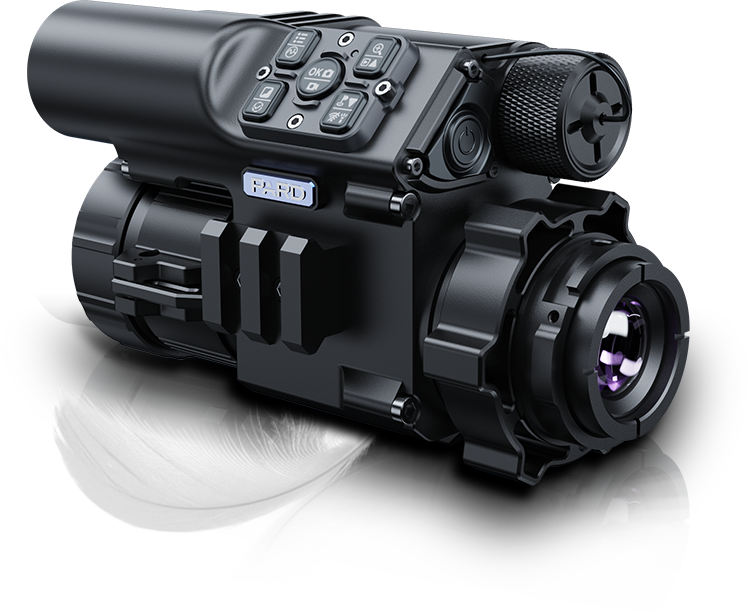

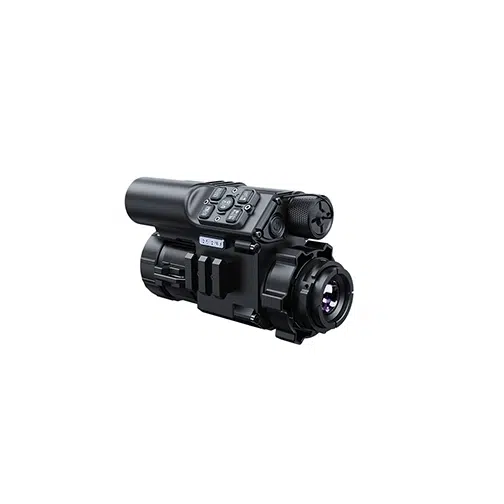

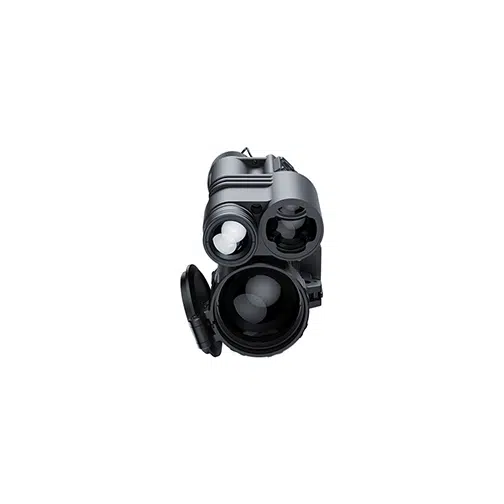

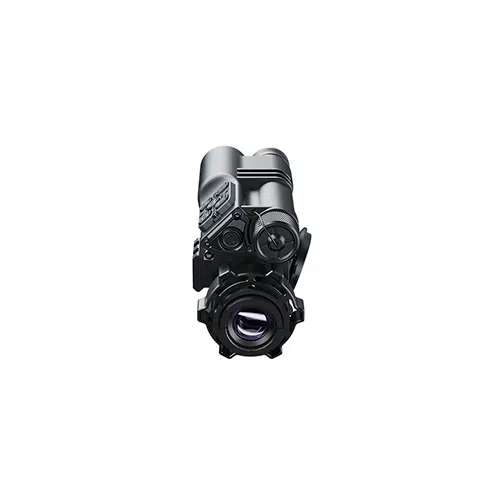

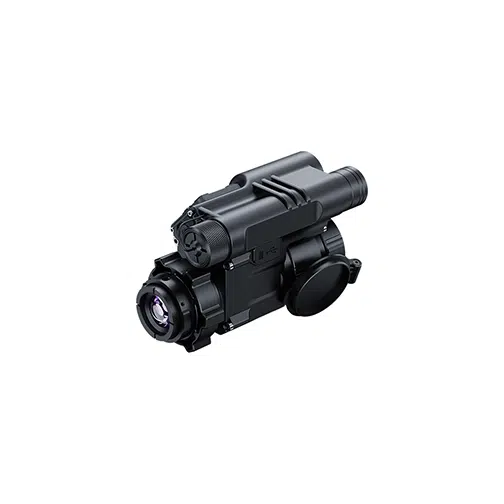

PARD FT34-LRF Thermal Imaging Clip On System

The PARD FT34-LRF is a thermal imaging clip on system that offers unparalleled versatility. You choose whether you want to carry it in your pocket and use it as a thermal monocular, attach it to your existing optical scope or mount as a stand alone thermal sight on your rifle. The FT34 can transform from a scope mounted thermal into a hand-held monocular for ultimate versatility. 3.5x base magnification and a large Field of View (FOV) ensures clear and precise target identification.

PARD FT34-LRF Features

Built In Laser Rangefinder (LRF) and Ballistics Calculator

Enjoy the 1200yd Laser Range Finder to guarantee accuracy and precision. With the push of a button, the calculated distance is instantly fed to the integrated Ballistics Calculator to produce a new point of impact in the display. Users enjoy unparalleled ballistic confidence enabling precise shot placement.

Compact by Design

Lightweight chassis minimizes weight and keeps your rifle balanced.

Ultra Sensitive Sensor LWIR

Available in 384×288 resolution, 12µm pixel pitch and a ≤25mK thermal sensor, the FT34 can detect minute differences in temperatures in the thermal environment. It provides clear and detailed thermal images, even in rain or fog. The image sensor was designed with PARD IREA infrared image technology to deliver performance, even in adverse weather conditions.

Recoil Rated up to .338 Win Mag

The recoil resistance is designed to handle up to 6000J of force making it suitable for today’s larger caliber rifles.

WiFi Connectivity

Built in WiFi allows you to connect the FT34 to your mobile device and use it as an external viewfinder. You can also instantly transfer images and video on the go.

IP67 Weatherproof

Be prepared for whatever Mother Nature throws at you – dust, rain, snow or ice. Reliable performance in extreme weather and harsh environments.

Removable and Rechargeable Battery

Powered by a commercially available model 18650 Li-Ion battery you can enjoy up to 5 hours of continuous run time.

Micro SD Card

The Micro SD card is removable, allowing users to expand their device’s storage up to a maximum of 128GB. It also enables effortless file transfer to a computer or other devices, facilitating seamless editing and effortless sharing.

Recoil Activated Recording – Capture Every Shot

Never miss a video opportunity. When the device detects the recoil of a shot, it instantly captures a video record for future viewing.

Operating Temperature

Designed to operate in conditions from -4°F to 122°F.

Specifications

Type Uncooled VOx(vanadium oxide)
Resolution(pixel) 384*288
Pixel Size(µm) 12*12
NETD ≤25mK(0.025℃)
Frame Rate(Hz) 50
Human Detection Distance(m) 1400
Vehicle Detection Distance(m) 2600
Objective Lens(mm) 35
Optical Magnification(x) 1
Digital Zoom(x) N/A
Field of View (Horizontal) 7.5°
Field of View (Vertical) 5.6°
Field of View (Diagonal) 9.4°
Purpose Clip-on
Type OLED
Resolution(pixel) 1440*1080
Scene Mode City/Rain/Forest
Image Mode WT-HOT/BK-HOT/EDGE/RD-HOT/IN-HOT/SKY
Photo Resolution(pixel) 2592*1944
Photo Format .JPG
Video Resolution(pixel) 1024*768
Video Format .mp4
Storage(GB) Micro SD card (Max. 128GB)
Image Engine Pard IREA
Purpose Clip-on
LRF Detection Range 1097m/1200yds
Self-motivated Recording Yes
Loop Recording Yes
Shutter Mechanical Shutter
Microphone Yes
Illuminator(LM) 100
Firmware Upgrade Yes
USB Type-C Yes
WiFi Yes
Supported Apps PardVision
Battery Type Lithium Ion 18650
Output Voltage(V) 3.7
Operating Time(h,max) ≤5
External Power Supply(V) Type-C
Protective Class IP67
Operating Temp(°F) -4~122
Recoil Resistance(J) 6000
Housing Aluminum Alloy
