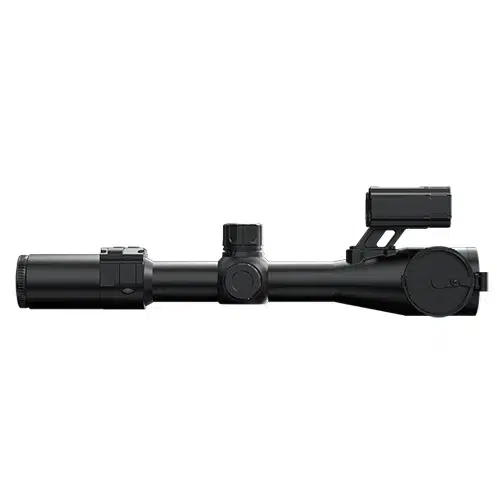

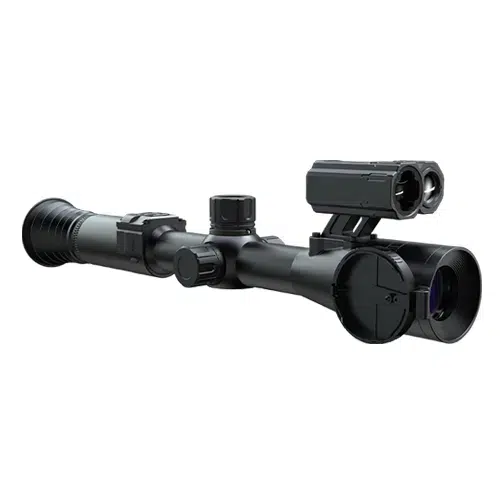

PARD DS35 LRF Day & Night Vision Riflescope
Step up your night vision game with the PARD DS35 LRF Day & Night Vision Riflescope. Never miss a detail with their 70mm objective lens and 850 mn IR illuminator.
PARD DS35 LRF Features
Ultra Clear IPS LCD Display
The DS series scopes feature an 800×800 LCD circular digital display that delivers high resolution images and rich contrast. The extra wide field of view provides exceptional environmental awareness. User experience will closely resemble a traditional glass optical scope.
One Shot Zero
Sighting your scope has never been easier. After taking your first shot, simply move the digital reticle crosshairs to the actual impact point of the projectile on the paper target and save this location in the device. The device will automatically recenter the reticle crosshairs and adjust your new center point to where it should be located for future shots. 1 shot, that’s all it takes.
100mm Eye Relief
Designed with 10mm of eye relief, the Nightstalker 4K ensures a safer shooting experience and reduces peripheral light.
Focus Free Lens Cap
PARD’s innovative design is based on the pinhole effect. This is an optical concept capitalizing on the theory that the smaller the pupil size, the less distortion from spherical aberrations is present. Quite simply, you do not need to refocus the lens during bright daytime use to observe targets at different distances. Just close the pinhole cap which will act as a sunshade.
Extremely Sensitive CMOS Sensor
The CMOS 0.001 low lux image sensor provides detailed, high resolution images in the lowest light situations. The DS35 offers a 2560×1440 (2K) sensor to best suit individual needs.
Integrated Ballistics Calculator
The built in ballistics calculator will accurately calculate the trajectory of the projectile and impact point, based on preprogrammed parameters. The Laser Rangefinder feeds the target distance into the ballistics calculator which instantaneously moves the vertical crosshairs on the reticle to a new holdover point.
Laser Rangefinder
The built in Laser Rangefinder detects targets up to 1200 yards away. The PARD ranging module provides lightning fast detection speed and automatically feeds the ballistics calculator to accurately adjust your shot.
Directional IR Light
You can unscrew the locking ring to focus the IR light to align with your target. Tighten it to hold that position for future shots.
4 Scene Modes Available
Select from 4 individual scene modes that will help increase contrast based on environmental conditions.
Self Activated Recording
Self activated recording provides an ongoing 20 second loop that is saved to the onboard RAM memory of the device. When recoil is detected, the RAM video is automatically moved to the removable TF card. You never have to worry about remembering to turn the video recording on or about overwriting other footage. Never miss that special shot of a lifetime.
Interactive Control Knob
The convenient location of the control knob allows the user to quickly and easily change between menu options and operates the ballistic calculator when in hunting mode. You can adjust and operate the DS35 with this single knob.
Simple User Interface (UI)
The PARD UI is simple and easy to use. All scope parameters are displayed on either side of the reticle, leaving the middle of the display clear to view the target.
IP67 Waterproof
Be prepared for any outdoor adventure and extreme weather conditions. This device is waterproof and IP67 rated, ensuring that it performs flawlessly in a variety of harsh outdoor environments such as wet and moist weather and snow for operational reliability.
Photo Videos
Capture and record hunting memories. Share the high resolution digital content with friends, family and through social media.
6 Reticle Options
Personalize your individual preferences with 4 color options and 6 reticle styles. You can save 5 individual profiles to support different ammunition and different rifles.
WiFi
Built in WiFi allows you to connect to your phone or tablet as an external viewfinder and you can transfer images and videos instantly.
Firmware Upgrade
Firmware updates have become more intuitive, easier and convenient. You can automatically update the firmware using the TF card at home.
Objective Lens
The DS is available with 2 different lens options – 50mm and 70mm. The 50mm lens has a wider field of view while the 70mm lens provides higher magnification.
Lens Lever
The index lever is easy to find with your off-hand to make focus adjustments, even when you are engaged with a target. No more having to pull up to try to find the focus ring and then try to reacquire target.
18650 Lithium-Ion Rechargeable Battery
The DS35 is powered by a model 18650 Li-Ion rechargeable battery, providing up to 8 hours of run time. 18650 batteries are inexpensive and commercially available.
Recoil Resistance
The DS scope can withstand up to 6000J of force, roughly equivalent to a .308 caliber.
Specifications |
||||||
Resolution(px) | 2560*1440 | |||||
Pixel size(um) | 2.9um | |||||
Sensitivity(lux) | 0.001lux | |||||
Frame rate(fps) | 30fps(night); 60fps (day) | |||||
Image Engine | PARD VLEA | |||||
Objective lens | 70mm F2.4 | |||||
Optical Magnification(x) | 5.6x | |||||
Digital zoom(x) | 2x | |||||
PIP(x) | 2x | |||||
Continuous digital zoom | 5.6-22.4x | |||||
Field of view (HxV) | 3.4º / 3.4º / 4.8º | |||||
Focus range | 5m-∞ | |||||
Eye relief(mm) | 100mm | |||||
Exit pupil(mm) | 10mm | |||||
Diopter adjustment(°) | -3D~+5D | |||||
IR Type | VCSEL | |||||
IR power | 5W | |||||
IR illuminating level | 3 levels | |||||
IR distance(m) | 350m | |||||
IR Wavelength(nm) | 850nm/940nm | |||||
Display Type | IPS LCD | |||||
Resolution(px) | 800*800 | |||||
Reticle Styles | 6 | |||||
Reticle Color | white, yellow, green | |||||
Color mode | Color, Mono BW, Mono Green, Mono Yellow | |||||
Photo resolution(px) | 2560*1440 | |||||
Photo format | JPG | |||||
Video resolution(px) | 1920*1080 | |||||
Video format | MP4 | |||||
Storage(GB) | TF card(128GB) | |||||
PIP | Yes | |||||
LRF detection range(yds) | 1200yds | |||||
Ballistic calculator | Yes | |||||
Range unit selection | meter/yard | |||||
Gyroscope | Yes | |||||
Self-activated recording | Yes | |||||
Auto recording | Yes | |||||
Loop recording | Yes | |||||
Time stamp | Yes | |||||
Record audio | Yes | |||||
Beep sound | Yes | |||||
Exposure compensation | Yes | |||||
USB Type-C | TYPE C | |||||
HDMI Output | Yes | |||||
WiFi | Yes | |||||
Supported Apps | PardVision | |||||
Battery type | Lithium Ion18650 | |||||
Output voltage(V) | 3.7 | |||||
Operating time(h,max) | 8 | |||||
External power supply(V) | USB Type-C | |||||
Degree of protection | IP67 | |||||
Operating temp(°C) | -20 – 50 | |||||
Recoil Power(J) | 1000G | |||||
Housing | Aluminium Alloy | |||||
Objective lens | Glass | |||||
Product dimension(L x W x H, mm) | L350mm*W88mm*H95mm(W/O Long Eyepiece) L410mm*W88mm*H95mm(W/ Long Eyepiece) |
