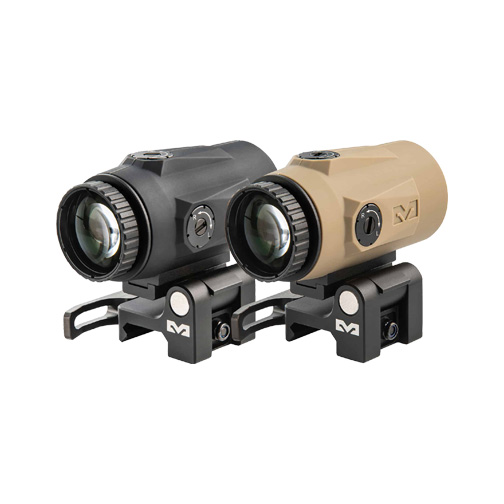

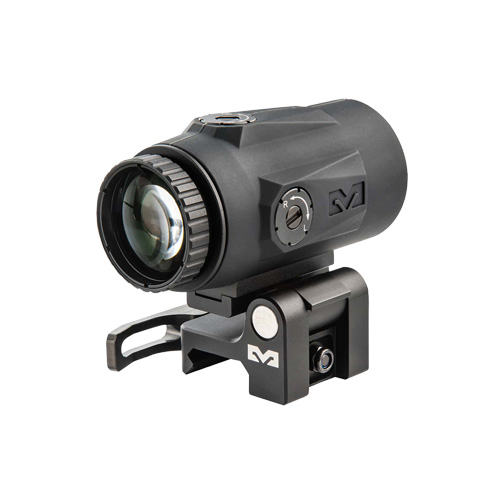

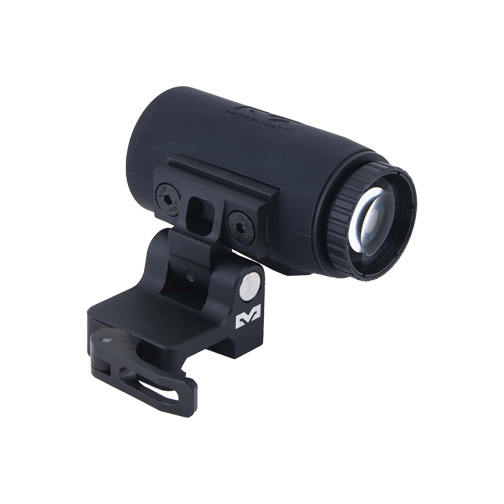

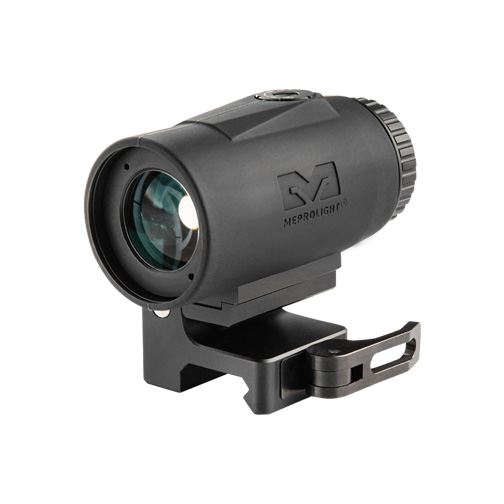

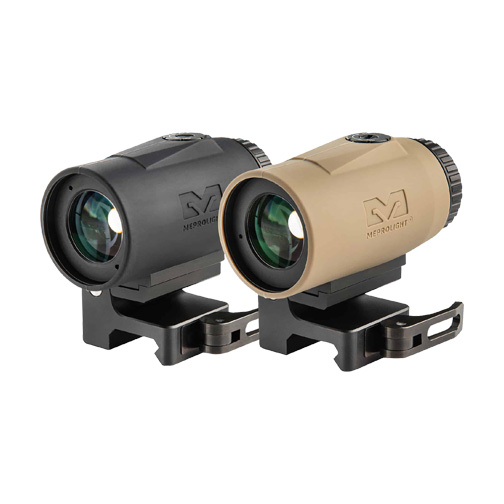

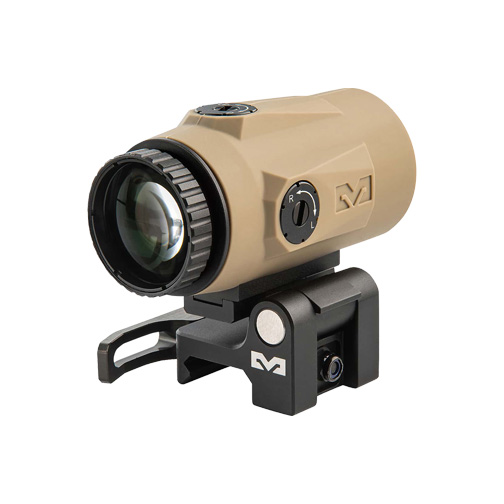

Meprolight MMX4 4x Micro Magnifier w/ Integrated Side Flip Adaptor
The Meprolight MMX4 4x Micro Magnifier is a compact, lightweight magnifier that will extend your effective range of your red dot or 1x reflex sight. Weighing in at 6.9 oz it reduce the footprint, saving rail space and weight on your firearm. Elevation and windage dials provide precise FOV lien of sight alignment. A wide FOV enables rapid target acquisition with both eyes open which is ideal where agility, and speed are of the utmost importance. The Meprolight MMX4 micro magnifier attaches to any MIL-STD-1913 rail directly behind your optic. When not in use the Meprolight MMX4 can be “flipped” out of the way by depressing a pushbutton.
Meprolight MMX4 Features
Increases the effective range of red dot sights
Enables rapid target identification
Works with both 1.5″ and 1.93″ height over bore optics (riser supplied)
No zeroing required
Integrated side flip adapter with Picatinny adapter
Two protective rubber covers included
Specifications |
||||||
| Magnification | 4x | |||||
| Objective diameter | 24 mm | |||||
| Exit Pupil | 6 mm | |||||
| Length | 3.2″ (82 mm) | |||||
| Center Height | 1.4″ (36 mm) | |||||
| Center Height with Riser | 1.74″ (44.4 mm ) | |||||
| Net Weight with mount | 10.01 oz (284 g) | |||||
| Eye Relief | 2.89″ (73.4 mm ) | |||||
| Angular Field of View | 5.5° | |||||
| Diopter adjustment | +/- 2.5 | |||||
| W&E Travel Range | ≥60 MOA | |||||
| Storage Temperature | -22°F to 76°F (-30° to 25°) | |||||
| Working Temperature | -4°F to 122°F (-20° to 50°) | |||||
| Submersion | IPX7 | |||||
