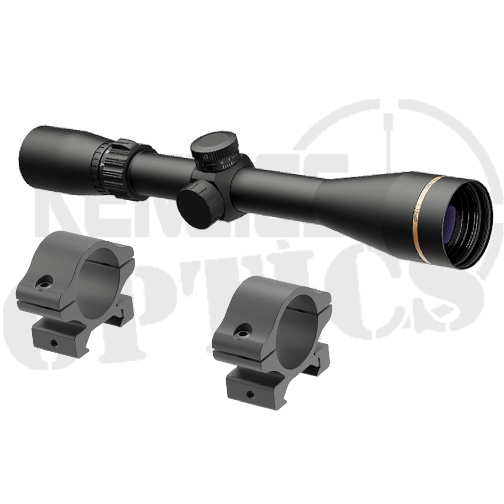

Leupold VX-Freedom 4-12x40mm Scope w/ CDS Duplex Reticle & Rifleman 1 Inch Rings Low Height Bundle
Leupold VX-Freedom 4-12x40mm Scope
The Leupold VX-Freedom 4-12x40mm scope is built on Leupold’s legendary dependability and performance. It features 1/4 MOA precision finger click adjustments for windage and elevation offers absolute repeatability and dependability. The ultra lightweight scope features a scratch resistant lens and is waterproof and fog proof.
Leupold VX-Freedom 4-12x40mm Scope Features
Easy To Grip Power Selector
Quickly change magnifications using the easy to grip power selector
Punisher Tested
Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.
Rear Focal Plane (RFP)
Rear focal plane reticles remain fine and minimally cover the target at high power. Subtensions change with zoom, allowing tuning of ballistic reticles.
Ultra Lightweight Design
Disperses recoil energy for unrivaled durability and performance with ultra lightweight construction
3:1 Zoom Ratio
A versatile 3:1 zoom ratio erector system that is ideal for a wide range of situations.
1/4 MOA Finger Click
1/4 MOA precision finger click adjustments for windage and elevation offer absolute repeatability and dependability over a lifetime of extreme use.
Waterproof & Fog Proof
Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.
One inch Maintube
Ultra lightweight 1-inch maintube provides weight savings, durability, and a classic look
Twilight Light Management System
See more in less light with Twilight Light
Management System
Adds up to 10 extra minutes of shooting light
Eliminates 80% more glare-producing stray light than competitors
Premium lens clarity
Scratch Resistant Lenses
Extreme Military Standard scratch resistance for added protection
Specifications |
||||||
| Length – A (in) | 12.17 | |||||
| Mounting Space – B (cm) | 13.1 | |||||
| Illustration – C | 2.09 | |||||
| Illustration – D | 1.85 | |||||
| Eyepiece Length – E | 3.50 | |||||
| Objective Length – F | 3.51 | |||||
| Objective Diameter – G | 1.83 | |||||
| Eyepiece Diameter – H | 1.56 | |||||
| Tube Diameter- k (in) | 1.00 | |||||
| Tube Diameter- k (mm) | 25.4 | |||||
| Mounting Space – B (in) | 5.16 | |||||
Specifications |
||||||
| Weight (oz) | 13.1 | |||||
| Linear FOV (ft/100 yd) – Low | 21.5 | |||||
| Linear FOV (ft/100 yd) – High | 10.0 | |||||
| Length (in) | 12.17 | |||||
| Linear FOV (m/100 m) – Low | 7.17 | |||||
| Linear FOV (m/100 m) – High | 3.32 | |||||
| Length (cm) | 30.9 | |||||
| Eye Relief (in) – Low | 4.92 | |||||
| Eye Relief (in) – High | 3.74 | |||||
| Eye Relief (mm) – Low | 125 | |||||
| Eye Relief (mm) – High | 95 | |||||
| Weight (g) | 371 | |||||
| Elevation Adjustment Range (MOA) | 80 | |||||
| Elevation Adjustment Range (MIL) | 23.3 | |||||
| Windage Adjustment Range (MOA) | 80 | |||||
| Windage Adjustment Range (MIL) | 23.3 | |||||
| Exit Pupil (mm) – High | 3.4 | |||||
Leupold Rifleman Rings
The Leupold Rifleman Detachable Rings are extremely affordable and exceptionally well made, Leupold’s Rifleman mount’s are precision machined from aircraft grade aluminum for exceptional strength and lighter weight.
Rifleman scope rings are made with the proven cross bolt design and will fit Rifleman scope bases, as well as any Weaver style scope base. The Rifleman 2 piece bases provide a reliable, highly stable platform for mounting Weaver compatible optics. Constructed of anodized aluminum with steel screws, these bases install easily on a variety of rifles and shotguns, and offer lasting rigidity for reliable performance in tough environments.
Nothing is more crucial than the link between your scope and firearm. That’s why Leupold mounts are every bit as rugged and dependable as the Leupold optics they secure. And with a huge variety of mounting systems to pick from, you’re sure to find the perfect match for your firearm and style of shooting.
Leupold Rifleman Features
Affordable Rifleman Mounts
These high quality mounts are affordable, just like the Rifleman scope.
Bases for many popular rifle models.
Bases are for many popular rifle models.
Integral see thru mount systems
Helps for rapid transition from iron sights to a magnified optic
Specifications |
||
| Weight | 2.3 oz | |
| Height | .61 | |
| Ring Diameter | 1 inch | |
