Leupold VX-6HD Gen 2 4-24×52 CDS-SZL2 Side Focus Riflescope – Illuminated TMOA
Whether you’re in the field or at the range, you never know what distance an opportunity might present itself, and this is where the Leupold VX-6HD Gen 2 4-24x52mm comes in. Having the ability to walk around on 4x and knowing you can quickly go all the way up to 24x gives you the flexibility and ability to hit smaller targets with precision and aim at larger targets across valleys and canyons with confidence.
Leupold VX-6HD Gen 2 Features
6:1 Zoom Ratio
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.), so you can dial your power way down for close encounters or all of the way up for long-range shots. The larger the zoom ratio, the more versatile one scope can be.
Professional-Grade Optical System
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
High-Definition Performance
Experience the difference with Leupold’s High-Definition lenses, which provide unparalleled clarity, color, and image resolution at all magnification levels.
Integrated Throw Lever
The integrated, low-profile throw lever makes changing magnifications quick and easy.
Precision Side Focus
The side focus adjusts the scope’s parallax, making the reticle appear more clear and have less perceived movement when you’re shooting at different distances. (available on select models)

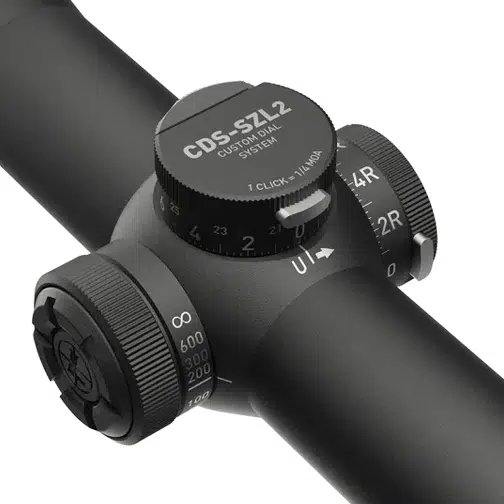

Custom Dial System
Leupold’s Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
SpeedSet Dial
The innovative SpeedSet dial eliminates the need for tools when zeroing or changing custom dials.
Guard-ion is a hydrophobic lens coating that sheds dirt and water for a maintenance-free, clear, crisp image.
Illuminated Reticle
This scope comes with an illuminated reticle,
ZeroLock Dial
The ZeroLock® system eliminates accidental dial movement by locking it in place and allows for repeatable returns to zero.
Guard-ion Lens Coating
which creates a visible aiming point for greater accuracy in low-light conditions.
Electronic Reticle Level
The Electronic Reticle will flash when the scope isn’t level, promoting more accurate long-range shots. It can also simplify the mounting process.
Motion Sensor Technology (MST)
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Alumina Flipback Lens Covers Included
Our high-quality Alumina® flip-back lens covers thread onto the scope to protect the lens from moisture, dirt, and debris.
Waterproof, Fogproof, & Shockproof
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Leupold Lifetime Guarantee
This product is guaranteed to perform for life. If your Leupold riflescope, binocular, red dot or spotting scope doesn’t perform, we will repair or replace it for free – whether you’re the original owner or not. You don’t need proof of ownership or a warranty card, and there’s no time limit. We do this because we believe in superior quality and craftsmanship, and we’re confident your Leupold won’t let you down.
Specifications |
||||||
| Adjustable Parallax | Side Focus | |||||
| Battery Type | CR2032 | |||||
| BDC Dial Included | No | |||||
| Custom BDC Dial Compatible | Yes | |||||
| Daylight Bright Illumination | No | |||||
| Elevation Adjustment Type | CDS-SZL2 | |||||
| Locking Dial | Yes | |||||
| Magnification Type | Variable | |||||
| Nightvision Compatible Illumination | No | |||||
| Reticle Focal Plane | Second Focal Plane | |||||
| Revolution Indicator | Yes | |||||
| Reticle Illum. | TMOA | |||||
| Rezero Type | SpeedSet | |||||
| Reticle Type | Illuminated | |||||
| Adjustable Objective | No | |||||
| Precision Side Focus | Yes | |||||
| Switch Type | Push Button | |||||
| Windage Adjustment Type | Zero-Lock WIndage | |||||
| Weight (oz) | 26.2 | |||||
| Elevation Adjustment Value per Click | 1/4MOA | |||||
| Elevation Adjustment Range (MOA) | 100 | |||||
| Elevation Adjustment Range (MIL) | 29 | |||||
| Elevation Adjustment Range (cm @ 100m) | 291 | |||||
| Elevation Adjustment Per Revolution | 20 MOA | |||||
| Elevation Dial Travel Limit | 38MOA | |||||
| Windage Adjustment Value per Click | 1/4MOA | |||||
| Windage Adjustment Range (MOA) | 100 | |||||
| Windage Adjustment Range (MIL) | 29 | |||||
| Windage Adjustment Range (cm @ 100m) | 291 | |||||
| Windage Adjustment Per Revolution | 20 MOA | |||||
| Magnification Max | 24 | |||||
| Magnification Min | 4 | |||||
| Objective Lens Diameter (mm) | 52 | |||||
| Linear FOV Low Mag (ft@100yds) | 28.1 | |||||
| Linear FOV High Mag (ft@100yds) | 4.8 | |||||
| Angular FOV Low Mag (Degrees) | 5.4 | |||||
| Angular FOV High Mag (Degrees) | .9 | |||||
| Eye Relief Low Mag (in) | 3.7 | |||||
| Eye Relief High Mag (in) | 3.8 | |||||
| Minimum Parallax-Free Distance (yd) | 50 | |||||
| Battery Life (hr), Low Intensity | 1600 | |||||
| Battery Life (hr), Medium Intensity | 1000 | |||||
| Battery Life (hr), High Intensity | 300 | |||||
| Number of Illum Settings | 8 | |||||
Specifications |
||||||
| Total Length (in) – A | 12.03 | |||||
| Total Mounting Space (in) – B | 4.62 | |||||
| Front Mounting Space (in) – C | 1.55 | |||||
| Rear Mounting Space (in) – D | 1.85 | |||||
| Eyepiece Length (in) – E | 3.5 | |||||
| Objective Length (in) – F | 3.91 | |||||
| Objective Diameter (in) – G | 2.3 | |||||
| Eyepiece Diameter (in) – H | 1.56 | |||||
| Maintube Diameter (mm/in) – K | 1 inch | |||||
