Leupold Patrol 6HD 1-6×24 Scope
The Leupold Patrol 6HD 1-6×24 fulfills your needs whether your mission is to protect and serve or you are looking for an edge in competition, this battle ready scope will help you put more rounds on target. If you are looking for a scope that will allow you to go on your next mission without worry the The Leupold Patrol 6HD 1-6×24 is the scope for you. It features an ultra lightweight, low profile design, 1-6 magnification range that lets you engage threats anywhere from tight corners to open fields.
Built on Leupold’s Professional Grade Optical System, it offers unmatched light transmission, industry leading glare reduction, and the clarity and resolution law enforcement officers trust in the most challenging lighting conditions. The Leupold 6HD Patrol will take your lowlight capabilities to the max with an illuminated reticle that draws your eye to the center of the glass for fast, accurate shot placement. A push button illumination control guarantees smooth operation under stress.
Leupold Patrol 6HD 1-6×24 Features
6:1 Zoom Ratio
A versatile 6:1 zoom ratio gives you 6 times more magnification at high power than at low power (model magnification ranges are available in powers of 6x: 1-6, 2-12, 3-18, 4-24, etc.) so you can dial your power way down for close encounters or all of the way up for long range shots. The larger the zoom ratio, the more. Versatile one scope can be.
Guard Ion
Guard Ion is a hydrophobic lens coating that sheds dirt and water for a maintenance free, clear, crisp image.
High Definition
High definition, calcium fluoride lenses ensure incredible clarity at all magnification levels.
CDS-ZL2 Elevation Dial
The CDS-ZL2 (ZeroLock 2) provides two revolutions of elevation adjustment while eliminating accidental dial movement with the push button ZeroLock system. It also features Leupold’s award winning Custom Dial System (CDS), which allows users to order a laser marked bullet drop dial to match their exact ballistics and conditions.
Electronic Reticle Level
The Electronic Reticle will flash when the scope isn’t level, promoting more accurate long range shots. It can also simplify the mounting process.
Alumina Flipback Lens Covers Included
Leupold’s high quality Alumina flipback lens covers thread onto the scope to protect the lens from moisture, dirt and debris.
Reversible Throw Lever
This reversible throw lever easily clamps onto specific power selector rings. Its large surface area makes it ideal for quick magnification changes.
Waterproof, Fogproof & Shockproof
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
Specifications |
||||||
Adjustable Objective | No | |||||
Side Focus | No | |||||
Reticle Focal Plane | Second Focal Plane | |||||
Elevation Adjustment Type | CDS-ZL2 | |||||
Locking Dial | Yes | |||||
Revolution Indicator | No | |||||
Rezero Type | Set Screw | |||||
Windage Adjustment Type | Pop-Up Rezero | |||||
Custom Dial System (CDS) | Yes | |||||
Custom Dial Compatible | No | |||||
BDC Dial Included | No | |||||

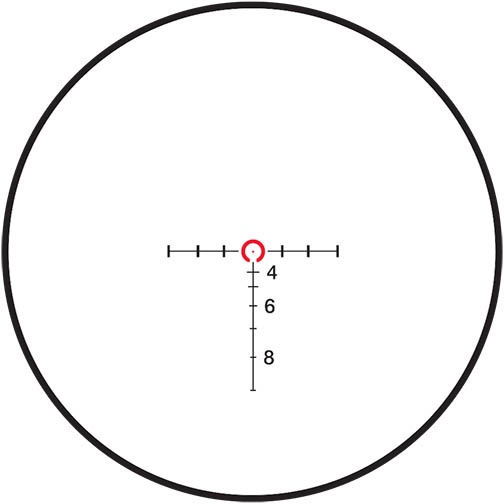

Reticle | Illum. CM-R2

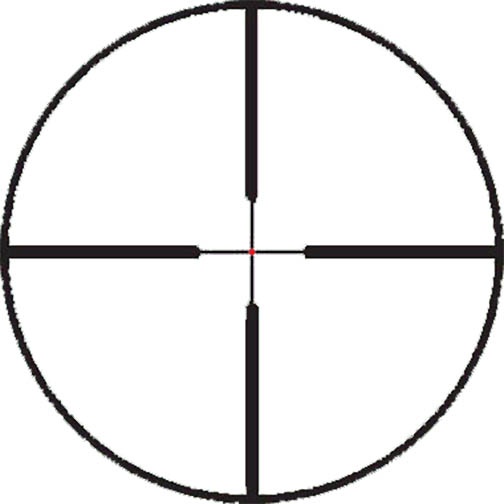

Illum. FireDot Duplex |
|||||
Light Management System | Professional-Grade Optical System | |||||
Battery Type | CR2032 | |||||
Switch Type | Push Button | |||||
Illuminated | Yes | |||||
Nightvision Compatible Illumination | No | |||||
Daylight Bright Illumination | No | |||||
Motion Sensor Technology (MST) | No | |||||
Weight (oz) | 16.2 | |||||
Elevation Adjustment Value per Click | 1/4MOA | |||||
Elevation Adjustment Range (MOA) | 170 | |||||
Elevation Adjustment Range (MIL) | 49 | |||||
Elevation Adjustment Range (cm @ 100m) | 495 | |||||
Elevation Adjustment Per Revolution | 20 MOA | |||||
Elevation Dial Travel Limit | 38MOA | |||||
Windage Adjustment Value per Click | 1/4MOA | |||||
Windage Adjustment Range (MOA) | 170 | |||||
Windage Adjustment Range (MIL) | 49 | |||||
Windage Adjustment Range (cm @ 100m) | 495 | |||||
Windage Adjustment Per Revolution | 20 MOA | |||||
Magnification Max | 6 | |||||
Magnification Min | 1 | |||||
Objective Lens Diameter (mm) | 24 | |||||
Linear FOV Low Mag (ft@100yds) | 120.9 | |||||
Linear FOV High Mag (ft@100yds) | 19.2 | |||||
Angular FOV Low Mag (Degrees) | 22.8 | |||||
Angular FOV High Mag (Degrees) | 3.7 | |||||
Eye Relief Low Mag (in) | 3.7 | |||||
Eye Relief High Mag (in) | 3.8 | |||||
Fixed Parallax-Free Distance (yd) | 150 | |||||
Battery Life (hr), Low Intensity | 1600 | |||||
Battery Life (hr), Medium Intensity | 1000 | |||||
Battery Life (hr), High Intensity | 300 | |||||
Number of Illum Settings | 8 | |||||
Objective Length (in) | 0 |
