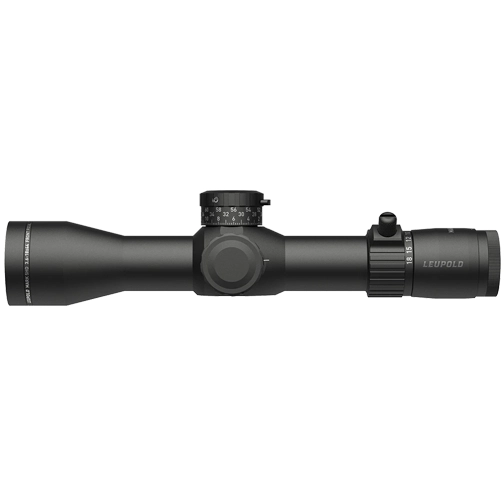

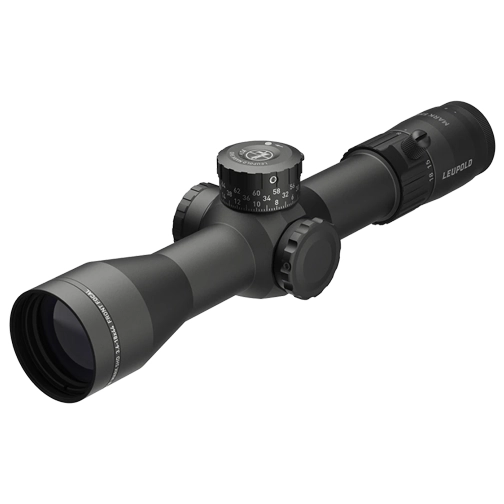

Leupold Mark 5HD 3.6-18×44 M1C3 FFP Riflescope
The Leupold Mark 5HD 3.6-18×44 offers three revolutions of adjustments giving it the ability to max out the performance of the latest long range rifles and ammo. Ergonomically designed with more tactile, audible click adjustments, larger numbers, and a high speed throw lever so you can put accurate fire downrange faster.
Leupold Mark 5HD 3.6-18×44 Features
Punisher Tested
Each scope design has to survive 5,000 impacts on the Punisher, Leupold’s recoil simulation machine. The force of each impact is 3x the recoil of a .308 rifle. If the scope doesn’t perform in any way during the tests, we make adjustments to the design and test it again.
Fast Focus Eyepiece
Brings the reticle into focus quickly with Fast Focus eyepiece
Scratch Resistant Lenses
Extreme Military Standard scratch resistance for added protection
Ultra Lightweight Design
Disperses recoil energy for unrivaled durability and performance with ultra lightweight construction
Waterproof & Fog Proof
Absolute waterproof and fog proof integrity means it’s ready to perform in the field, in all conditions.
M1C3 Adjusment
1/4 MOA dial with three revolutions of travel, a push button ZeroLock, and a revolution indicator.
Guaranteed For Life
Guaranteed to perform for life, backed by a lifetime warranty
Side Focus
Side focus parallax adjustment for fast, easy parallax focusing from any shooting position.
Front Focal Plane (FFP)
The reticle magnifies along with the image, so you can estimate range at all magnification settings. These reticles are ideal in tactical situations, yet also provide greater accuracy of range estimation for hunters and target shooters.
Twilight Max HD Light Management System
See more in less light with Twilight Max HD Light
Management System
Adds up to 30 extra minutes of shooting light
Eliminates 90% more glare producing stray light than competitors
Premium high definition edge to edge lens clarity
Throw Lever
Allows for near instant magnification changes.
5:1 Zoom Ratio
Versatile magnification range offers a wide field of view at low power and precise target identification at high power.
Mark 4 Dial Illumination Control
Positive clicks and clear numerical intensity level indicators: Mark Series product also include off positions between each illumination intensity setting to allow quick return to a preferred brightness.
Specifications |
||||||
| Length – A (in) | 12.06 | |||||
| Mounting Space – B (cm) | 15.1 | |||||
| Illustration – C | 1.68 | |||||
| Illustration – D | 1.98 | |||||
| Eyepiece Length – E | 3.27 | |||||
| Objective Length – F | 2.85 | |||||
| Objective Diameter – G | 2.10 | |||||
| Eyepiece Diameter – H | 1.76 | |||||
| Tube Diameter- k (mm) | 35 | |||||
| Mounting Space – B (in) | 5.94 | |||||
Specifications |
|
| Weight (oz) | 26 |
| Linear FOV (ft/100 yd) – Low | 28.4 |
| Linear FOV (ft/100 yd) – High | 5.8 |
| Length (in) | 12.06 |
| Linear FOV (m/100 m) – Low | 9.45 |
| Linear FOV (m/100 m) – High | 1.92 |
| Length (cm) | 30.6 |
| Eye Relief (in) – Low | 3.54 |
| Eye Relief (in) – High | 3.82 |
| Eye Relief (mm) – Low | 90 |
| Eye Relief (mm) – High | 97 |
| Weight (g) | 737 |
| Elevation Adjustment Range (MOA) | 100 |
| Elevation Adjustment Range (MIL) | 29.1 |
| Windage Adjustment Range (MOA) | 80 |
| Windage Adjustment Range (MIL) | 23.3 |
| Exit Pupil (mm) – High | 2.4 |
