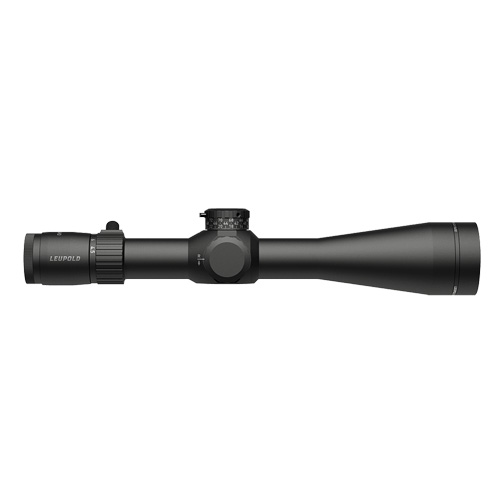

Leupold Mark 4HD 4.5-18×52 M1C3 Side Focus FFP Riflescope – PR2-MOA Reticle
Ready your rifles with a versatile Leupold Mark 4HD 4.5-18×52. Leupold took the legendary performance of its predecessors and gave it a slimmer maintube that’s been packed full of professional-grade features. Whether you’re a dedicated enthusiast or a seasoned expert, the Mark 4HD’s optical clarity and lightweight design will get the job done at the range or in the field.
The Leupold Mark 4HD series features five magnification ranges, providing you with an accurate and reliable option for close-quarter engagements, long-range dominance, and everything in between. They’re available with a three-turn elevation dial for unmatched confidence at extreme distances, a precise ZeroLock windage adjustment that won’t budge when knocked around, and a side focus that delivers tack-sharp images as close as 25 yards. And like all Leupold riflescopes, they’re waterproof, fogproof, and backed by Leupold’s lifetime guarantee.
Leupold Mark 4HD 4.5-18×52 Features
4:1 Zoom Ratio
A 4:1 zoom ratio strikes the perfect balance between weight and versatility, giving you plenty of magnification options without weighing you down. Model magnification ranges are available in powers of 4x: 1-4.5, 2.5-10, 4.5-18, and 8-32.
Professional Grade Optical System
Leupold’s Professional-Grade Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
Motion Sensor Technology (MST)
Motion Sensor Technology (MST) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
Waterproof, Fogproof & Shockproof
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.

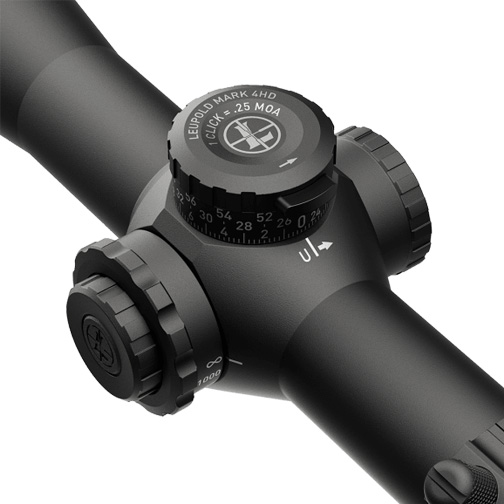

M1C3 Adjustments
These low-profile dials are available on select models and provide up to 71.5MOA of adjustment in 3 revolutions and 1/4 MOA clicks. Visual and tactile revolution indicators ensure you don’t get lost in the travel. The ZeroLock feature prevents inadvertent adjustments and ensures accurate return to zero.
Side Focus
The side focus adjusts the scope’s parallax, making the reticle clearer and have less perceived movement when you’re shooting at different distances.
Custom Dial Compatible
Leupold’s Custom Dial System (CDS) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
ZeroLock Dial
A 4:1 zoom ratio strikes the perfect balance between weight and versatility, giving you plenty of magnification options without weighing you down. Model magnification ranges are available in powers of 4x: 1-4.5, 2.5-10, 4.5-18, and 8-32.
PR2-MOA Reticle
Specifications |
||||||
Adjustable Parallax | Side Focus | |||||
BDC Dial Included | No | |||||
Daylight Bright Illumination | No | |||||
Custom Dial System (CDS) | No | |||||
Elevation Adjustment Type | M1C3 | |||||
Electronic Reticle Level | No | |||||
Guard-ion Lens Coating | No | |||||
Illuminated | No | |||||
Locking Dial | Yes | |||||
Magnification Type | Variable | |||||
Nightvision Compatible Illumination | No | |||||
Revolution Indicator | Yes | |||||
Reticle | FFP PR2-MOA | |||||
Rezero Type | Set Screw | |||||
Reticle Type | First Focal Plane | |||||
Adjustable Objective | No | |||||
Windage Adjustment Type | Zero-Lock WIndage | |||||
Weight (oz) | 27.5 | |||||
Elevation Adjustment Value per Click | 1/4MOA | |||||
Elevation Adjustment Range (MOA) | 125 | |||||
Elevation Adjustment Range (MIL) | 36 | |||||
Elevation Adjustment Range (cm @ 100m) | 360 | |||||
Elevation Adjustment Per Revolution | 25 MOA | |||||
Elevation Dial Travel Limit | 71.5MOA | |||||
Windage Adjustment Value per Click | 1/4MOA | |||||
Windage Adjustment Range (MOA) | 65 | |||||
Windage Adjustment Range (MIL) | 18 | |||||
Windage Adjustment Range (cm @ 100m) | 180 | |||||
Windage Adjustment Per Revolution | 24 MOA | |||||
Magnification Max | 18 | |||||
Magnification Min | 4.5 | |||||
Objective Lens Diameter (mm) | 52 | |||||
Linear FOV Low Mag (ft@100yds) | 23.1 | |||||
Linear FOV High Mag (ft@100yds) | 5.2 | |||||
Angular FOV Low Mag (Degrees) | 4.4 | |||||
Angular FOV High Mag (Degrees) | 1 | |||||
Eye Relief Low Mag (in) | 3.6 | |||||
Eye Relief High Mag (in) | 3.9 | |||||
Minimum Parallax-Free Distance (yd) | 25 |

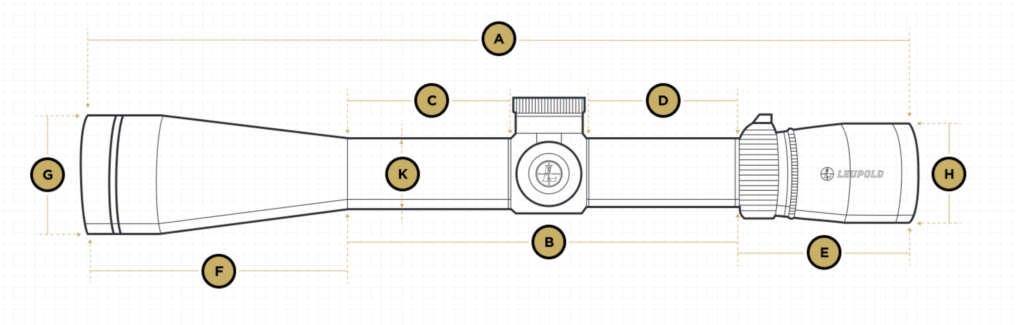

Specifications |
||||||
Total Length (in) – A | 14.6 | |||||
B Total Mounting Space (in) – B | 6.3 | |||||
C Front Mounting Space (in) – C | 1.9 | |||||
D Rear Mounting Space (in) – D | 2.1 | |||||
E Eyepiece Length (in) – E | 3.3 | |||||
F Objective Length (in) – F | 5.1 | |||||
G Objective Diameter (in) – G | 2.4 | |||||
H Eyepiece Diameter (in) – H | 1.8 | |||||
K Maintube Diameter (mm/in) – K | 34 mm |
