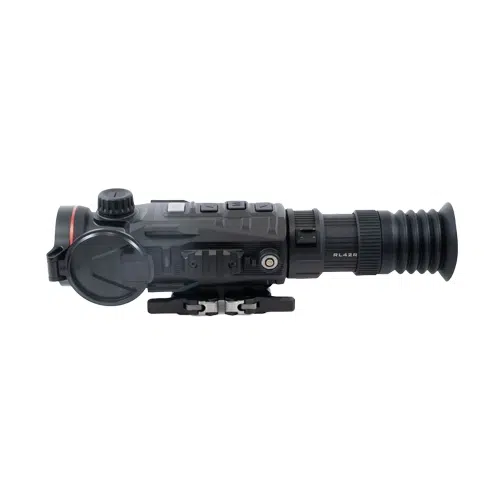

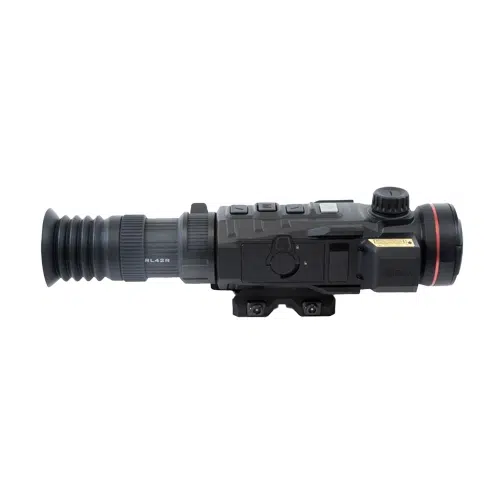

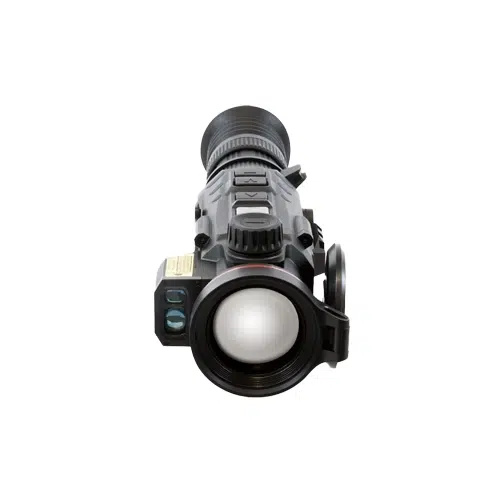

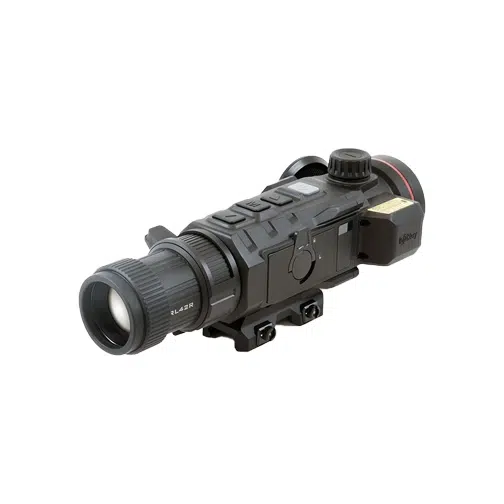

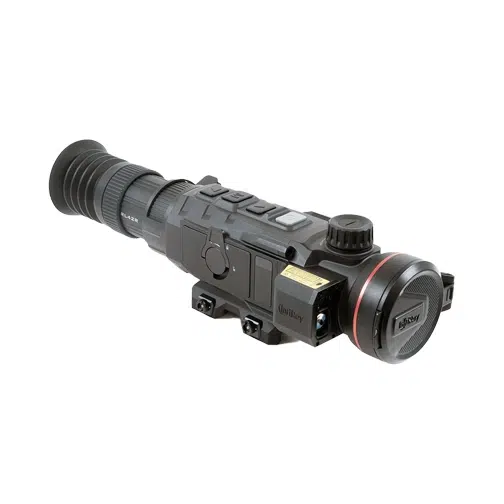

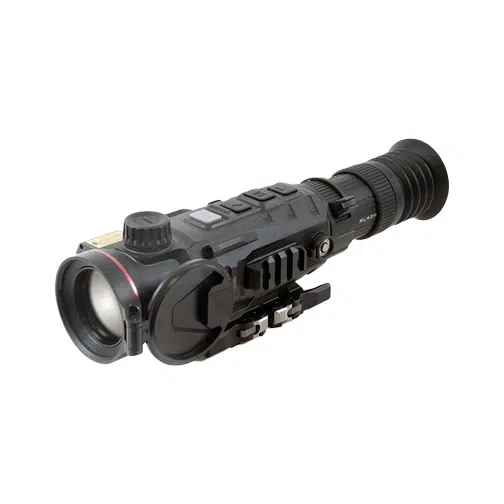

InfiRay Outdoor RL42R Rico Mk2 LRF 384 Thermal Weapon Sight

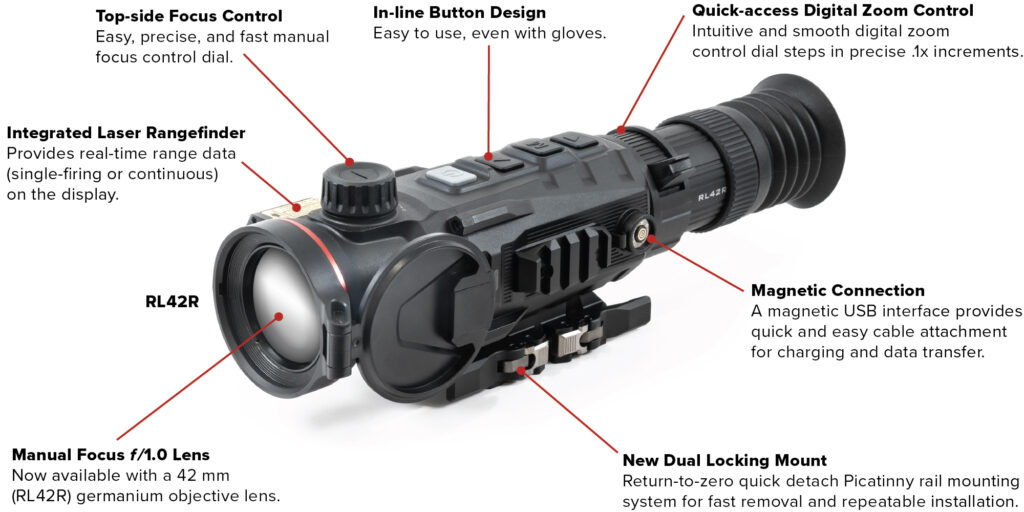

The InfiRay Outdoor RL42R was built upon the original Rico Mk1 series, and was designed with an integrated 1,200 yard capable rangefinder, a 60Hz refresh rate, and increased 20 mK thermal sensitivity rating. The Rico Mk2 features a high performance 12µm Micro II core and an ultra high contrast 2560×2560 AMOLED HD display for an unparalleled viewing experience. It takes its image processing one step further with Advanced Image Correction and Automatic Image Optimization courtesy of its MATRIX III processor. An intuitive and easy to use interface combined with a Picture in Picture function, 5+ hour run time, magnesium housing, 1000 G/s² shock resistance, and 32 GB of internal memory. The Rico Mk2 unlocks advanced features such as a rotating zoom lever, magnetic charging port and recoil activated video.
Specifications |
||||||
| Exit Pupil | 1.0 | |||||
| Eye Relief | 60mm | |||||
| Eyepiece Focal Length | 4.6 | |||||
| Digital Magnification | 4X | |||||
| Vertical Angular Field of View | 4.6 | |||||
| Objective Focusing Range | Germanium | |||||
| Focusing Mechanism | Manual Focus | |||||
| Objective F# | 1.0 | |||||
| Objective Diameter | 42mm | |||||
| Objective Lens Material | Germanium | |||||
| Display Resolution | 2560×2560 | |||||
| Detection Range | 2000 Yards | |||||
| Optical Magnification | 4X | |||||
| Eyepiece Diameter | Manual Focus | |||||
| Display Type | AMOLED | |||||
| Objective Focal Length | 42mm | |||||
| Diopter Range | -3 to +3 | |||||
| Horizontal Angular Field of View | 6.2 | |||||
| Operating Temperature Range | -4°F~122°F | |||||
| Mean Time to Failure | China | |||||
| Ingress Protection | IP67 | |||||
| Recoil Rating | 1000 g/s² (300 Win./7mm Mag) | |||||
| Sensor Pixel Size | 12μm | |||||
| Thermal Sensitivity | <20mk | |||||
| Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic | |||||
| Spectral Response | 384×288 | |||||
| Sensor Frame Rate | 60hz | |||||
| Device Technology | Thermal Imaging | |||||
| Sensor Resolution | 384×288 | |||||
| Sensor Type | InfiRay MICRO II | |||||
| Warranty | 5 Years | |||||
| Startup Time | <10 Seconds, Instant from Standby | |||||
| Color Palettes | White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet | |||||
| Picture-in-Picture | Yes | |||||
| Storage Capacity | 32GB | |||||
| Connector Output | Power/Data | |||||
| Mobile App | Yes | |||||
| Run Time | 5+ | |||||
| Compatible With | 5+ | |||||
| One-Shot Zero | 2560×2560 | |||||
| Stand-by Mode | Yes | |||||
| Connector Type | USB-C | |||||
| External Power Source | USB-C | |||||
| Country of Manufacture | China | |||||
| Wifi | Yes | |||||
| Onboard Recording | Yes | |||||
| Image Capture | Yes | |||||
| Video Output | Yes | |||||
| Rangefinder | Integrated 1200 yd LRF | |||||
| User-Updatable Firmware | Yes | |||||
| Power Source | USB-C External, IBP-5 Li-ion Battery Pack | |||||
| Reticle | 8 (7 Static, 1 DIY) | |||||
| Mounting Interface | 9.50 | |||||
| Housing Material | Magnesium Alloy | |||||
| Height | 3.75 | |||||
| Length | 9.50 | |||||
| Weight | 36.63 Oz. | |||||
| Width | 3.00 | |||||
