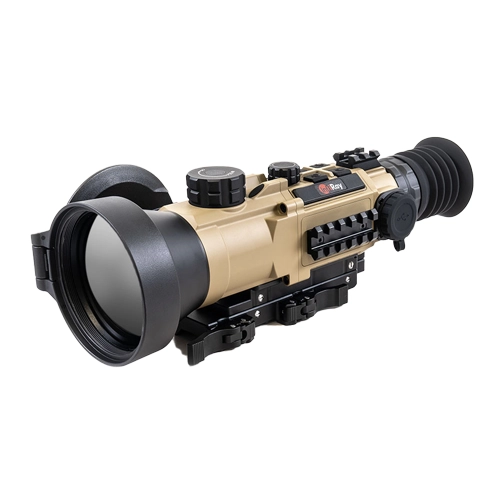

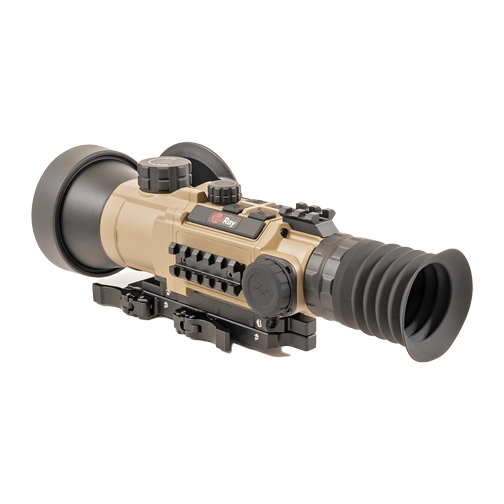

InfiRay Outdoor RICO HYH75W Hybrid Multi-Function Thermal Sight
The InfiRay Outdoor RICO HYH74W HYBRID fuses the capabilities of a thermal clip-on and a thermal weapon sight to create a new breed of thermal device. The HYBRID gives you never-before-seen versatility and performance, boasting a 3,600 yard detection range as a dedicated thermal sight, or compatibility with day optics up to 10× as an inline clip-on sight. The combination of the HYBRID’s low-distortion orthoscopic eyepiece and a 1.03-inch large-format 2560×1920 display provides comfortable viewing as a dedicated sight while still maintaining the pixel density and resolution for use as a clip-on optic. The HYBRID also unlocks advanced features such as compatibility with a 1,000 yard laser rangefinder, a custom reticle generator, Bluetooth remote, and an onboard ballistic solver.
The ILR-1000-2 Laser Rangefinder (AC82 – Sold Separately) connects to the HYBRID via USB-C (data and power), providing real-time ranging data that can even integrate with user-supplied ballistics data and apply hold-over on a custom reticle. See page 45 for details.
PLEASE NOTE: The HYH50W and HYH75W both use a IBP-1 type battery (4400mAh). THE IBP-1 battery that ships with the HYH50W is the same battery used by the RICO Mk1 and RICO Pro Series. The battery that ships with the HYH75W is an enhanced IBP-1 that features the FDE ceramic coated finish and improved ingress protection. The HYH75W will run on the original IBP-1 battery, but will not be IP67 weatherproof in this configuration. For best results, always use the batteries that shipped with the product.
Specifications |
||||||
| Objective Focal Length | 75mm | |||||
| Detection Range | 3600 yards | |||||
| Optical Magnification | 4x | |||||
| Digital Magnification | 8x | |||||
| Objective Lens Material | Germanium | |||||
| Horizontal Angular Field of View | 5.9° | |||||
| Vertical Angular Field of View | 4.4° | |||||
| Objective Diameter | 75mm | |||||
| Objective F# | 1.0 | |||||
| Focusing Mechanism | Manual Focus | |||||
| Eye Relief | 60mm | |||||
| Diopter Range | -4 to +2 | |||||
| Display Type | AMOLED | |||||
| Display Resolution | 2560×1920 | |||||
| Operating Temperature Range | -4°F~122°F | |||||
| Ingress Protection | IP67 | |||||
| Recoil Rating | 1000 g/s² (300 Win./7mm Mag) | |||||
| Device Technology | Thermal Imaging | |||||
| Sensor Type | InfiRay MICRO II | |||||
| Sensor Resolution | 640×512 | |||||
| Sensor Pixel Size | 12μm | |||||
| Sensor Frame Rate | 50Hz | |||||
| Thermal Sensitivity | <25mK | |||||
| Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic | |||||
| Power Source | USB-C External, IBP-1H Li-ion Battery Pack | |||||
| Reticle | 9 (7 Static, 1 DIY, 1 BDC) | |||||
| Color Palettes | White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline | |||||
| Rangefinder | ILR-1000-2 LRF (Optional/Not Included) | |||||
| Standby Mode | Yes | |||||
| One-Shot Zero | Yes | |||||
| Picture-in-Picture | Yes | |||||
| WiFi | Yes | |||||
| Image Capture | Yes | |||||
| Mobile App | Yes | |||||
| User-Updatable Firmware | Yes | |||||
| Connector Type | USB-C | |||||
| Connector Output | Power/Data | |||||
| Onboarding Recording | Yes | |||||
| Storage Capacity | 64GB | |||||
| Run Time | 6+ | |||||
| External Power Source | USB-C | |||||
| Warranty | 5 years | |||||
| Startup Time | <10 Seconds, Instant from Standby | |||||
| Country of Manufacture | China | |||||
| Weight | 45.08 oz | |||||
| Height | 3.58 | |||||
| Width | 4.13 | |||||
| Length | 12.20 | |||||
| Housing Material | Magnesium Alloy | |||||
| Mounting Interface | Picatinny MIL-STD 1913 Rail | |||||
