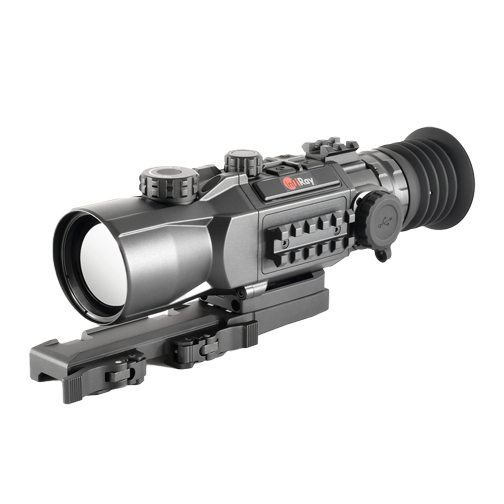

InfiRay Outdoor Rico Hybrid Multi-Function Thermal Weapon Sight

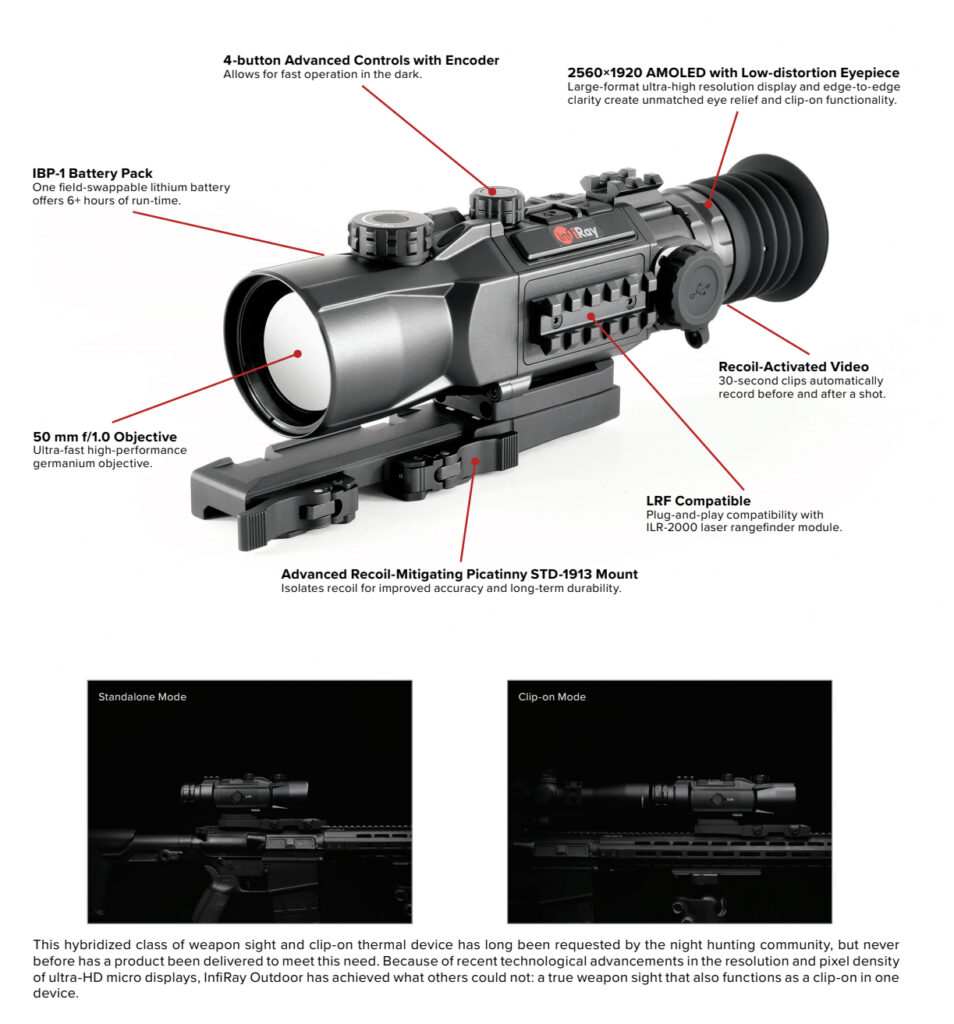

The InfiRay Outdoor Rico Hybrid is a multi-function thermal weapon sight that fueled the capabilities of a thermal clip on and a thermal weapon sight to create a new breed of thermal devices. The Hybrid breed gives you never before seen versatility and performance boasting a 2,400 yard detection range as a dedicated thermal sight or an inline clip-on sight with day optics up to 10x. The combination of the Hybrid’s low-distortion orthoscopic eyepiece paired with a 1.03” 2560×1920 UHD display allows for an extra large sight picture with edge to edge clarity. The sight’s extra large sight picture is comfortable viewing as a dedicated sight, and still maintains the pixel density and resolution for use as a clip-on optic. The Hybrid also unlocks advanced new features such as compatibility with a 2,000 yard laser rangefinder, a custom reticle generator, bluetooth, and an onboard ballistic solver.
Ballistic Solver
The HYH50W supports ballistic calculation via a user-uploaded .xlsx file. Calculate your ballistics with your prefered software, then export and upload your trejectory in 5 meter increments. Once you have a balistic profile loaded, plug in the ILR-2000 laser rangefinder and the HYBRID can calculate your drop and display a second reticle in split second.
Specifications |
||||||
Objective Focal Length | 50mm | |||||
Detection Range | 2400 Yards | |||||
Objective Lens Material | Germanium | |||||
Optical Magnification | 3X | |||||
Digital Magnification | 8X, stepped | |||||
Focusing Mechanism | Manual Focus | |||||
Display Type | AMOLED | |||||
Vertical Angular Field of View | 6.6° | |||||
Horizontal Angular Field of View | 8.8° | |||||
Objective F# | 1.1 | |||||
Objective Diameter | 50mm | |||||
Eye Relief | 60mm | |||||
Diopter Range | -4 – +2 | |||||
Display Resolution | 2560×2560 | |||||
Recoil Rating | 1000 g/s² (300 Win./7mm Mag) | |||||
Operating Temperature Range | -4°F~122°F | |||||
Ingress Protection | IP67 | |||||
Device Technology | Thermal Imaging | |||||
Sensor Type | InfiRay MICRO II | |||||
Sensor Pixel Size | 12μm | |||||
Thermal Sensitivity | ≤25mK | |||||
Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic | |||||
Spectral Response | 8-12 Microns | |||||
Sensor Frame Rate | 50hz | |||||
Sensor Resolution | 640×512 | |||||
Mobile App | Yes | |||||
Wifi | Yes | |||||
Image Capture | Yes | |||||
Connector Type | USB-C | |||||
Video Output | Analog RS-170/NTSC | |||||
Connector Output | Power/Data | |||||
Onboard Recording | Yes | |||||
Warranty | 5 Years | |||||
Reticle | 8 (7 Static, 1 Custom BDC Reticle) | |||||
Color Palettes | White Hot, Black Hot, Red Hot, Iron Red, Rainbow, Outline | |||||
Rangefinder | ILR-2000 LRF (Optional/Not Included) | |||||
Picture-in-Picture | Yes | |||||
Storage Capacity | 64GB | |||||
User-Updatable Firmware | Yes | |||||
One-Shot Zero | Yes | |||||
Stand-by Mode | Yes | |||||
Power Source | Built-In Battery Pack (4+ Hours),IBP-4 Power Bank (6+ Hours) | |||||
Run Time | 6+ | |||||
External Power Source | USB-C | |||||
Startup Time | Under 10 Seconds | |||||
Country of Manufacture | China | |||||
Mounting Interface | Picatinny STD-1913 rail | |||||
Height | 2.99 | |||||
Width | 3.03 | |||||
Length | 11.02 | |||||
Housing Material | Aluminum | |||||
Weight | 40.5 |
