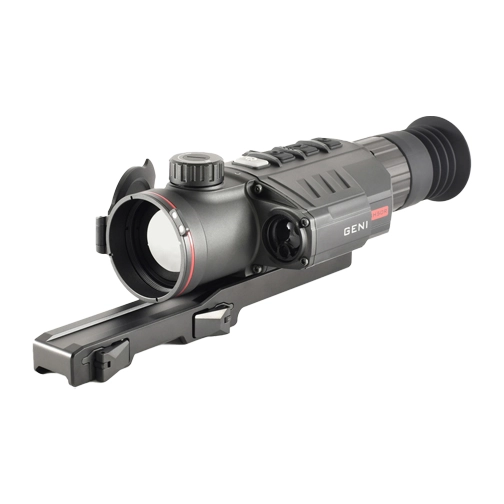

InfiRay Outdoor RICO GH50R LRF Thermal Sight
The IInfiRay Outdoor RICO GH50R LRF was designed to feature industry leading 12μm detector technology and a precision laser range finding module in a single unit. The RICO G-LRF has a 1024×768 AMOLED display to guarantee a crips, high contrast image, while the precision laser range finding module ensures accurate measurement to 1,000 yards. Additional features include image and video capture with 32GB of storage, wireless streaming, and a field swappable 26650 battery with a 7 hour runtime.
InfiRay Outdoor RICO GH50R LRF Features
In-line Button Design
Easy to use, even with gloves.
Manual Focus f/1.1 Lens
Guarantees a sharp image, regardless of distance.
Quick Disconnect Picatinny STD-1913 Mount
Ensures quick and secure mounting across all platforms.
Integrated Laser Rangefinder
Continuous ranging with +/- 1 yard accuracy up to 1,000 yards.
USB-C Connectivity
Battery charging or data transfer via a USB-C connection.
AMOLED Display
1024×768 resolution provides increased clarity and detail.
26650 Battery
Field swappable lithium battery offers 7+ hours of runtime.
Specifications |
||||||
| Detection Range | 2400 Yards | |||||
| Optical Magnification | 3X | |||||
| Objective Focal Length | 50mm | |||||
| Objective Lens Material | Germanium | |||||
| Digital Magnification | 8X, stepped | |||||
| Focusing Mechanism | Manual Focus | |||||
| Display Type | AMOLED | |||||
| Vertical Angular Field of View | 6.6° | |||||
| Horizontal Angular Field of View | 8.8° | |||||
| Objective F# | 1.1 | |||||
| Objective Diameter | 50mm | |||||
| Eye Relief | 48mm | |||||
| Diopter Range | -4 – +4 | |||||
| Display Resolution | 1024×768 | |||||
| Recoil Rating | 1000 g/s² (300 Win./7mm Mag) | |||||
| Operating Temperature Range | -4°F~122°F | |||||
| Ingress Protection | IP67 | |||||
| Sensor Type | InfiRay MICRO II | |||||
| Sensor Pixel Size | 12μm | |||||
| Thermal Sensitivity | <50mk | |||||
| Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic | |||||
| Spectral Response | 8-12 Microns | |||||
| Sensor Frame Rate | 50hz | |||||
| Device Technology | Thermal Imaging | |||||
| Sensor Resolution | 640×512 | |||||
| Wifi | Yes | |||||
| Image Capture | Yes | |||||
| Mobile App | Yes | |||||
| Connector Type | USB-C | |||||
| Video Output | Analog RS-170/NTSC | |||||
| Connector Output | Power/Data | |||||
| Onboard Recording | Yes | |||||
| Warranty | 5 Years | |||||
| Power Source | 26650 Battery | |||||
| Color Palettes | White Hot, Black Hot, Red Hot, Color, Highlight | |||||
| Rangefinder | Internal LRF | |||||
| Picture-in-Picture | Yes | |||||
| User-Updatable Firmware | Yes | |||||
| Storage Capacity | 32GB | |||||
| Startup Time | Under 10 Seconds | |||||
| Run Time | 7 | |||||
| One-Shot Zero | Yes | |||||
| Stand-by Mode | Yes | |||||
| Reticle | 7 (2 Dynamic, 5 Static) | |||||
| External Power Source | USB-C | |||||
| Country of Manufacture | China | |||||
| Mounting Interface | Picatinny STD-1913 rail | |||||
| Length | 8.85 | |||||
| Width | 3.93 | |||||
| Height | 2.42 | |||||
| Weight | 25.71 | |||||
| Housing Material | Polymer | |||||
