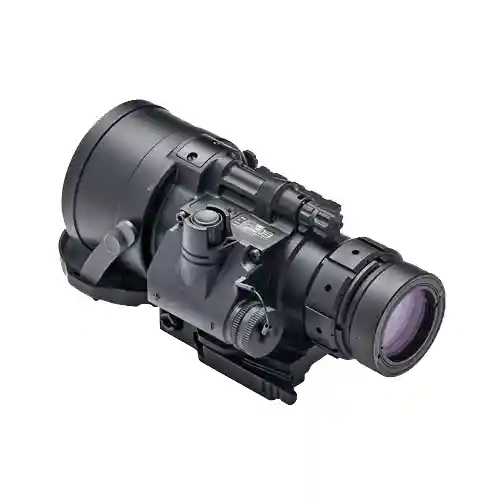

EOTech ClipNV Clip-On Night Vision Device
The EOTech ClipNV is a Clip on night vision device that was designed to be be used with low to medium power (1-12x) magnification day sights. This provides targeting at night while maintaining the day optic’s ballistic zero. It is a rifle mounted solution with unrivaled target detection and identification capability.
Simple ON/Off, Manual Gain Control and Focus knobs are ergonomically positioned on the device. It attaches quickly and simply to Picatinny (1913) rails in front of an existing day optic. Features an integral auxiliary Picatinny rail for installation of accessory equipment such as IR illuminators/designators.
EOTech ClipNV Features
Rugged, small, lightweight and MIL SPEC
Aircraft grade aluminum
Adds night vision capability to existing day optic
Optimized for use with 1-12X day optics
.50 caliber rated
Quick and easy mounting on 1913 rails, no zeroing required
Auto gated power supply provides automatic high light cut off system to help protect image intensifier tube and improved resolution in high light environments
Omni directional battery operation
Low battery indicator visible through day sight
Manual gain control
Specifications |
||||||
| L × W × H | 7.1″ × 3.5″ × 3.2″
(179.2 × 89.8 × 82.4mm) |
|||||
| Weight | 31.7 oz / 2.0 lbs (900g) including battery | |||||
| Power Source | 1 AA battery — Supports lithium, alkaline or rechargeable | |||||
| Battery Life | Lithium: >60 | |||||
| Field of View | 13.7o | |||||
| System Focus Distance | 10m to infinity | |||||
| Environmental | Complies with MIL-STD-810G | |||||
| Max. Allowable Zero Shift | < 1 MOA | |||||
| Image Intensification Tube | Gen III White Phosphor | |||||
| Figure of Merit (FOM) | 2376 minimum FOM | |||||
