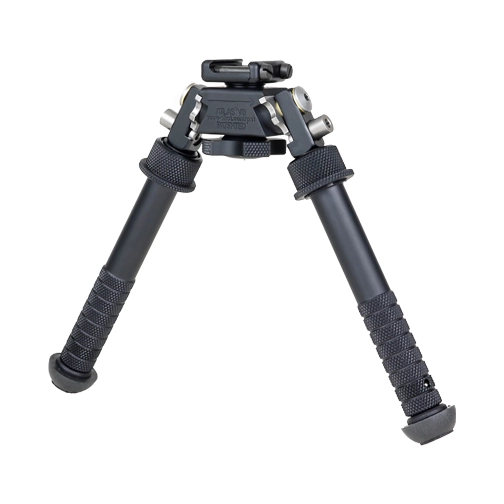

B&T Industries BT10 V8 Atlas Bipod
The B&T Industries BT10 V8 Atlas Bipod mounts directly to any 1913 style Picatinny rail via a low profile two screw clamp assembly.
It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only.
B&T Industries BT10 Features
UHMW components used for smooth tracking
Preload on Pan and Cant can be tightened by means of the knurled knob
Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
Standard soft, durable rubber feet that are suitable for many surfaces included
Optional 3” Leg Extensions to increase height
Optional interchangeable Ski Feet and Raider Cleat Feet easily swapped in the field with the press of a stainless steel plunger
Optional mounting systems available for Accuracy International and Sako rifles
Specifications |
||||||
| Height Range | 4.8 – 9.1″ (6.3” at 90°) | |||||
| Preloaded Pan | 30 degrees | |||||
| Preloaded Cant | 30 degrees | |||||
| Position Button | 0.36″ diameter | |||||
| 5 leg positions | 0, 45, 90, 135 & 180 degrees | |||||
| Weight | 11.0 ounces approx. | |||||
| Footprint | 8–11″ | |||||
