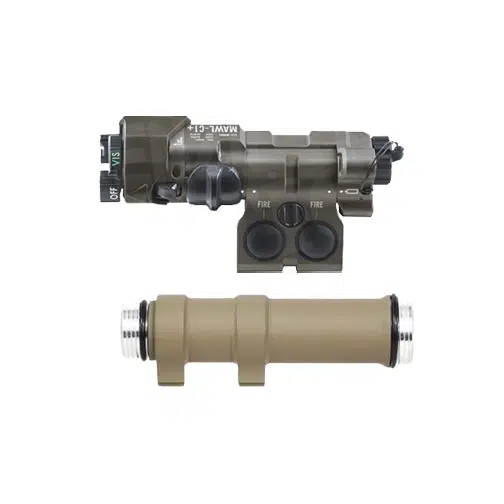

BE Meyers MAWL C1 Modular Advanced Weapon Laser – FDE & Arisaka 600 Series Light Body Bundle – FDE
BE Meyers MAWL C1 Modular Advanced Weapon Laser
The BE Meyers MAWL C1 is a Modular Advanced Weapon Laser. It is the world’s first commercially available NIR and visible green laser aiming device using Class 1+ technology. It retains all of the ergonomic, clarity, modularity, and interface enhancements of the BE Meyers MAWL-DA, and offers more infrared illumination output power than any FDA Class 3R or Class 1 laser on the commercial market.
The MAWL C1 features greater illumination range, an improved beam pattern and quality at all ranges compared to other commercially available laser devices. The Laser’s design simplifies complex multi position switches and consolidates these choices into the settings you need: short range, mid range, and long range, with the power and divergences appropriate for each. At only 0.37” above the rail, the buttons are lower than any other device, and fits perfectly with common weapon lights and micro BUIS. The BE Myers MAWL-C1 is completely ambidextrous: simply swap the end cap and head, and remount to use left handed.
Specifications |
||||||
| Laser Class | 3R | |||||
| Weight | 10.4 oz. w/ Battery | |||||
| Dimensions | 5.5″ L X 2.8″ W X 2″ H | |||||
| Wavelength | NIR, Visible Green | |||||
| Point Range | Varied | |||||
| Flood Range | Varied | |||||
| Max Output | Varied | |||||
| Power Source | One (1) 3V CR123A | |||||
| Housing | 6061-T6 Type II Anodized | |||||
| Azimuth and Elevation | 0.3 MRAD / 1.03 MOA Per Click | |||||
Arisaka 600 Series Light Body
The Arisaka 600 Series Light Body is a streamlined replacement body for Surefire M600 Scout Light. The 600 Series Light Body is manufactured without the mounting interface for the stock Picatinny clamp. This greatly increases the clearance for front sights when used in combination with the Arisaka Inline Scout Mount on handguards with 45 degree mounting surfaces adjacent to the top Picatinny rail.
The 600 Series Light Body is compatible with Scout Light M600 series tailcaps and heads like the KM2C, KE2A and KX2C. IR heads are fully supported. It will also fit in any aftermarket Scout mount, as it retains the mounting holes and square lug interface on the underside of the light body.
It is also possible to build a complete light from scratch by sourcing additional components. A variety of tailcaps and aftermarket light heads are available from online retailers. Our favorite light head to pair with the 600 Series Light Body is the Malkoff E2ST, which is compact and made in the USA.
The 600 Series Light Body is NOT compatible with the Surefire M600DF head or 18650 cells. 16650 cells are compatible.
The light body is CNC machined from 6061-T6 aluminum and MIL-A-8625 Type III hard coat anodized. Threads and interior of light bodies are treated with a MIL-DTL-5541 Type II Class 3 chemical conversion coating (chem film) for maximum conductivity and protection against oxidation. High quality Buna-N O-rings are included. Product does not include light head, tail cap or mounting screws. Made in the USA.
