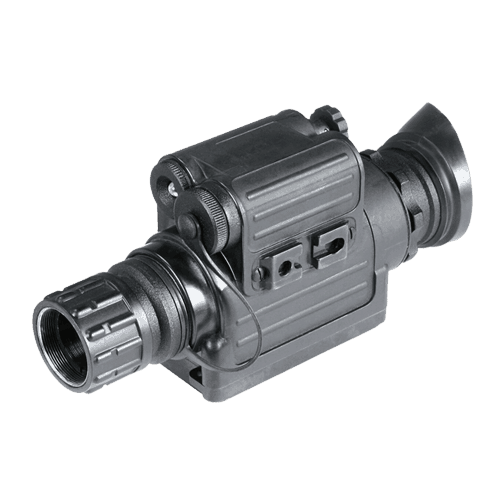

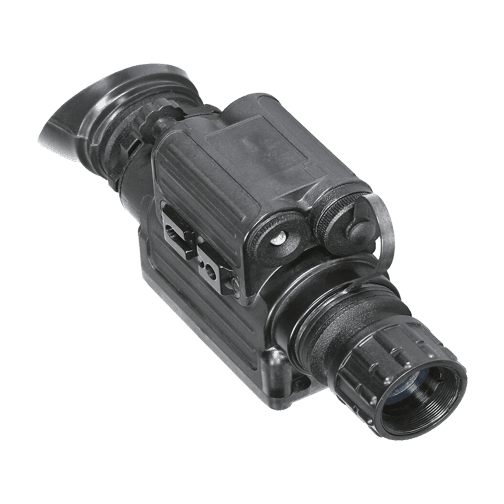

The Armasight Spark-G Night Vision goggle systems built around CORE (Ceramic Optical Ruggedized Engine) image intensifier tubes. First of all, unlike Gen 1 Image Intensifier Tubes (IIT), which are fragile because they are made from glass. The CORE IIT’s are made just like Gen 2 and Gen 3 by fusing metal alloys with ceramic compounds. Additionally, the CORE technology is based on durable elements and allows tight component stacking. Lastly, resulting in image tubes that are exceptionally shockproof and vibration- resistant.
As a result, robust packaging protects easy-to-break protrusions common in Gen 1 tubes and allows for a streamlined design that is lighter, more compact, and more reliable than average night vision devices. Also, the CORE platform offers ‘best in class’ resolution with 60-70 lp/mm and an increased photocathode sensitivity level of upwards of 400 µA/lm. Resulting in, a high image quality even in difficult ambient light conditions, rivaling high-end Gen 2 image tubes. Overall, the Armasight Spark-G is a rugged and lightweight night vision monocular.
Specifications |
|
| Auto Power Off |
No |
| Dimensions (L x W x H) |
181× 49 × 82 mm (7.1 × 1.9 × 3.2 in) |
| Focus Range |
0.25 m to Infinity |
| Product Weight |
0.37 kg (0.8 lbs) |
| Warranty | 2 Years |
| Lens System |
F/1.7; 35 mm |
| Magnification | 1x standard (3x, 5x optional) |
| Eye Relief |
20mm |
| IIT Generation |
CORE |
| Operating Temperature |
-40°C to +50°C (-40°F to +122°F) |
| Storage Temperature |
-50°C to +70°C (-58°F to +158°F) |
| Diopter Adjustment |
±5 diopter |
| Field of View |
35° |
| Resolution | 60-70lp/mm |
| Automatic Brightness Control |
No |
| Bright Light Cut Off |
No |
| Exit Pupil Diameter |
8mm |
| Infrared Illuminator |
Yes |
| IR Indicator |
Yes (Led) |
| Manual Gain Control |
No |
| Battery life |
Up to 40 hours |
| Power Supply |
CR123 Lithium 3V (1) |
