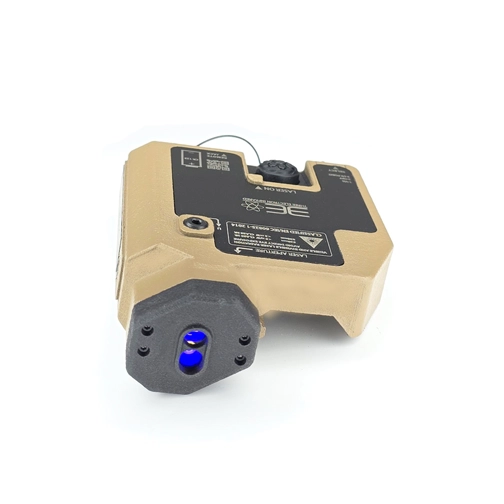

Arisaka 3EIR Designate IR Laser
The Arisaka 3EIR Designate IR Laser is a dual laser aiming device packaged in an extremely durable and low profile synthetic nylon housing. The green visible and infrared aiming lasers are co-aligned, making for quick and easy zeroing. Operation is straightforward, with only a single mode knob, fire button, and crane compatible remote switch port.
Specifications |
||||||
| Modes | Visible aiming laser
Infrared aiming laser |
|||||
| Visible Laser | 520nm Green | |||||
| Output Power | > 5.0 nW Class 3R | |||||
| Beam Divergence | .5 mrad | |||||
| Wavelength | 520 nm | |||||
| Range | > 50 m Daylight | |||||
| IR Laser | 830nm Infrared | |||||
| Output Power | > 2.5 mW Class 3R | |||||
| Beam Divergence | .5 mrad | |||||
| Range | > 1000 m | |||||
| Dimensions | 3.8” x 2.8” x 1.1” (0.6” above rail) | |||||
| Weight (including CR123A) | 5.8 oz, 6.3 oz with CR123 | |||||
| Power | 1x CR123A provides > 6 hours run time | |||||
| Environmental Rating | IP68 | |||||
| Warranty | 2 years | |||||
| Housing | 3D printed synthetic nylon with Cerakote finish and embedded steel insert for clamping screw | |||||
| Clamp | 7075 series aluminum | |||||
