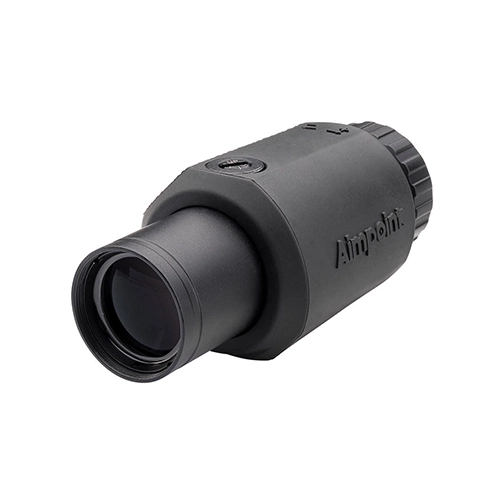

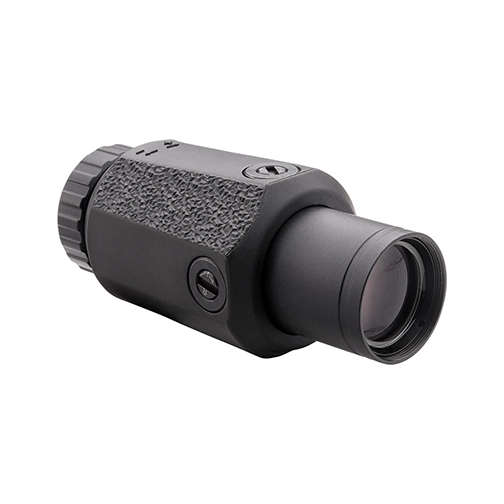

Aimpoint 3X-P Magnifier – No Mount
The Aimpoint 3X-P Magnifier is a professional grade premium military standard approved optic, designed to increase capabilities for observation or target acquisition at longer distances. Featuring a variable dioptric setting (-2 to +2), allowing the magnifier to be adjusted to the individual user’s eye. Whether it is parked with a red dot sight by Aimpoint or used as a handheld monocular, the 3X-P provides a crisp sight picture with a generous field of view. 3X-P is submersible to 25 m (80 feet), and gives the professional end user enhanced capabilities for long range aiming or observation with a crisp sight picture.
Aimpoint 3X-P Magnifier Features
3X optical magnification
Can also be used as a handheld 3X monocular
No re-zeroing needed when shifting between non-magnified and magnified aiming – utilizes the red dot in Aimpoint sights as the aiming reticle
Field of view (FOV): 7°
Eye relief: 56 mm (2.2 in)
Legendary Aimpoint ruggedness – Professional Grade
Submersible to 82 feet (25 meters) Temperature span -50.8°F to +159.8°F
Weight 7.2 oz / 203 g (magnifier only)
Specifications |
||||||
| Optical Magnification | 3x | |||||
| NVD Compatible | Yes | |||||
| Eye Relief | 56mm (2.2 in) | |||||
| Exit Pupil | 6.5mm (0.25 in) | |||||
| Dioptric Adjustment | +/- 2.0D | |||||
| Field of View (FOV) | 7.3° | |||||
| Size Lx W x H (magnifier only) | 103 x 46 x 46mm (4.1 x 1.8 x 1.8 in) | |||||
| Weight (magnifier only) | 203 grams (7.16 oz) | |||||
| Housing Color | Matte grey to black | |||||
| Housing Surface Finish | Protective rubber cover | |||||
| Housing Material | Aluminum | |||||
| Material Mounts & Spacers | Aluminum | |||||
| Submersible | 25 m (82 ft) | |||||
| Temperature Range Operation | -46°C to 71°C (-50.8°F to 159.8°F) | |||||
| Temperature Shock | Operable after a temperature shock between -25°C to 40°C (-13°F to 104°F) | |||||
| Humidity | Operable during and after humidity. Limits: RH: 95%, Temp: 20°C to 50°C (68°F to 122°F), cyclic | |||||
| Tube Diameter | 30mm (1.2 in) | |||||
| Shock | Withstands shock. Limits X-axis: 500 g. 0.7 – 1.1 ms (3 shocks), Y-axis: 40g +4g, 11 +1 ms (2 shocks) in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. | |||||
| Vibration | Withstands Vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction. | |||||
