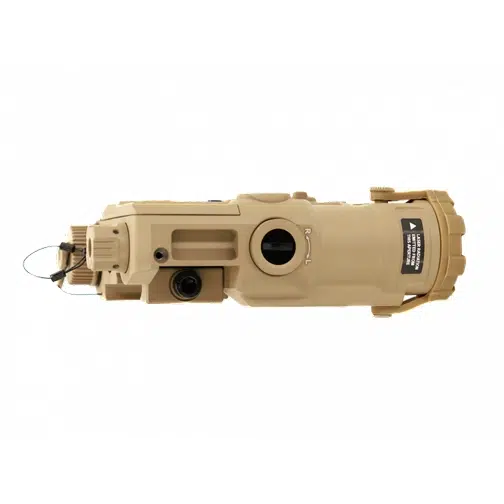

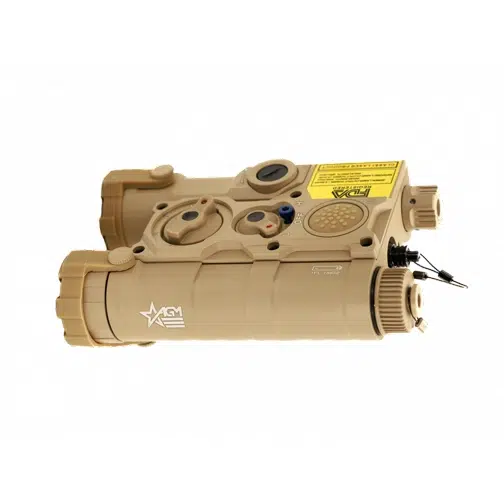

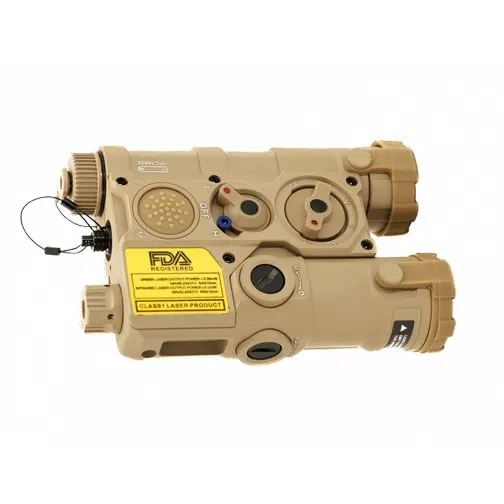

AGM WLAD-1T Weapon Laser Aiming Device – Tan
The AGM WLAD-1T Weapon Laser Aiming Device is a CLASS 1 laser consisting of a green visible aiming laser, a near-infrared (near-IR) aiming laser, IR illuminator and 300 lm LED illuminator. The function of the WLAD is to provide an operator with highly collimated aiming lasers for precision aiming and targeting visible in low light conditions and in conjunction with night vision devices for night time applications. The focusable near-IR Illuminator floods the area of interest with near-infrared light only visible when used with night vision devices.
AGM WLAD-1T Features
Rapid active target acquisition
True night vision compatible mode
Six function modes
User selectable constant wave or pulsed modes of flashlight
300 Lumen LED flashlight
Tactical remote switch
Co-boresighted aiming lasers
Mounting: Weaver or Rail Picatinny Type MIL-STF-1913
Low base design
IPX8 waterproof
2-Year Warranty
Included in the Box
Aiming/Illumination Module
Remote Switch
Operation Manual
Soft Carrying Case
Clean Brush
Clean Cloth
Specifications |
||||||
| Divergence | IR LASER – 0.5+0.3 mrad, GREEN LASER – 0.5+0.3 mrad, IR ILLUMINATOR – 1-100 mrad | |||||
| Class | IR LASER, GREEN LASER, IR ILLUMINATOR – Class 1 | |||||
| Output Power | IR LASER – <0.2 mW, GREEN LASER – <1 mW, IR ILLUMINATOR – <1mW | |||||
| Operating Distance | IR LASER – > 400 m, GREEN LASER – > 25 m (in direct sunlight), IR ILLUMINATOR – > 100 m | |||||
| Wavelength | IR LASER – 830±15 nm, GREEN LASER – 520±10 nm, IR ILLUMINATOR – 830±15 nm | |||||
| Weight | 298 g
( 10.5 oz) |
|||||
| Dimensions | 113 × 77 × 42 mm
(4.3 × 3.0 × 1.5 in) |
|||||
| Color (housing) | Tan
(WLAD-1T) |
|||||
| Battery Type | One 18650 Li-Ion rechargeable battery (3.7V) | |||||
| Protection Level | IP68 | |||||
| Shockproof | 1,200 G | |||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
