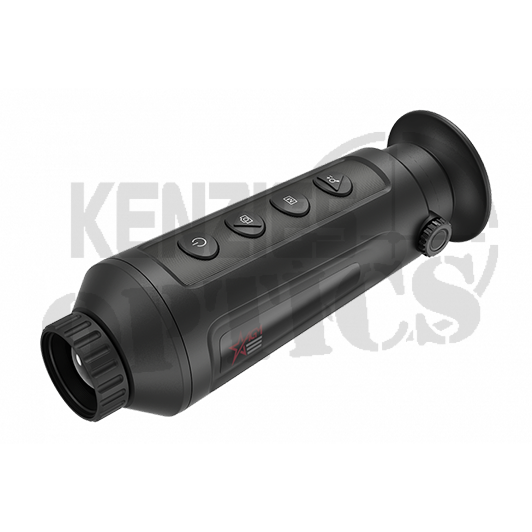

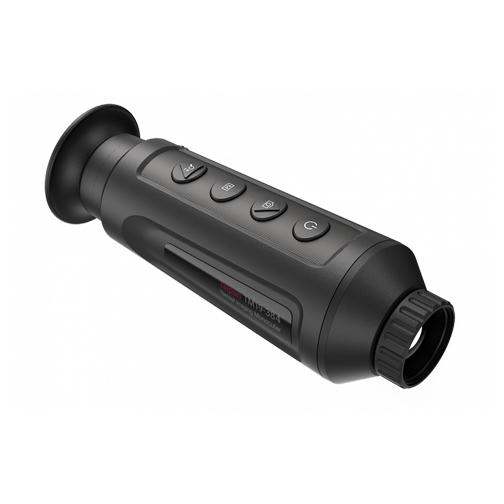

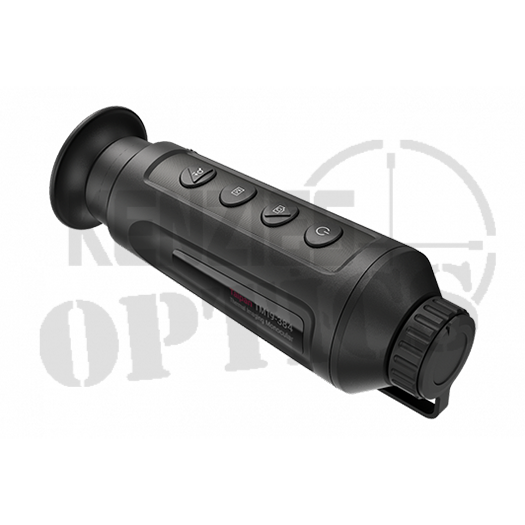

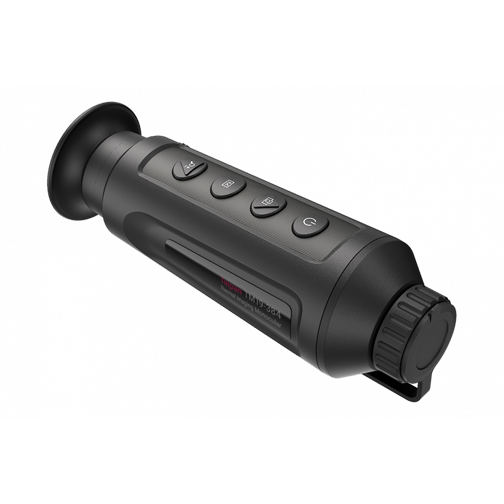

AGM Taipan TM19 Thermal Imaging Monocular
The AGM Taipan TM19 will give you a clear view even in total darkness. The handheld is equipped with a 384 x 288 infrared detector and a 1280 x 960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurements, WiFi hotspot, and more. The high sensitivity built in thermal detector provides you with clear views even in complete darkness. It runs on a built in rechargeable Lithium battery which will run continuously for more than 7.5 hours when the WiFi hotspot is turned off. The monocular was designed for patrolling, law enforcement, search and rescue, hiking and hunting. The Taipan is backed by AGM’s Limited 3 Year Warranty.
AGM Taipan TM19 Thermal Monocular Features
384 × 288 resolution, 12 μm, high sensitivity detector
Adaptive AGC, DDE, 3D DNR
1280 × 960 resolution 0.4 inch LCOS display
Built in rechargeable Lithium battery
More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
WiFi hotspot
Type C interface
Limited 3 year warranty
Specifications |
||||||
| Detector Type | Vanadium Oxide Uncooled Focal Plane Arrays | |||||
| Resolution | 384 x 288 | |||||
| Pixel Interval | 12 μm | |||||
| Refresh Rate | 50 Hz | |||||
| Response Waveband | 8μm to 14μm | |||||
| NETD | Less than 35 mk (@25°C), F#=1.0 | |||||
| Detection Range | 897 m | |||||
| Lens (Focal Length) | 19 mm | |||||
| Aperture | F1.0 | |||||
| Field of View | 13.8° × 10.4°
(H × V) |
|||||
| Magnification | 1.9x | |||||
| Digital Zoom | 2x
4x 8x |
|||||
| Monitor | 1280 x 960, 0.4 inch, LCOS | |||||
| FFC (Flat Field Correction) | Auto
Manual External Correction |
|||||
| Palettes | Black Hot
White Hot Red Hot Fusion |
|||||
| Highest Temperature Spot Tracking | Yes | |||||
| WiFi Hotspot | Yes | |||||
| Standby Mode | Yes | |||||
| Storage | Built in Memory Module
(8GB) |
|||||
| Record Video | On board video recording | |||||
| Capture Snapshot | Yes | |||||
| CVBS Output | Yes
(via USB) |
|||||
| Multi Language Menu | Yes | |||||
| Battery Type | Built in rechargeable Lithium Battery | |||||
| Battery Operating Time | More than 7.5 hours continuous running
(with WiFi hotspot function off) |
|||||
| Battery Capacity Display | Yes | |||||
| Power | 5 VDC/2 A, 1.5 W | |||||
| Interface | USB Type C | |||||
| Working Temperature | -20°C to 55°C
(-4°F to 131°F) |
|||||
| Protection Level | IP67 | |||||
| Drop Test Height | 1.5 m
(4.9 ft) |
|||||
| Dimensions | 171 × 61 × 57 mm
(6.73 × 2.4 × 2.2 in) |
|||||
| Weight | 310 g
(0.68 lb) |
|||||
