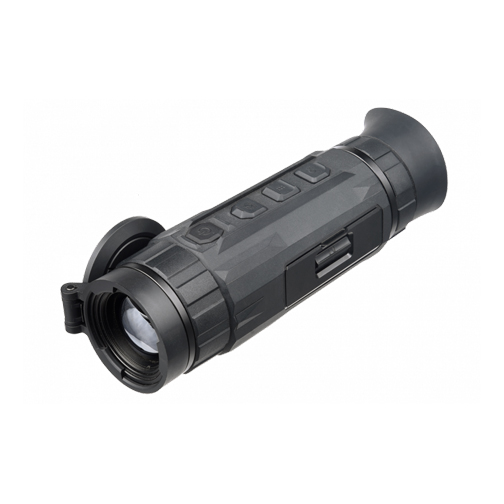

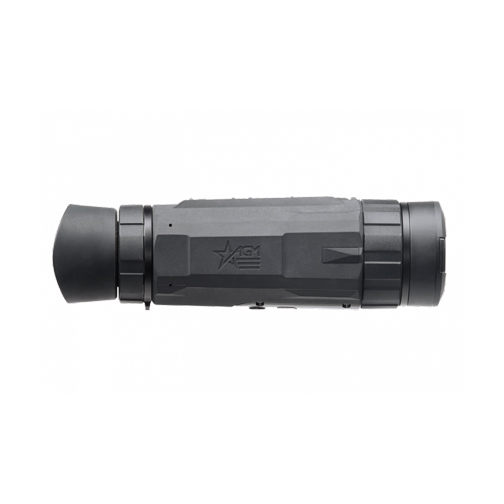

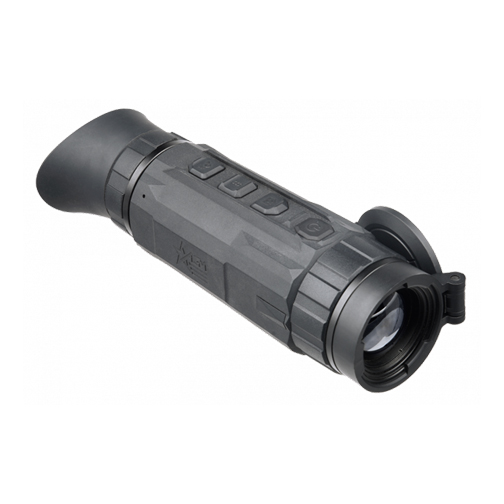

AGM Sidewinder TM35 384 Thermal Monocular
The AGM Sidewinder TM35 384 was designed to be a premium handheld observational thermal monocular. It comes equipped with a 384×288, 12µm infrared detector and a 1024×768 OLED display, for improved color rendering. The thermal sensor also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family.
Other improvements over the Taipan monoculars include a more robust body/housing and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions. The Sidewinders built in 64GB memory also sits at the top of its class on the market, with advanced software supporting both video recording and image capturing. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search and rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications.
AGM Sidewinder TM35 384 Features
12μm, 384×288 resolution detector
Highest thermal sensitivity (NETD <20mK)
Advanced image processing (Digital Detail Enhancement, digital Noise Reduction and NLM algorithm)
50 Hz image frame rate
1024×768 resolution OLED display
Built-in memory supports video/audio recording and snapshot capturing
64 GB memory module
Wi-Fi hotspot
1×, 2×, 4× and 8× digital zoom
Replaceable and rechargeable Li-Ion battery
Up to 7 hours continuous running
External power supply capability
Waterproof
5-Year warranty
Included in the Box
Battery Charger
USB Cable
Power Adapter (US and EU plugs included)
18650 Rechargeable Battery
Lens Cloth
Wrist Strap
Carrying Case
User Manual
Protective Bag
Specifications |
||||||
Palettes | Black Hot, White Hot, Red Hot, Fusion | |||||
Dimensions | 188x58x65mm (7.4×2.3×2.6in) | |||||
Interface | USB Type-C | |||||
Pixel Interval | 12μm | |||||
Detector Type | Vanadium Oxide Uncooled Focal Plane Array | |||||
Response Waveband | 8μm to 14μm | |||||
FFC (Flat Field Correction) | Auto, Manual, External Correction | |||||
Highest Temperature Spot Tracking | Yes | |||||
Standby Mode | Yes | |||||
Refresh Rate | 50Hz | |||||
Detection Range (6’ object) | 1800m | |||||
Optical Magnification | 3x – 24x | |||||
Lens (Focal Length) | 35mm | |||||
Power | 5 VDC/2 A, 1.75 W | |||||
Field of View (HxX) | 7.5° × 5.6° | |||||
Digital Zoom | 1x, 2x, 4x, 8x | |||||
Diopter Adjustment Range | -5 to +3 dpt | |||||
Monitor | 1024×768, OLED | |||||
Storage | Built in memory (64GB) | |||||
Record Video | Yes (on-board) | |||||
Capture Snapshot | Yes | |||||
Battery Type | One 18650 Replaceable rechargeable Lithium battery | |||||
WiFi | Yes | |||||
Battery Operating Time | Up to 7 hours | |||||
Weight | 505 g (1.11lbs) |
