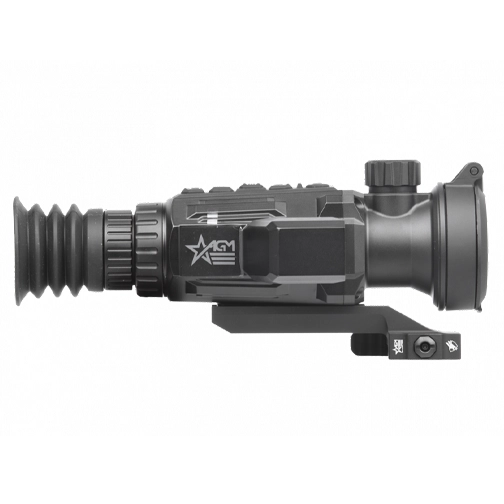

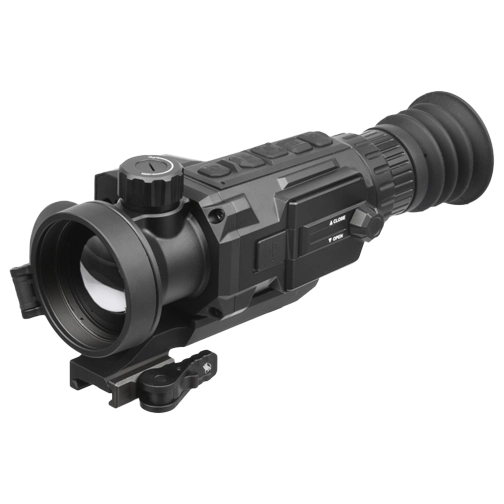

AGM Secutor LRF 50-640 Thermal Imaging Scope
The AGM Secutor LRF 50-640 was built to expand and diversify the line of rangefinder equipped thermal riflescopes in the AGM assortment. Though the Secutor LRF series will utilize the same upgraded thermal sensors that can be found across the majority of AGM’s new products, the three primary differences include an upgraded 1000m laser rangefinder, a digital compass and utilization of a CR123A base power system. These differences, while primarily aimed at more noncommercial tactical applications, still offer both extended ranging and battery familiarity to commercial predator hunters as well. The extended range of the LRF, when paired with the non-proprietary CR123A power system, helps make the Secutor LRF’s a great option for different law enforcement and defense applications. Meanwhile, the integrated compass gives shooters an added layer of situational and positional awareness. The sub-20 milikelvin thermal sensors will aid users in these tactical scenarios by increasing their ranging capabilities, as well as increase their ability to both detect and identify targets at longer distances.
AGM Secutor LRF Features
12μm thermal detector
High thermal sensitivity, NETD < 20mK
Fast 50Hz imaging
Built-in laser rangefinder
Adjustable color palettes
High resolution OLED display
Various reticle types and colors
1x, 2x, 4x, 8x digital zoom
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Wi-Fi data transmission
Standby mode
More than 6 hours battery life
External power supply compatibility
Waterproof & shockproof
5-year warranty
Specifications |
||||||
Dimensions | 227 × 104 × 74 mm (8.9 × 4.1 × 2.9 in) (w/o mount) | |||||
Palettes | Black Hot, White Hot, Red Hot, Fusion | |||||
Exit Pupil Diameter | 6 mm | |||||
Reticle | 10 types, 4 colors, on/off | |||||
Boresight Adjustment | Digital Controlled | |||||
Picture In Picture Mode (PIP) | Yes | |||||
Video Recording | Yes | |||||
Audio Recording | Yes | |||||
Magnification | 2.5× – 20× | |||||
Detector type | 12μm VOx Uncooled Focal Plane Array | |||||
Response Waveband | 8 μm to 14 μm | |||||
FFC (Flat Field Correction) | Auto, Manual, External Correction | |||||
Highest Temperature Spot Tracking | Yes | |||||
Standby Mode | Yes | |||||
Refresh rate | 50 Hz | |||||
Resolution | 640 × 512 | |||||
Laser Rangefinder | Up to 1000 m, ±4 m accuracy | |||||
Laser Wavelength | 905 nm | |||||
Detection Range (6′ object) | 2,600 m/yd | |||||
Lens system | 50 mm; F1.0 | |||||
NETD | Less than 20 mK (@25°C), F#=1.0 | |||||
Field of view (H × X) | 8.8° × 7.0° | |||||
Digital zoom | 1×, 2×, 4×, 8× | |||||
Diopter adjustment range | -5 to +3 dpt | |||||
Monitor | 1024×768, 0.39 inch, OLED | |||||
Eye relief | 45 mm | |||||
Storage | 16 GB EMMC | |||||
Capture Snapshot | Yes | |||||
Battery Type | Four CR123A Lithium batteries | |||||
Wi-Fi | Yes | |||||
Battery Operating Time | Мore than 6 hours | |||||
External power supply | 5 VDC/2 A, USB Type-C | |||||
Weight | 0.61 kg (1.33 lb) | |||||
Protection Level | IP67 | |||||
Operating Temperature Range | -30°C to 55°C (-22°F to 131°F) |
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
