AGM Reach IR 35-640 Thermal Imaging Monocular

$2,695.00

Backorder this item now

Want to be notified when this product is back in stock?

SKU: REAC35-640-LRF Categories: , , Tags: , , , ,

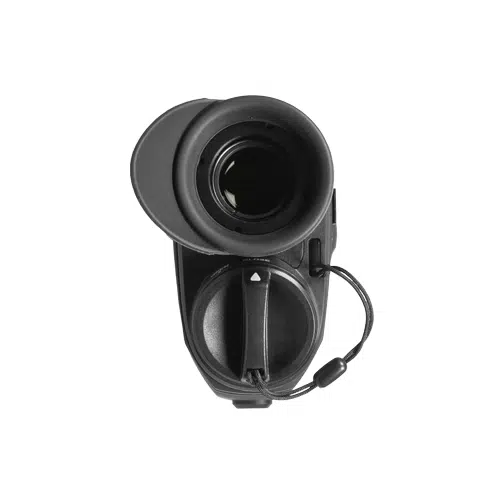

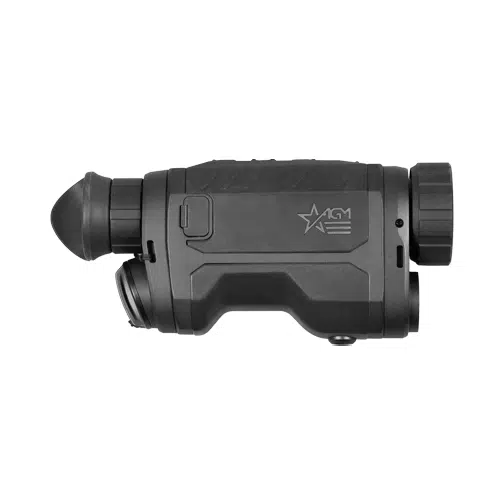

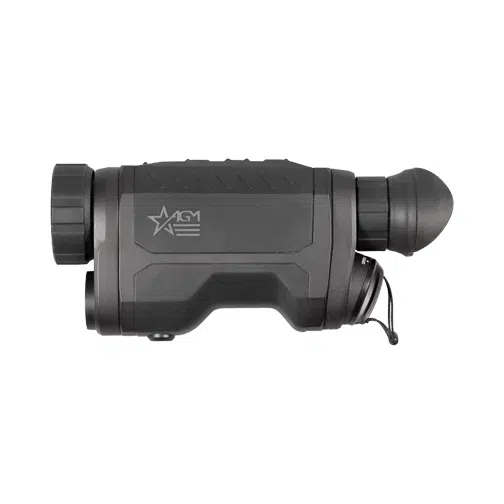

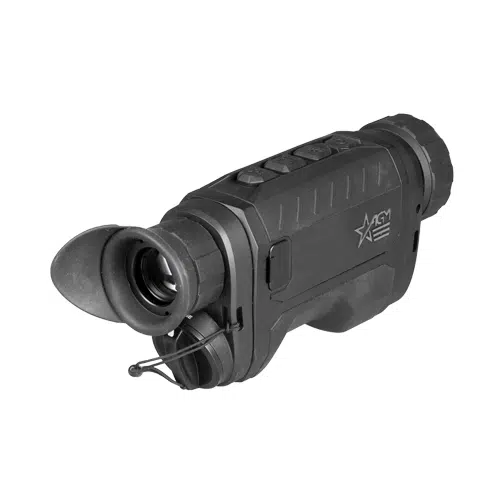

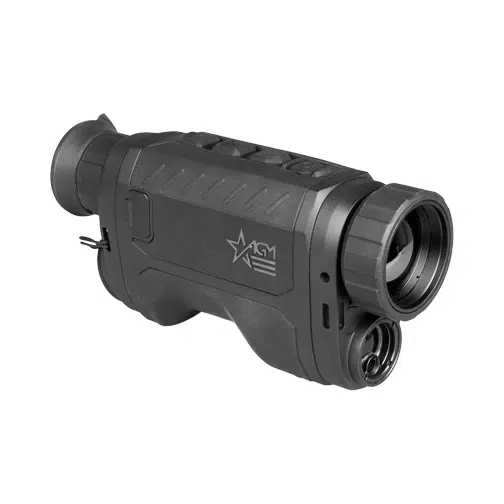

AGM Reach IR 35-640 Thermal Imaging Monocular

The AGM Reach IR 35-640 was designed to be a premium thermal imaging monocular. It is equipped with a 12 micron infrared detector and a 1024×768 OLED display, for improved color rendering. The Reach IR thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other important features include a 1,000 meter integrated laser rangefinder (LRF), robust body and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.

New optimized image processing algorithms give thermal monocular highly optimized images and remarkable details. The Reach IR has a built in 64 GB memory that sits at the top of its class on the market, with advanced software supporting both video/audio recording and image capture. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search and rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications.

AGM Reach IR Features

12μm, high-sensitivity thermal detector (NETD < 20mK)

640×512  resolution

Fast 50 Hz imaging

Built-in 1,000-meter laser rangefinder

New optimized image processing algorithms

1x, 2x, 4x, 8x digital zoom

1024×768 resolution, 0.39-inch OLED display

Video/audio recording and image capture

64 GB built-in memory

Wi-Fi hotspot

Standby mode

Replaceable and rechargeable 18650 Lithium battery

Up to 4 hours continuous running

Auto screen-off function

Robust magnesium alloy housing

Waterproof

5-Year Warranty

Specifications

Detector Type 12μm VOx Uncooled Focal Plane Array
Resolution 640×512
Refresh Rate 50 Hz
NETD Less than 20 mK (25°C, F#=1.0)
Response Waveband 8 μm to 14 μm
Lens System 35mm; F1.0
Field of View (HxV) 12.5° x 10.0°
Magnification 2.0x – 16x
Digital Zoom 1x, 2x, 4x, 8x
Diopter Adjustment -5 to +3
Detection Range (6’ Object) 1,800 m
Monitor 1024×768, 0.39 inch, OLED, 50 FPS
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking Yes
Scene Mode Jungle, Recognition
Distance Measurement Laser Rangefinder: up to 1,000 m, +/- 1m Accuracy
Laser Wavelength 905nm
Laser Safety Class Class 1
Hotspot Yes
Sleep Mode Yes
Built-in Storage 64GB EMMC
Video/Audio Recording Yes/Yes
Image Capture Yes
PIP Yes
Battery Type One 18650 rechargeable battery (removable)
Battery Life 4.0 hours continuous running (@ 25°C, WiFi and LRF off)
Battery Capacity Display Yes
External Power 5 VDC / 2 A, USB Type-C interface supports external power supply
Working Temperature -30°C to 55°C (-22°F to 131°F)
Protection Level IP67 (Waterproof)
Dimensions 190x52x86mm (7.5×2.0x3.4 in)
Weight (w/o batteries) 442g (0.97 lb)
