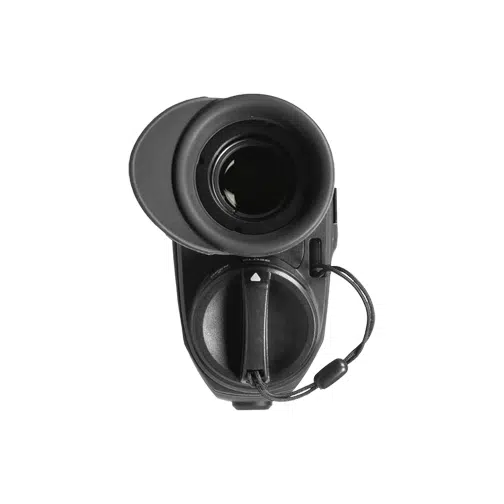

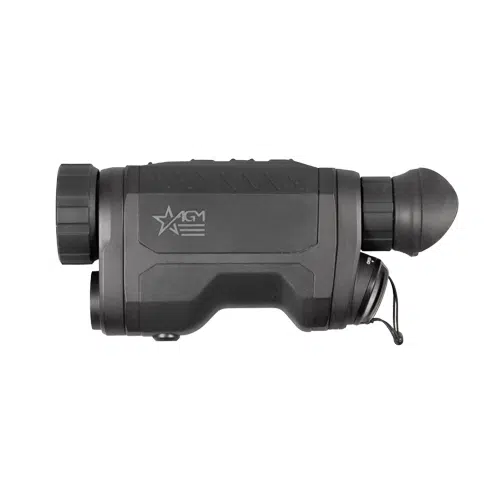

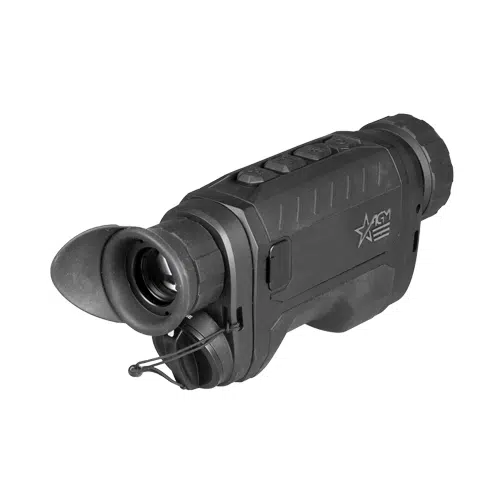

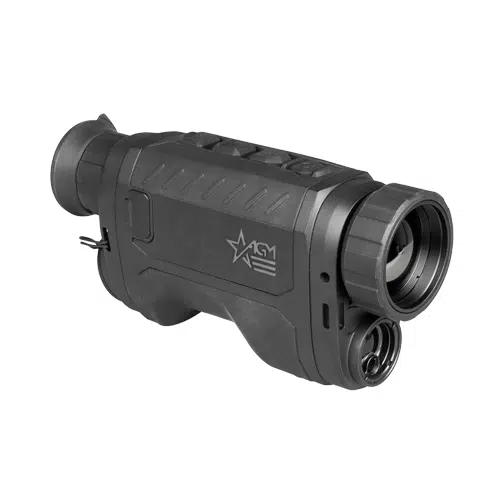

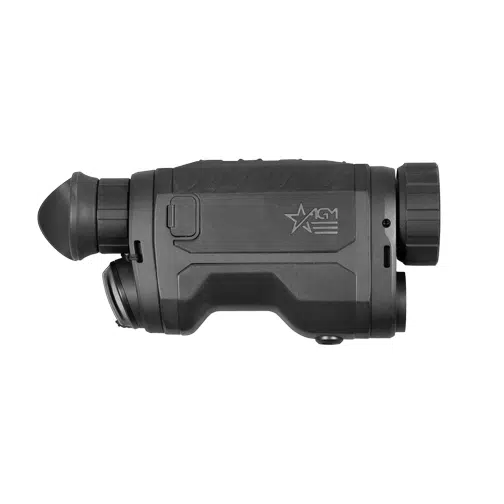

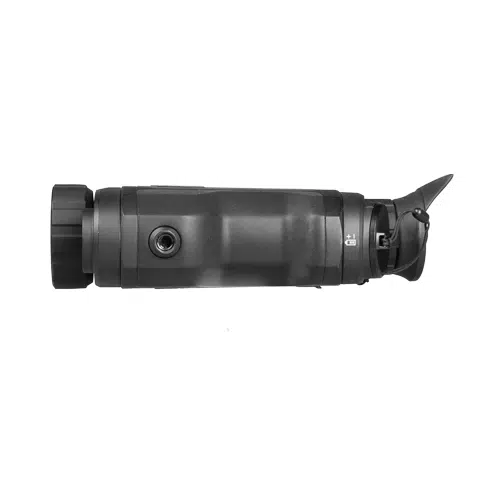

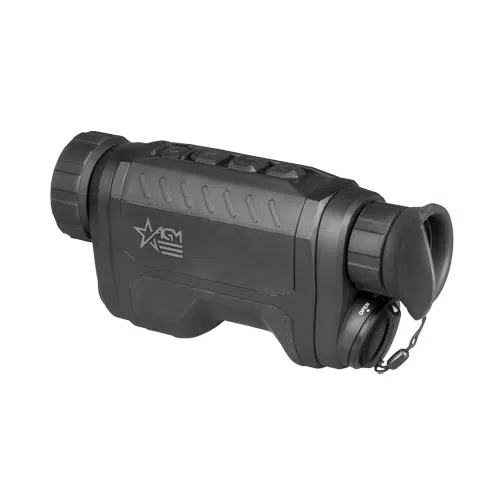

AGM Reach IR 25-384 Thermal Imaging Monocular
The AGM Reach IR 25-384 was designed to be a premium thermal imaging monocular. It is equipped with a 12 micron infrared detector and a 1024×768 OLED display, for improved color rendering. The Reach IR thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other important features include a 1,000 meter integrated laser rangefinder (LRF), robust body and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.
New optimized image processing algorithms give thermal monocular highly optimized images and remarkable details. The Reach IR has a built in 64 GB memory that sits at the top of its class on the market, with advanced software supporting both video/audio recording and image capture. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search and rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications.
AGM Reach IR Features
12μm, high-sensitivity thermal detector (NETD < 20mK)
384×288 resolution
Fast 50 Hz imaging
Built-in 1,000-meter laser rangefinder
New optimized image processing algorithms
1x, 2x, 4x, 8x digital zoom
1024×768 resolution, 0.39-inch OLED display
Video/audio recording and image capture
64 GB built-in memory
Wi-Fi hotspot
Standby mode
Replaceable and rechargeable 18650 Lithium battery
Up to 4 hours continuous running
Auto screen-off function
Robust magnesium alloy housing
Waterproof
5-Year Warranty
Specifications |
||||||
Detector Type | 12μm VOx Uncooled Focal Plane Array | |||||
Resolution | 384×288 | |||||
Refresh Rate | 50 Hz | |||||
NETD | Less than 20 mK (25°C, F#=1.0) | |||||
Response Waveband | 8 μm to 14 μm | |||||
Lens System | 25mm; F1.0 | |||||
Field of View (HxV) | 10.5° x 7.9° | |||||
Magnification | 2.5x – 20x | |||||
Digital Zoom | 1x, 2x, 4x, 8x | |||||
Diopter Adjustment | -5 to +3 | |||||
Detection Range (6’ Object) | 1,200 m | |||||
Monitor | 1024×768, 0.39 inch, OLED, 50 FPS | |||||
FFC (Flat Field Correction) | Auto, Manual, External Correction | |||||
Palettes | Black Hot, White Hot, Red Hot, Fusion | |||||
Highest Temperature Spot Tracking | Yes | |||||
Scene Mode | Jungle, Recognition | |||||
Distance Measurement | Laser Rangefinder: up to 1,000 m, +/- 1m Accuracy | |||||
Laser Wavelength | 905nm | |||||
Laser Safety Class | Class 1 | |||||
Hotspot | Yes | |||||
Sleep Mode | Yes | |||||
Built-in Storage | 64GB EMMC | |||||
Video/Audio Recording | Yes/Yes | |||||
Image Capture | Yes | |||||
PIP | Yes | |||||
Battery Type | One 18650 rechargeable battery (removable) | |||||
Battery Life | 4.5 hours continuous running (@ 25°C, WiFi and LRF off) | |||||
Battery Capacity Display | Yes | |||||
External Power | 5 VDC / 2 A, USB Type-C interface supports external power supply | |||||
Working Temperature | -30°C to 55°C (-22°F to 131°F) | |||||
Protection Level | IP67 (Waterproof) | |||||
Dimensions | 185x52x86mm (7.2×2.0x3.4 in) | |||||
Weight (w/o batteries) | 424g (0.93 lb) |
