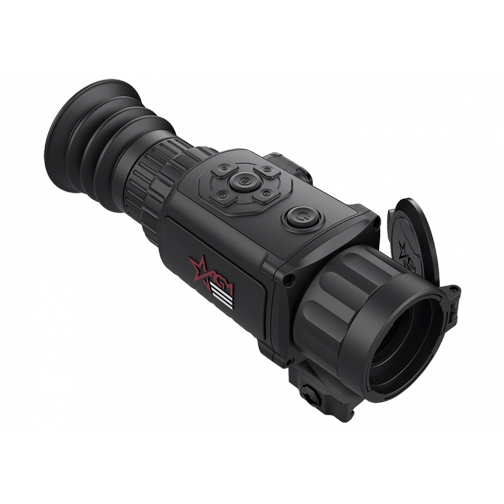

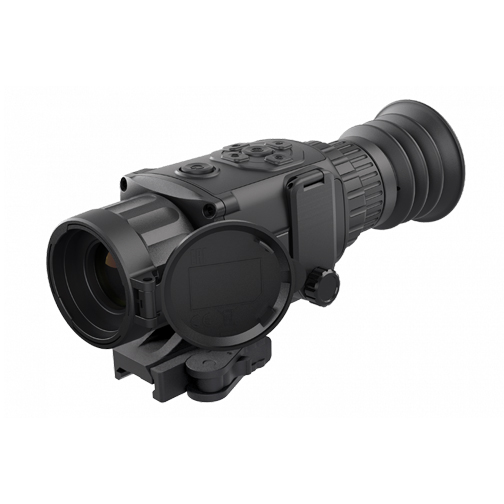

AGM Rattler TS35 640 Thermal Imaging Scope
The AGM Rattler TS35 640 is a thermal imaging scope that was designed to be compact, rugged, a developed for 24 hour operation under any weather and environmental conditions. It features a 35mm Germanium lens that is the perfect unit for medium range use. The scope has 640×512, 12μm thermal detector with 50 Hz refresh rate and 1024×768 OLED monitor, which provides clear image under harsh environment conditions.
The Rattler TS35 640 can be used as a thermal scope or handheld monocular, but is mainly applied to scenarios such as patrolling and hunting. Powered with two CR123 batteries the AGM Rattler gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can easily connect via a USB connector for a significant increase of operating time. Onboard WiFi module for live video/image recording via application are also available.
AGM Rattler TS35 640 Features
640×512 thermal resolution
12 μm, 35 mK NETD high sensitivity detector
Fast 50Hz imaging
1024×768 resolution, 0.39 inch OLED display
2x optical magnification
1x, 2x, 4x, 8x digital zoom
Digital image processing technology
Video recording and snapshot, built in EMMC (16 GB)
Various reticle types and colors
Stadiametric rangefinder
Adjustable color palettes
WiFi data transmission
Standby mode
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
Limited 3 year warranty
Package Includes
Lens Tissue
Operators Manual
Packing Box
USB Cable
Soft Carrying Case
Specifications |
||||||
| Palettes | Black Hot
White Hot Red Hot Fusion |
|||||
| Reticle | 5 types, 4 colors, on/off | |||||
| Drop Test Height | 1.5m
(4.9 feet) |
|||||
| Boresight Adjustment | Digital Controlled | |||||
| Distance Measurement | Yes (Stadiametric Rangefinder) | |||||
| Scene Mode | Jungle, Recognition | |||||
| Picture In Picture Mode (PIP) | Yes (2× Zoom) | |||||
| Video Recording | Yes | |||||
| Defective Pixels Correction (DPC) | Yes | |||||
| Uniformity Correction | Auto, Manual, External Correction | |||||
| Observation Distance | 1,750 m | |||||
| Detector Type | 12μm, Uncooled, 50 Hz | |||||
| Standby Mode | Yes | |||||
| Resolution | 640 × 512 | |||||
| Lens System | 35 mm; F/1.0 | |||||
| Optical Magnification | 2x | |||||
| Field of View (H × X) | 12.5° × 10.0° | |||||
| Digital Zoom | 1×, 2×, 4×, 8× | |||||
| Eye Relief | 45 mm | |||||
| Display | 0.39-inch, OLED, 1024×768, 50 Hz | |||||
| Storage | Built in EMMC (16 GB) | |||||
| Battery Type | Two CR123 (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries | |||||
| CVBS Output | Yes (via USB) | |||||
| Battery Life (Operating) | Up to 4.5 hr | |||||
| External Power Supply | 5 VDC/2 A, USB Type-C interface | |||||
| Operating Temperature Range | -20°C to +55°C
(-4°F to +131°F) |
|||||
| Degree of Protection | IP67 | |||||
| Weight | 480 g
( 1.06 lb) |
|||||
| Overall Dimensions | 187 × 62 × 59 mm
(7.4 × 2.5 × 2.3 in) |
|||||
| Package Includes | Thermal Imaging Rifle Scope
Mount USB Cable Lens Cloth Manual |
|||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
