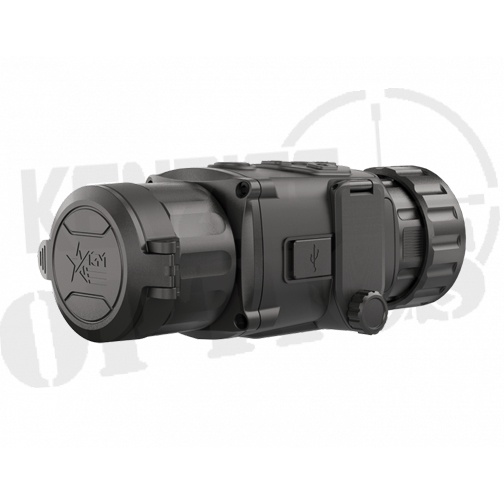

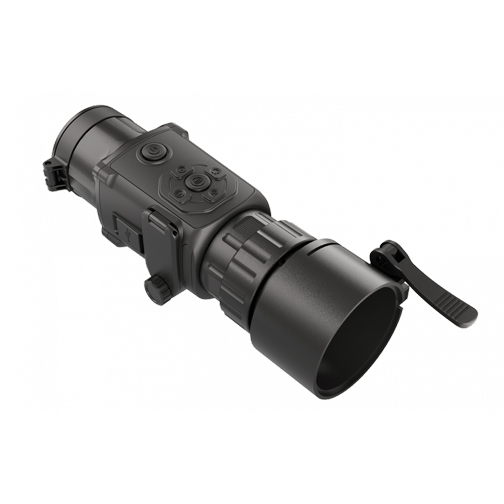

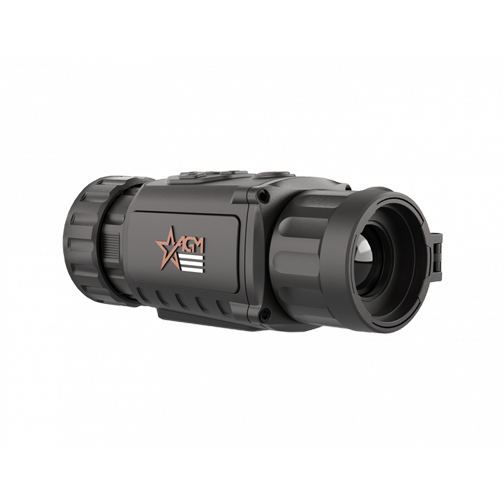

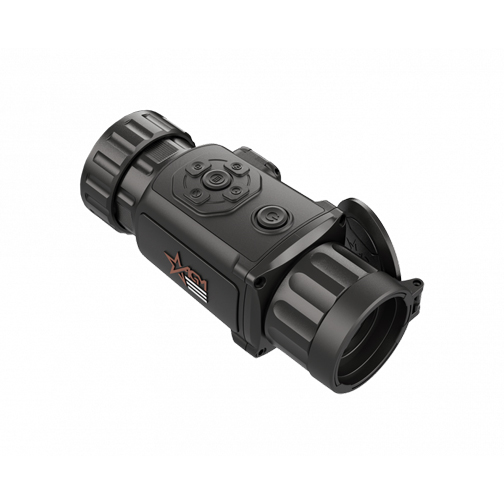

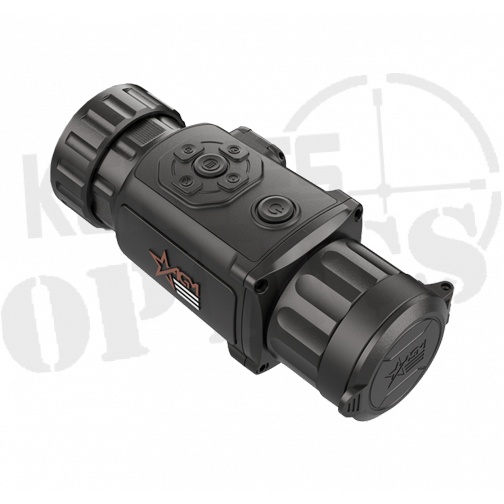

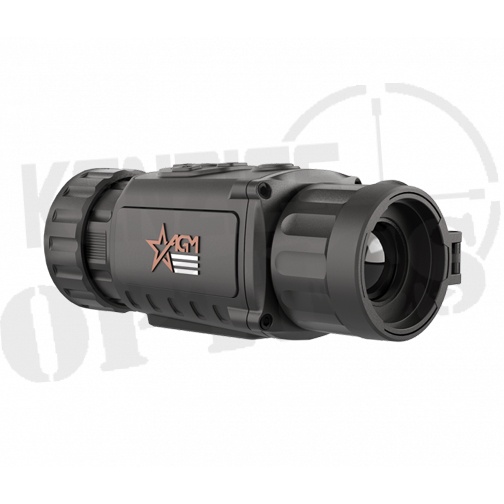

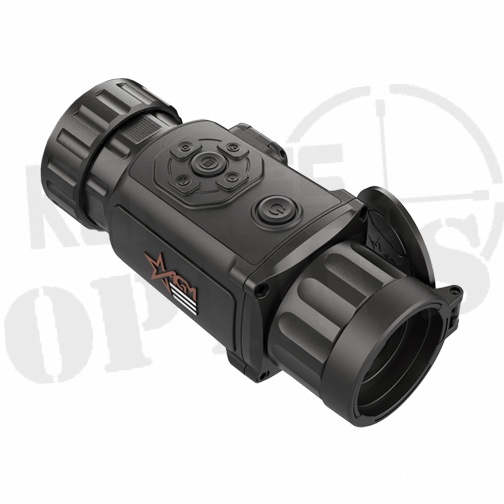

AGM Rattler TC19 256 Compact Thermal Imaging Clip On System
The AGM Rattler TC19 256 was designed to be a compact thermal imaging clip on system. It allows quick transformation on the day optics into thermal imaging device without any special tools or equipment. The Rattler TC19 features a high sensitivity 12μm thermal detector with 640×512 resolution and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke. dust, rain, etc. It is mainly applied to scenarios such as patrolling and hunting, and can be attached in front of rifle scopes with magnification up to 6x for short range use.
AGM Rattler TC19 256 Features
Quick conversion of daytime optics into thermal imaging scope
12μm high sensitivity detector
256×192 thermal resolution
1024×768 resolution 0.39-inch OLED display
8x digital zoom
Video recording and snapshot, built-in EMMC (16 GB)
Supports distance measurement
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
Limited 3-year warranty
Specifications |
||||||
| Palettes | Black Hot
White Hot Red Hot Fusion |
|||||
| Shock and vibration | 750 g/ms | |||||
| Exit Pupil Diameter | 22 mm | |||||
| Distance Measurement | Yes (Stadiometric Rangefinder) | |||||
| Scene Mode | Jungle, Recognition | |||||
| Observation Distance | 950 m | |||||
| Detector type | 12 μm VOx Uncooled Focal Plane Arrays | |||||
| Response Waveband | 8 μm to 14 μm | |||||
| FFC (Flat Field Correction) | Auto, Manual, External Correction | |||||
| Highest Temperature Spot Tracking | Yes | |||||
| Standby Mode | Yes | |||||
| Refresh rate | Sensor 25 Hz / OLED 50 Hz | |||||
| Resolution | 256 x 192 | |||||
| Lens system | 19 mm, F1.0 | |||||
| Optical magnification | 1x | |||||
| Power | 5 VDC/2 A, USB Type-C interface Supports external power supply | |||||
| Mounting | Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail | |||||
| Field of view (H × X) | 9.2° x 6.9° | |||||
| Monitor | 1024×768, 0.39 inch, OLED | |||||
| Storage | 16 GB EMMC | |||||
| Record Video | On-board video recording | |||||
| Capture Snapshot | Yes | |||||
| Battery Type | Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries | |||||
| CVBS Output | Yes (via USB) | |||||
| Battery Operating Time | Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on) | |||||
| Battery Capacity Display | Yes | |||||
| Operating Temperature Range | -20°C to 55°C (-4°F to 131°F) | |||||
| Overall Dimensions | 153 mm × 62 mm × 59 mm (6.0 × 2.4 × 2.3 in) | |||||
| Protection Level | IP67 | |||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
