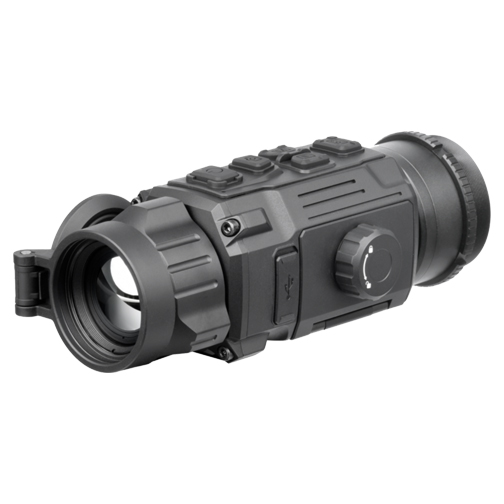

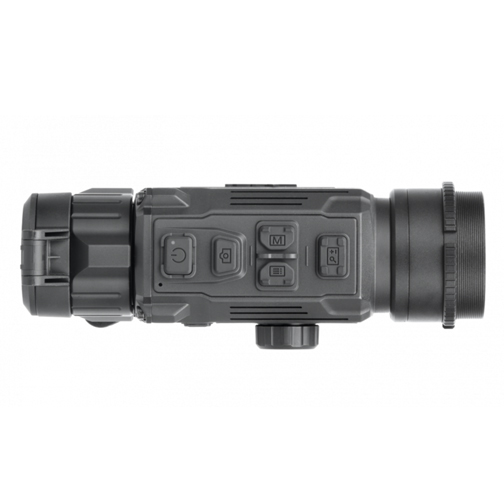

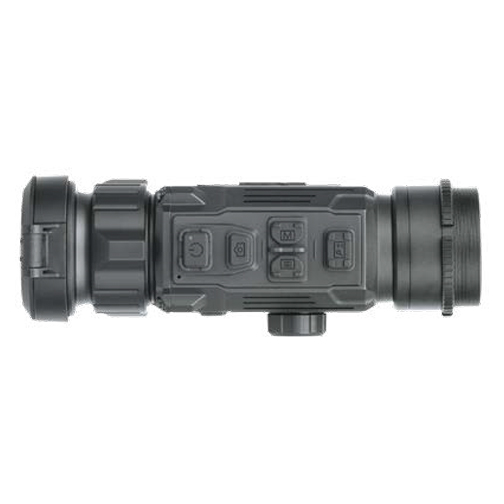

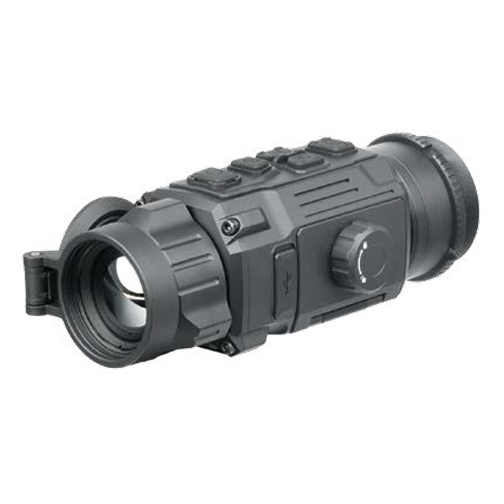

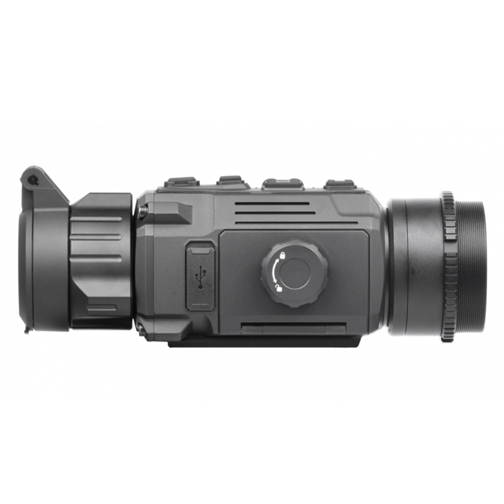

AGM Rattler-C V2 35-384 Thermal Imaging Clip-On System
The AGM Rattler-C V2 series of thermal clip-ons boasts a industry-leading 12 micron, sub-20mk thermal detectors. These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor with 384×288 or 640×512 resolutions, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.
The Rattler-C V2 clip-on The Rattler TC can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.
AGM Rattler-C V2 35-384 Features
Quick conversion of daytime optics into thermal imaging scope
12μm high-sensitivity thermal detector, NETD < 20mK
Fast 50Hz imaging
High resolution OLED display
Adjustable color palettes
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
9 – 11 hours battery life (depending on model)
External power supply compatibility
Waterproof & shockproof
5-year warranty
Included in the Box
Mount
Two Rechargeable Battery
Charger
USB Cable
Lens Cloth
Manual
Carrying Case
Specifications |
||||||
| Dimensions | 184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in) | |||||
| Flat Field Correction (FFC) | Auto, Manual, External Correction | |||||
| Palettes | Black hot, White hot, Red hot, Fusion | |||||
| Exit Pupil Diameter | 22 mm | |||||
| Distance Measurement | Yes (Stadiametric) | |||||
| Scene Mode | Cold, Warm | |||||
| Video Recording | Yes | |||||
| Audio Recording | Yes | |||||
| Detector type | 12μm VOx Uncooled Focal Plane Array | |||||
| Standby Mode | Yes | |||||
| Refresh rate | 50 Hz | |||||
| Resolution | 384 × 288 | |||||
| Detection Range (6′ object) | 1800 m/yd | |||||
| Lens system | 35 mm; F/1.0 | |||||
| NETD | Less than 20 mK (25°C, F# = 1.0) | |||||
| Optical magnification | 1× | |||||
| Field of view (H × X) | 7.5° × 5.6° | |||||
| Hot Track | Yes | |||||
| Eye relief | 10 mm | |||||
| Display | 0.39-inch, OLED, 1024×768 | |||||
| Storage | Built-in EMMC (16 GB) | |||||
| Capture Snapshot | Yes | |||||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | |||||
| Wi-Fi | Yes | |||||
| Battery Life (Operating) | 11 h (25°C, with hotspot off) | |||||
| External power supply | 5 VDC, 2 A, USB Type-C | |||||
| Operating Temperature Range | -30°C to +55°C (-22°F to 131°F) | |||||
| Weight | 0.54 kg (1.19 lb) | |||||
| Protection Level | IP67 | |||||
| Package Includes | Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case | |||||
| Focus Range | 2 m to infinity | |||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
