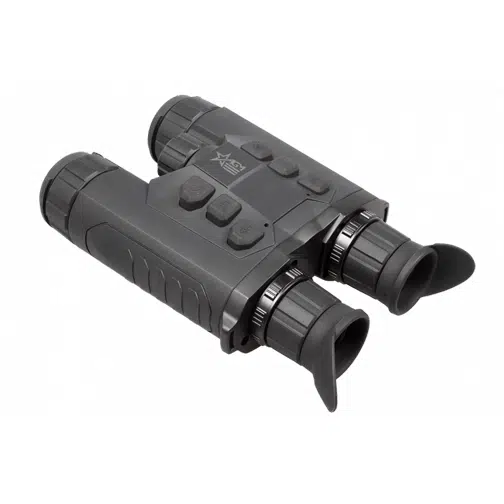

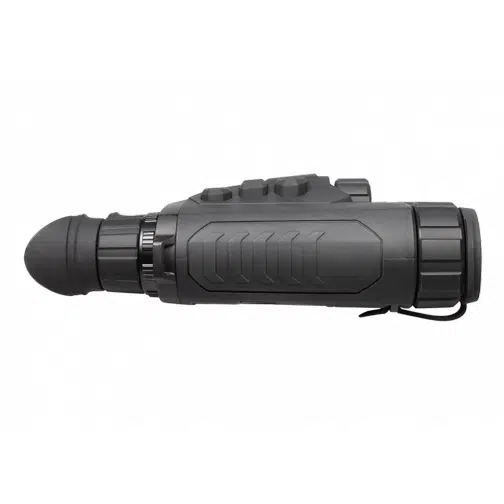

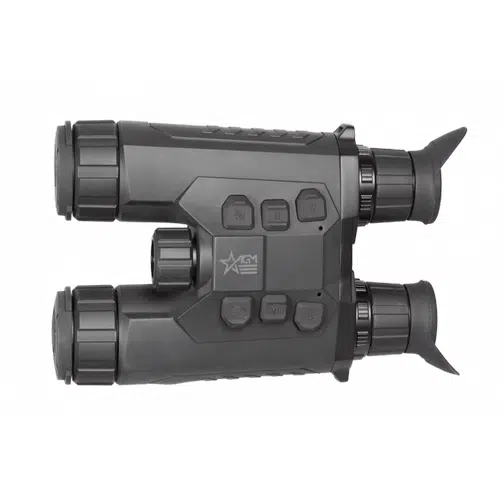

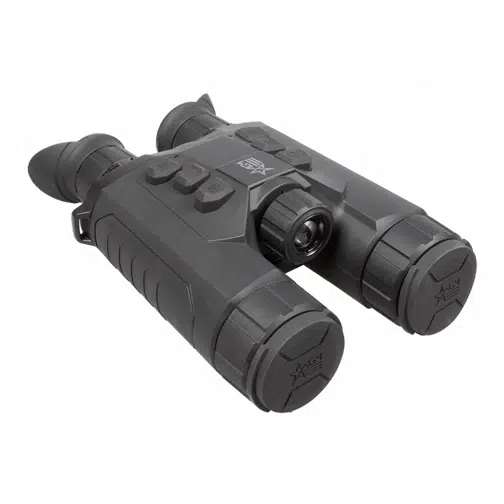

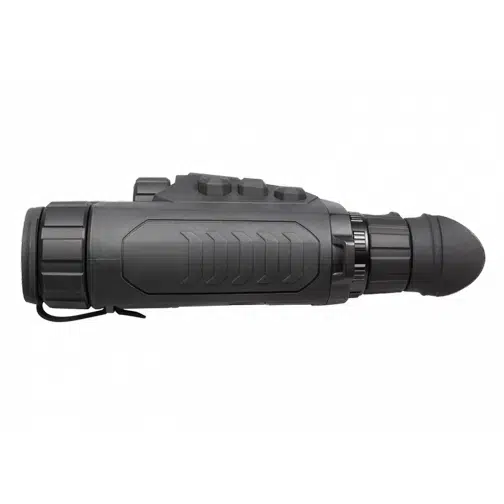

AGM ObservIR LRF 25-256 Thermal & Digital Day/Night Vision Binocular
The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind these binocular lies within the main thermal viewing channel, with its high-sensitivity 12 micron detector. Unlike other thermal binoculars on the market, the ObservIR LRF also come outfitted with a digital day/night channel as well, which is great for aiding in recognition of targets detected by the thermal channel. The built-in 1,000m laser rangefinder simply takes the ObservIR LRF to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.
The ObservIR LRF monoculars also come packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: high sensitivity thermal detector, 25mm Germanium lens with a 1.0 aperture, 3840×2160 ultra-low light CMOS sensor, various viewing modes, multiple color palettes, up to 4X digital zoom, picture-in picture mode, built-in laser rangefinder, GPS module, long-range IR illuminator, up to 8 hours of battery life on removable, rechargeable 18650 batteries, USB Type-C port for external power capabilities, IP67 waterproof rating. The package includes four 18650 batteries, wrist strap and charger
AGM ObservIR LRF 25-256 Features
12μm high-sensitivity thermal sensor
256×192 thermal resolution
1x, 2x, 4x digital zoom
Dual-spectrum thermal and digital day/night system
Digital image processing technology
Ultra-low illumination optical channel
3840×2160 optical resolution
Built-in IR illuminator
Eye-safe 1,000 m laser rangefinder
1920×1080 resolution, 0.49-inch OLED display
Digital Magnetic Compass
Built-in GPS module
Video/audio recording and snapshot capture
Built-in 64 GB EMMC storage
Wi-Fi hotspot
Standby mode
8-hour continuous operation on a single charge
Auto screen-off function to saving energy
External power supply capability
Rugged housing with rubber overmolding
Waterproof and dustproof
Package Includes
4x 18650 Rechargeable Battery
Battery Charger
USB Cable
Power Adapter
Tripod Adapter
Quick Start Guide
User Manual
Lens Cloth
Neck Strap
Specifications |
||||||
| Interpupillary Distance | 60 mm to 74 mm | |||||
| Resolution | 256 × 192 | |||||
| Infrared Illuminator | Built-in 850nm Smart IR.Power and beam angle adjustment. | |||||
| Dimensions | 221×142×71 mm
(8.7×5.6×2.8 in) |
|||||
| Working Temperature | -20°C to 55°C
(-4°F to 131°F) |
|||||
| Distance Measurement | Laser Rangefinder: up to 1,000 m, ±1 m accuracy | |||||
| Video Recording | Yes | |||||
| Audio Recording | Yes | |||||
| Magnification | Thermal 4.5x – 18x Optical 5.5x – 22x | |||||
| Detector type | 12μm VOx Uncooled Focal Plane Array | |||||
| Standby Mode | Yes | |||||
| Refresh rate | 50 Hz | |||||
| Detection Range (6′ object) | 1,200 m | |||||
| Snapshot | Yes | |||||
| Lens system | Thermal 25 mm; F1.0 Optical 5.5x – 22x | |||||
| NETD | Less than 35 mK (25°C, F#=1.0) | |||||
| Power | 5 VDC/2 A, USB Type-C interface. Supports external power supply. | |||||
| Field of view (H × X) | Thermal 7.0° × 5.3° Optical 6.9° × 4.1° | |||||
| Digital zoom | 1x, 2x, 4x | |||||
| Diopter adjustment range | -5 to +3 dpt | |||||
| Monitor | 1920×1080, 0.49 inch, OLED, 50 FPS | |||||
| Display | Day, Night, Auto | |||||
| Storage | Built-in 64 GB EMMC | |||||
| Battery Type | Two 18650 rechargeable battery (removable) | |||||
| Wi-Fi | Yes | |||||
| Battery Life (Operating) | Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off) | |||||
| Weight | 0.89 kg
(1.96 Ib) |
|||||
| Protection Level | IP67
(Waterproof) |
|||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
