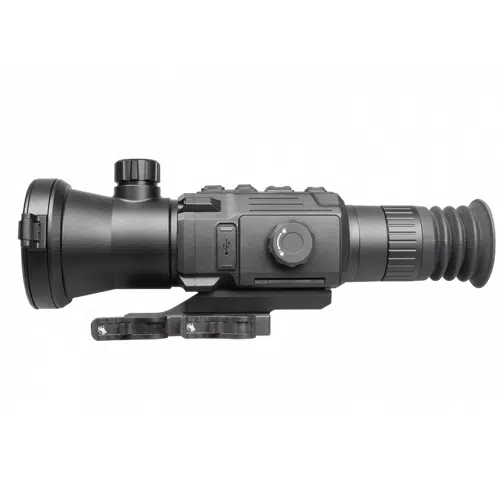

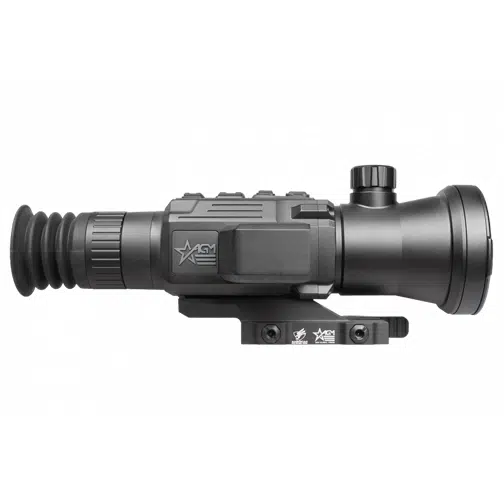

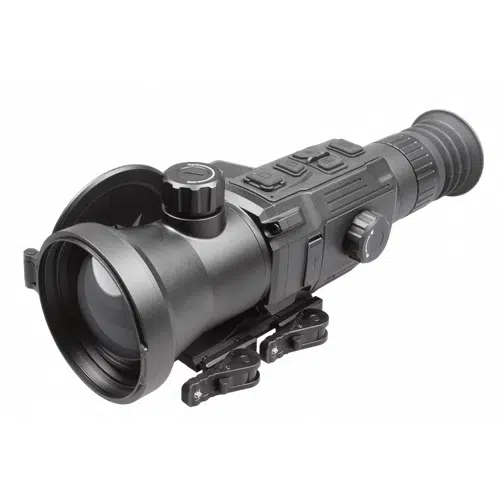

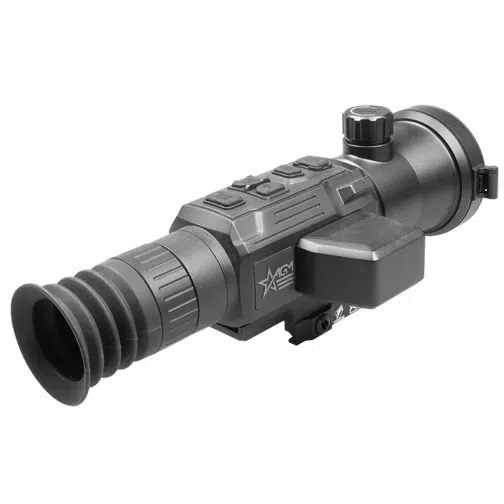

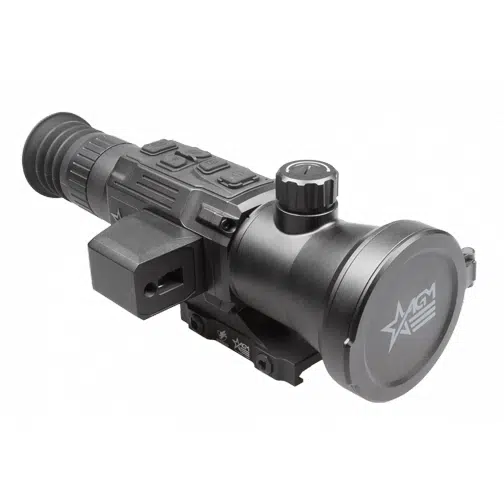

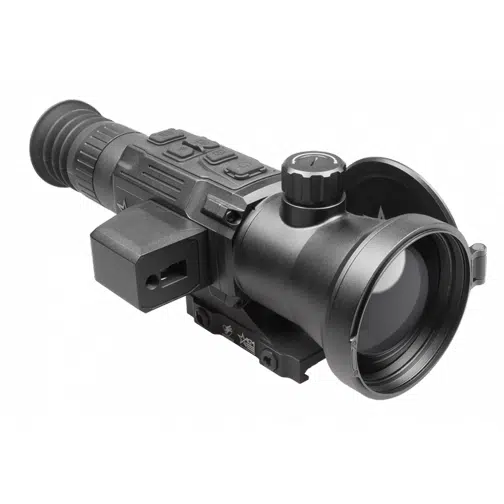

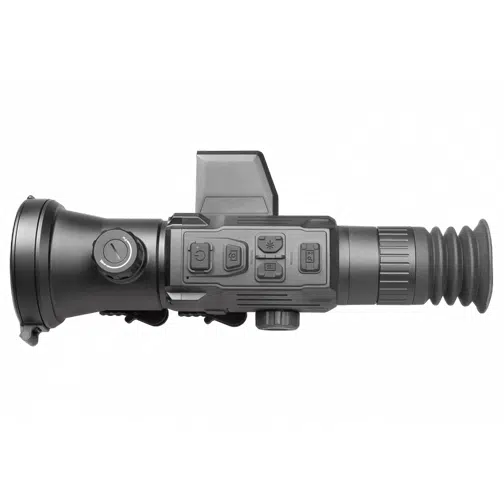

AGM Evolver LRF 1280×1024 Thermal Imaging Riflescope
The AGM Evolver LRF 1280×1024 is a thermal imaging riflescope that was designed to provide an unrivaled image quality in a compact housing. The Evolver is equipped with a 65mm Germanium lens and a 1280×1024 resolution sensor. Not only that, but it’s been paired with a fully integrated 1000m laser rangefinder and AGM’s on board ballistic calculator. The Evolver LRF’s eyepiece is designed to be very versatile with a 2.5x magnification, which can then be digitally zoomed up to 20x on the high end. This means hog hunters will enjoy a base magnification low enough for close range engagements, while predator hunters can comfortably zoom to 5x while still enjoying a crisp 640 resolution before zooming further.
AGM’s powerful imaging algorithm and semi circular display gives shooters a feeling of precision and sophistication. Large sturdy buttons were designed to aid gloved fingers in cold winter weather, while the removable rechargeable NE-4400 battery offers current and future AGM customers on of the most robust and easy to install battery systems on the market. And of course, a full firmware package has been incorporated to allow users an astonishing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm and cold viewing modes, multiple color palettes, manual focus, picture in picture, ballistic calculation, on-board video recording with sound, 1000y/m laser range finding, WiFi hotspot, multiple zeroing profiles, shot activated video recording, defective pixel repair, hotspot locator and multiple laser range finding modes. The Evolver LRF 1280 includes an American-made ADM mounting system.
AGM Evolver LRF Features
12 micron detector with 1280×1024 resolution
Sub-18mK thermal sesitivity
Built-in 1,000m laser rangefinder
Various reticle types and colors
Ballistic calculator
1x, 2x, 4x, 8x digital zoom
Large OLED display with 2560×2560 resolution
On-board video/audio recording and image capture
Shot Activated Recording (SAR) function
Built-in EMMC storage (64 GB)
Wi-Fi data transmission
Standby mode
More than 4 hours battery life
External power supply compatibility
Waterproof & shockproof
5-year warranty
Specifications |
||||||
| Shot-Activated Recording | Yes | |||||
| Max. Recoil | 1,000 g / 0.4 ms | |||||
| Frame Rate | 25 fps | |||||
| Ballistic calculator | Yes | |||||
| Palettes | Black Hot, White Hot, Red Hot, Fusion | |||||
| Dimensions | 270 × 115 × 88 mm (10.6 × 4.5 × 3.4 in) | |||||
| Exit Pupil Diameter | 6 mm | |||||
| Reticle | 10 types, 4 colors, on/off | |||||
| Boresight Adjustment | Digital Controlled | |||||
| Picture In Picture Mode (PIP) | Yes | |||||
| Video Recording | Yes (1280×1280) | |||||
| Defective Pixels Correction (DPC) | Yes | |||||
| Audio Recording | Yes | |||||
| Magnification | 2.5× – 20× | |||||
| Detector type | 12μm VOx Uncooled Focal Plane Array | |||||
| FFC (Flat Field Correction) | Auto, Semi-Auto, Manual | |||||
| Standby Mode | Yes | |||||
| Resolution | 1280 × 1024 | |||||
| Laser Rangefinder | Up to 1000 m, ±4 m accuracy | |||||
| Measuring Distance of Laser Rangefinder | 10 m | |||||
| Laser Wavelength | 905 nm | |||||
| Detection Range (6′ object) | 3,250 m | |||||
| Lens system | 65mm, F 1.0 | |||||
| NETD | Less than 18 mK (@25°C), F#=1.0 | |||||
| Field of view (H × X) | 13.5° × 10.8° | |||||
| Digital zoom | 1×, 2×, 4×, 8× | |||||
| Diopter adjustment range | -5 to +5 dpt | |||||
| Monitor | 2560 × 2560, 1.03 inch, OLED | |||||
| Hot Track | Yes | |||||
| Eye relief | 45 mm | |||||
| Storage | Yes | |||||
| Capture Snapshot | Yes (1280×1280) | |||||
| Battery Type | NA-4400 Replacable and Rechargeable Li-ion Battery (4,400 mAh) | |||||
| Battery Life (Operating) | 4 h (25 °C) | |||||
| External power supply | 5 VDC/2 A, USB Type-C | |||||
| Operating Temperature Range | -30°C to 55°C (-22°F to 131°F) | |||||
| Weight | 0.79 kg (1.75 lb) | |||||
| Protection Level | IP67 | |||||
Export Restrictions
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
